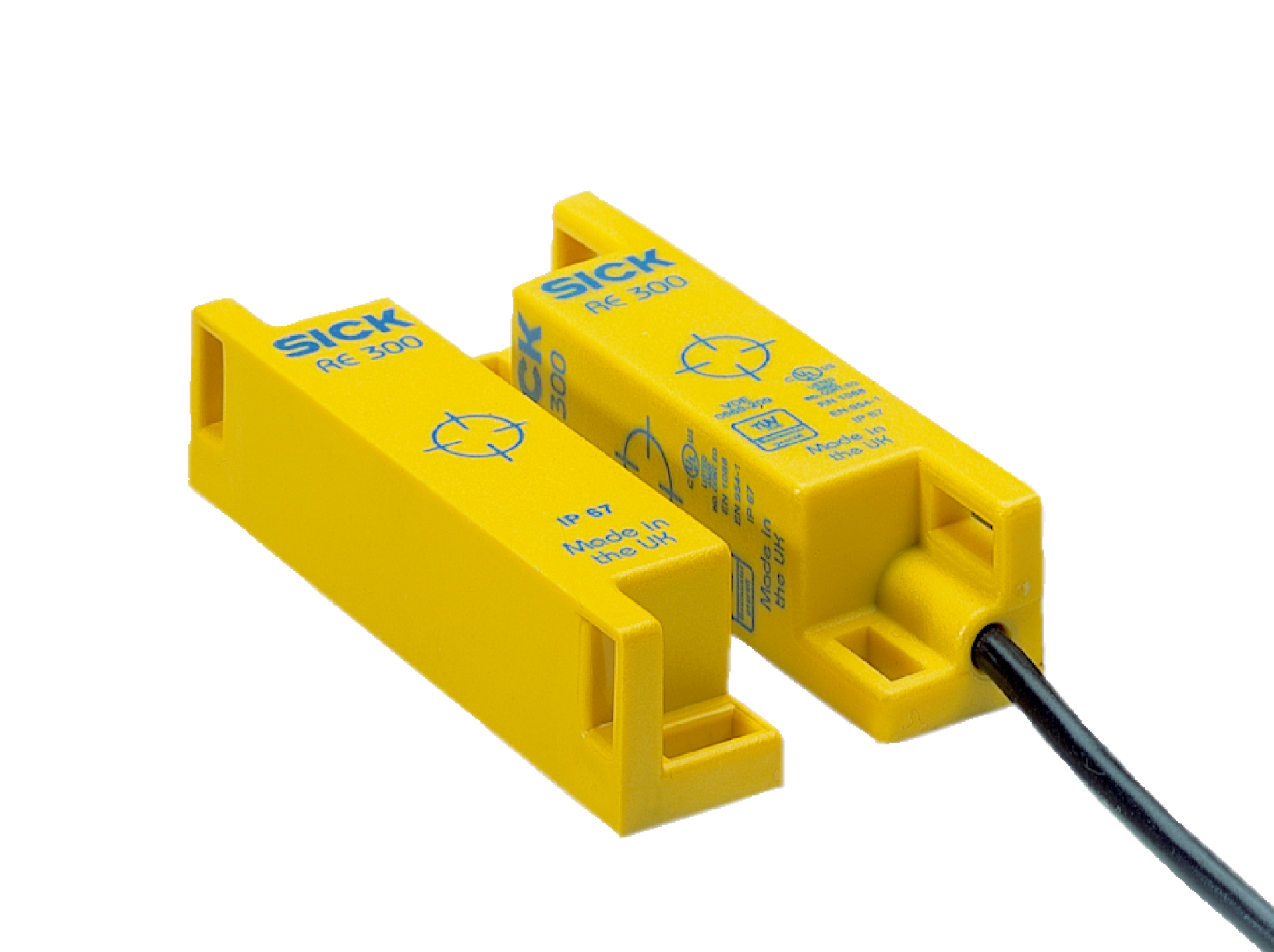

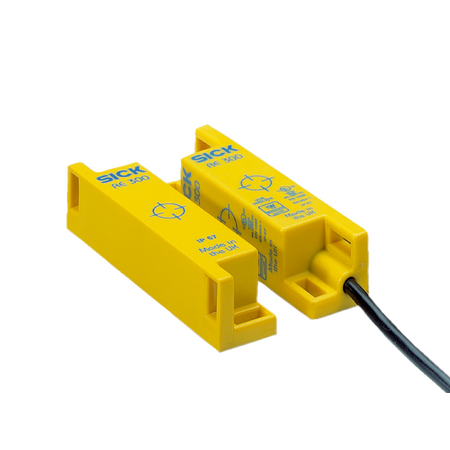

Magnetic Safety Sensor RE300-DA10P | IP67 Rated | 10m PVC Cable | by SICK
The Magnetic Safety Sensor RE300-DA10P features a robust actuator system with 1 Normally Open and 1 Normally Closed contact, ensuring reliable position detection in industrial automation. With an IP67 enclosure rating and a 10m PVC cable, this sensor is designed for high vibration and shock resistance, making it ideal for safety-related machine control systems and manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Safety Sensor, Reed Contact Sensor, Safety Position Sensor, RE300 DA10P Sensor
Technical Specifications
- Sensor principle: Magnetic
- System part: Sensor with actuator
- N/O contacts: 1
- N/C contacts: 1
- Assured switch on distance (Sao): 5 mm
- Assured switch off distance (Sar): 15 mm
- Active sensor surfaces: 2
- Actuation directions: 5
- B10d parameter: 2 x 10^7 switching cycles (small load)
- Type: Type 4 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Cable
- Cable length: 10 m
- Cable material: PVC
- Type of output: Reed contacts
- Switching voltage: ≤ 30 V DC
- Switching current: ≤ 30 mA
- Design: Rectangular
- Housing material: ABS
- Enclosure rating: IP67
- Ambient operating temperature: –10 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Vibration resistance: 10 Hz to 55 Hz, 0.35 mm (IEC 60068-2-6)
- Shock resistance: 30 g (IEC 60068-2-29)
- Dimensions (H x L x W): 82mm x 19mm x 19mm
- Weight: 0.322 kg
Key Features
- Magnetic sensor with actuator system part
- 1 Normally Open (N/O) and 1 Normally Closed (N/C) contact
- Assured switch on distance of 5 mm and switch off distance of 15 mm
- Two active sensor surfaces with 5 actuation directions
- Rectangular ABS housing with IP67 enclosure rating
- Cable connection with 10 m PVC cable
- Reed contact output type with switching voltage ≤ 30 V DC and current ≤ 30 mA
- High vibration and shock resistance (10 Hz to 55 Hz, 0.35 mm vibration; 30 g shock)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor wiring and compliance with safety standards.
Applications
- Industrial automation for position detection
- Safety-related machine control systems
- Magnetic sensing in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with efficient reed contact switching
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The SICK RE300-DA10P Magnetic Sensor with Actuator is available for immediate purchase, ideal for industrial safety and automation applications.
