Home/Electrical/Switchgear/Relays/Overload Relays/Magnetic Safety Switch 2NC SSR | IP69K Rated | LED Status | M12 Connector by NHP

Trade Discount 25%

Allen-Bradley 440N Magnetically Coded MC2 2NC SSR Safety Output 1PNP Aux LED 6In 8Pin Micro M12

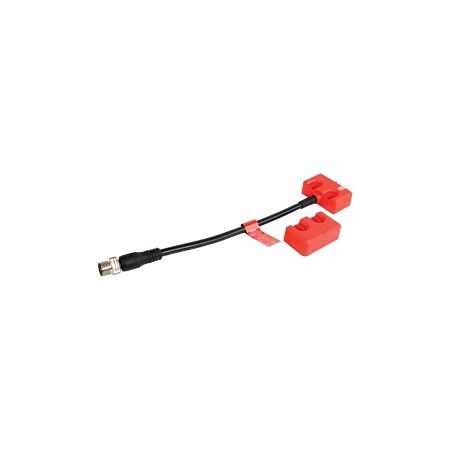

Magnetic Safety Switch 2NC SSR | IP69K Rated | LED Status | M12 Connector by NHP

BRAND: NHP

SKU: 440NZ21W1PH

$250.80 List price: $333.10

+ −

30 Days Return Delivery Options

Magnetic safety switch with 2NC SSR outputs and IP69K rating—ideal for industrial machine safety and automation. Built for enhanced safety, with LED status indication and durable M12 connector.

Description
Attachments

Product Name/Title: Allen-Bradley 440N Magnetically Coded MC2 2NC SSR Safety Output 1PNP Aux LED 6In 8Pin Micro M12

Brand: NHP

SKU: 440NZ21W1PH

Alternatively Known As: Magnetic Safety Switch, Non-contact Interlock Switch, Proximity Safety Switch

Technical Specifications

Type of Actuation: Magnet
Switching Distance: 10 mm
Number of Safety Outputs: 2
Type of Safety Output: PNP
Max Load Current: 0.2 A
Type of Electric Connection: Connector M12
Construction Type Housing: Cuboid
Material Housing: Plastic
Degree of Protection: IP69K
Ambient Temperature: -10-55 °C
Dimensions (H x L x W): 30mm x 100mm x 50mm
Weight: 0.3 kg

Key Features

Magnetically coded non-contact interlock switch for enhanced safety.
IP69K rated for high-pressure and high-temperature washdown environments.
Status indication for easy monitoring.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal safety and performance.

Applications

Industrial: Machine safety applications
Automation: Robotics and conveyor systems
General: Any application requiring non-contact safety interlocks

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Durable design reduces the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 440N Magnetically Coded MC2 Safety Output Switch is available now for immediate purchase. Ideal for industrial and automation applications, ensuring safety and reliability.

440NZ21W1PH-AU-Magnetically-Coded-Non-contact-Interlock-Switch-Datasheet.pdf (440NZ21W1PH-AU-Magnetically-Coded-Non-contact-Interlock-Switch-Datasheet.pdf, 168 Kb) [Download]
