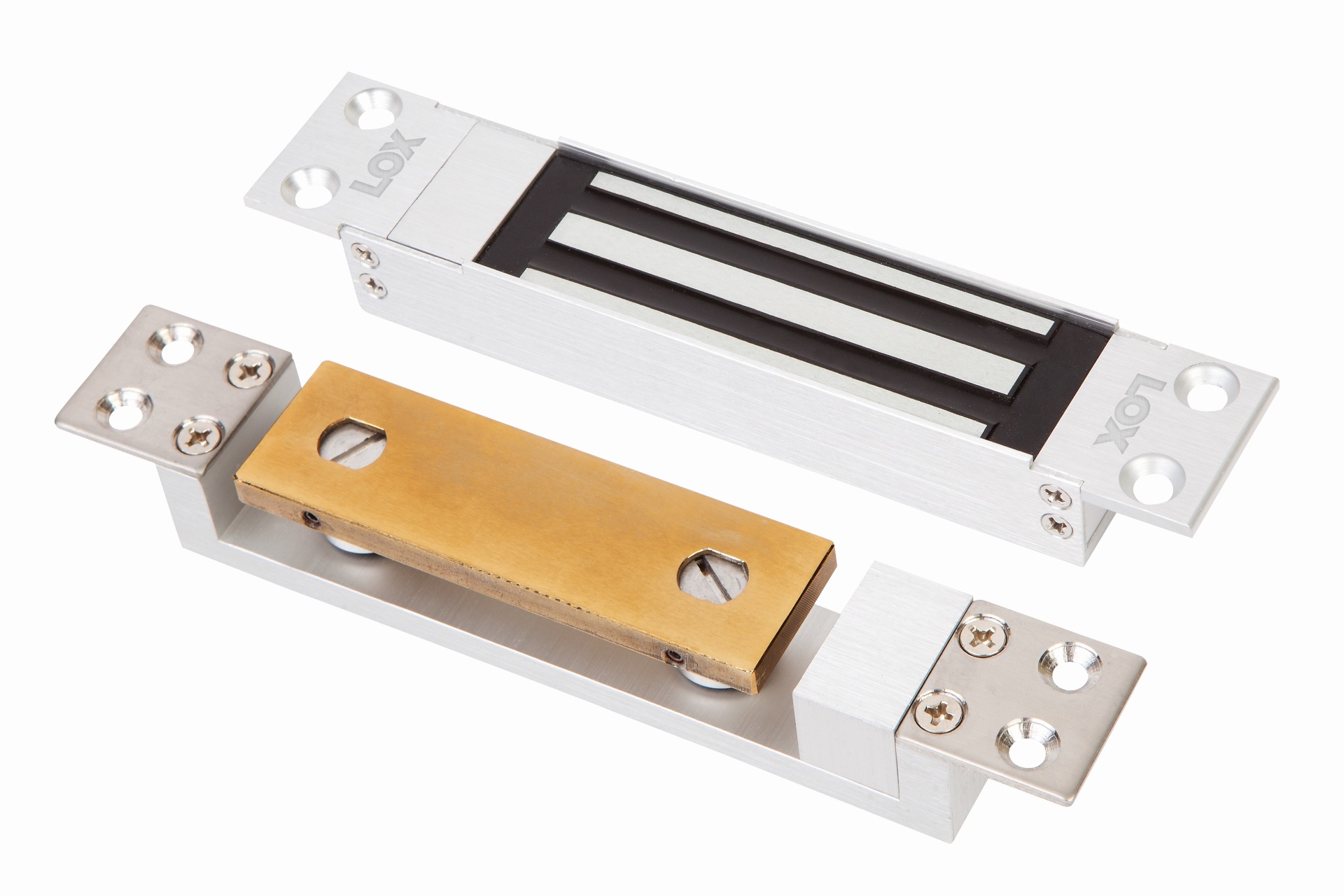

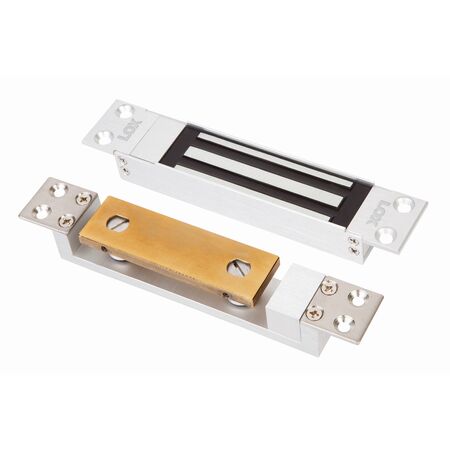

Magnetic Single Shear Lock | 250kg Holding Strength | 12-24VDC Operation | by LOX Locking

BRAND: LOX Locking
SKU: SH2500
$448.80 List price: $543.20
+ −
30 Days Return Delivery Options
The Magnetic Single Shear Lock offers a robust 250kg holding strength and operates on 12-24VDC, making it ideal for securing double action 180º swing doors. Designed for both commercial and residential applications, this lock ensures reliable access control with low power consumption and durable aluminum construction.

Product Name/Title: Magnetic Single Shear Lock | 250kg Holding Strength | 12-24VDC Operation | by LOX Locking

Brand: LOX Locking

SKU: SH2500

Alternatively Known As: Magnetic Shear Lock, Shear Force Door Lock, Electromagnetic Shear Lock

Technical Specifications
  • Voltage: 12-24VDC
  • Holding Strength: 250kg shear load
  • Lock Body Material: Aluminium
  • Designed for double action 180º swing through doors
  • Dimensions (H x L x W): 50mm x 50mm x 250mm
  • Weight: 2 kg
Key Features
  • Operates on shear alignment force rather than tensile force
  • Magnet pulls armature plate up by about 5mm to jam in lock body
  • Accepts voltages from 12 to 24VDC
  • Holding strength of up to 250kg shear load
Professional Installation Requirements
  • Professional installation by a qualified locksmith or security system installer is recommended to ensure proper alignment and secure mounting.
Applications
  • Security for double action 180º swing through doors
  • Commercial and residential door locking systems
  • Access control systems requiring shear force locking
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Low power consumption with efficient electromagnetic operation
  • Durable aluminium frame reduces need for frequent replacements
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The LOX SH2500 Magnetic Single Shear Lock 250kg is available now for immediate purchase. Ideal for commercial and residential door security applications.
