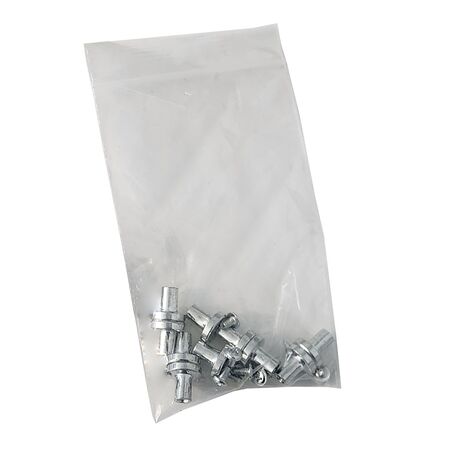

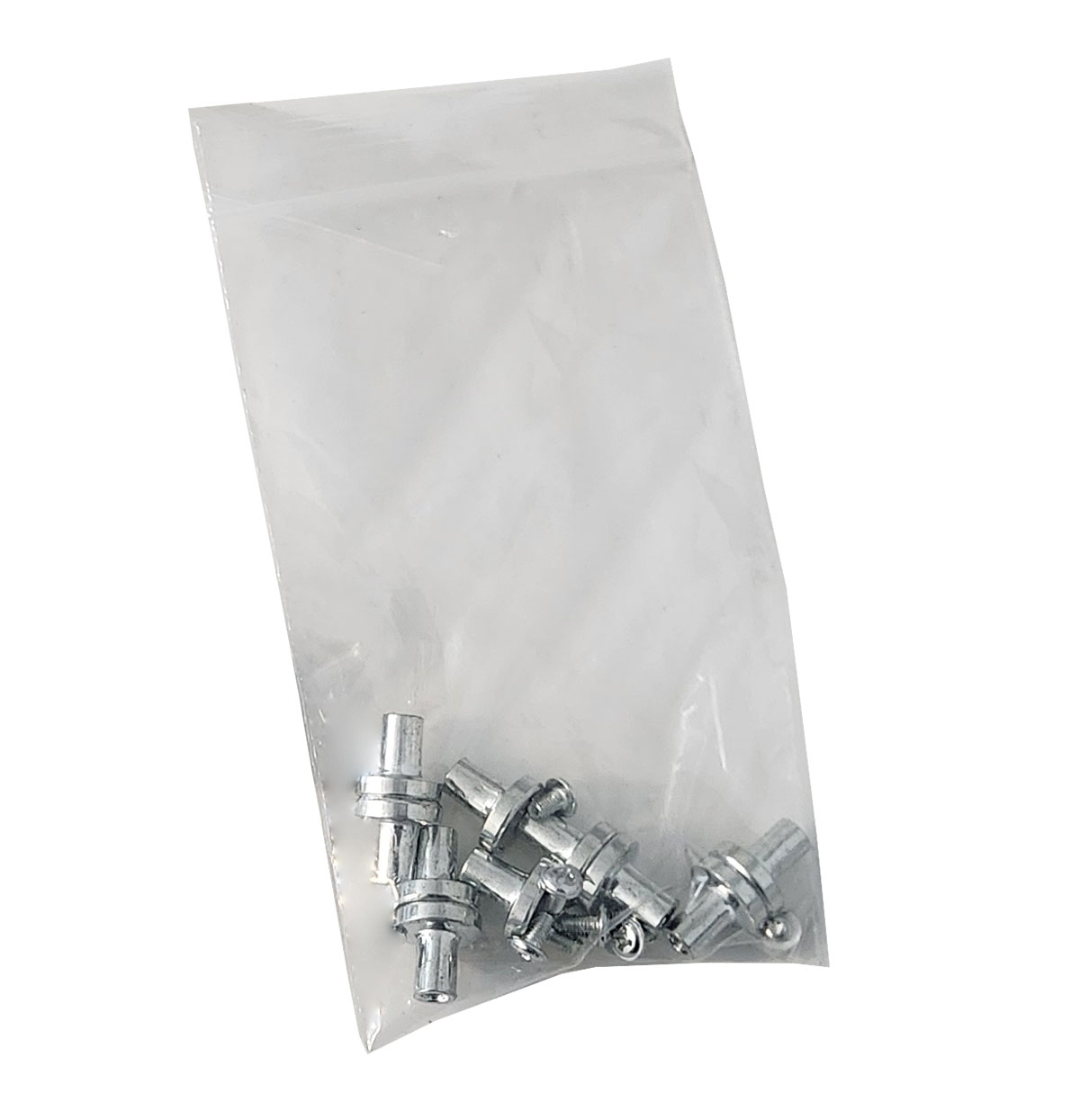

Magnetic Standoffs Pack of 10 Ness
Ness magnetic standoffs feature a pack of 10 magnetic PCB mounts. Ideal for mounting PCBs in alarm enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Stand-Offs, Magnetic PCB Mounts, Magnetic Circuit Board Standoffs, Ness 101-028-10
Technical Specifications
- Pack Quantity: 10 magnetic stand-off posts
- Stand-Off Height: 12 mm
- Magnet Diameter: 12 mm
- Fastener: M3 screws supplied
- Compatibility: PCBs with M3 or larger mounting holes
- Application: Retro-fitting circuit boards into metal housings
- Dimensions (H x L x W): 12mm x 12mm x 12mm
- Weight: 0.1 kg
Key Features
- Magnetic mounting avoids drilling the metal enclosure
- Suitable for Ness control panel PCBs and accessory boards
- Allows PCB positioning at almost any location within a compatible metal housing
- Supplied with M3 mounting screws
- Packaged as 10 magnetic stand-off posts
Professional Installation Requirements
- No specialist installation is required for the standoffs. Installation should be carried out with the alarm equipment isolated from power and in accordance with the equipment manufacturer's instructions.
Applications
- Mounting PCBs in Ness alarm enclosures
- Retrofitting circuit boards into metal control-panel housings
- Mounting alarm accessory boards with M3 or larger mounting holes
- Service and replacement work where existing enclosure standoffs are unavailable
Standards & Compliance
- No product-specific Australian/NZ conformity claim is stated by Ness. When used in an installed intruder alarm system, the surrounding system installation may be subject to AS/NZS 2201.1:2007; this passive mounting accessory does not itself constitute compliance. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-2201-1-2007-117334_saig_as_as_245553/?utm_source=openai))
Environmental Benefits
- Magnetic retrofit mounting can avoid drilling or modifying metal enclosures, reducing installation waste
- Reusable mounting hardware can support servicing and PCB replacement without replacing the enclosure
- Durable metal and polymer components may reduce the need for frequent replacement
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness and authorised Australian security-equipment distributors. The 10-pack variant is listed by Ness under SKU 101-028-10. ([ness.com.au](https://ness.com.au/85?utm_source=openai))
