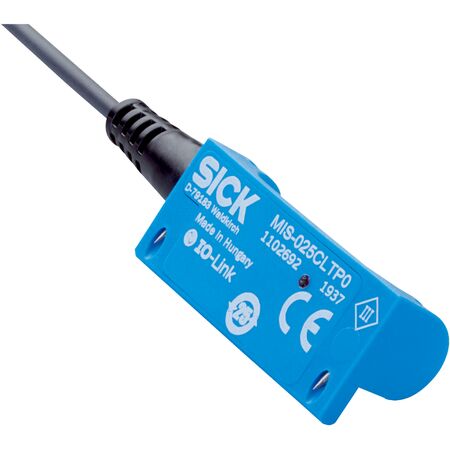

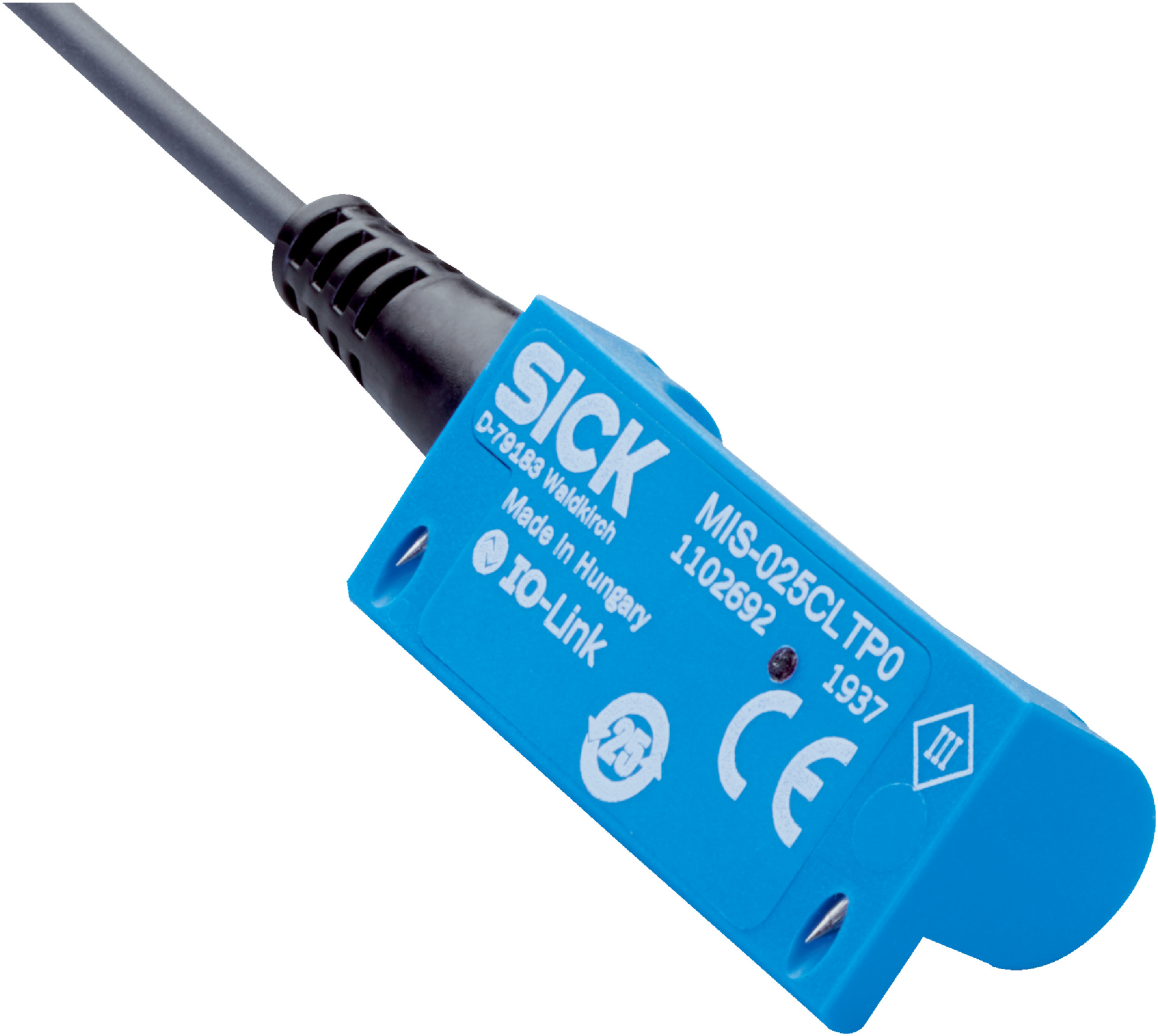

Magnetic Tag Reader | High Precision | IP67 Rated | IO-Link Enabled | by SICK
The Magnetic Tag Reader is designed for high precision in reading magnetic-coded tags, making it ideal for industrial automation applications. With a scanning range of 0 mm to 3 mm and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Equipped with IO-Link for easy parameterization and robust against vibration and shock, this sensor is perfect for position detection and identification in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Magnetic
- Scanning range: 0 mm to 3 mm
- Max radial displacement: ±3 mm
- Max axial displacement: Typ. 1 mm
- Max rotational deviation: ±10 mm (13°)
- Connection: 1 x Cable with M8 male connector, 4-pin, 0.3 m
- Supply voltage: 12 V DC to 30 V DC
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (IEC 61140:2016-1)
- Weight: 61 g
- Sampling rate: 6 ms
- Repeatability: ≤ 0.5 mm
- Number of different magnetic-coded tags: 15
- Overrun speed radial: ≤ 2 m/s
- Overrun speed axial: ≤ 0.2 m/s
- Optical indicators: 4 LEDs (ON, Tag detected, IO-Link operation, Output function)
- Ambient operating temperature: –20 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Vibration resistance: IEC 60068-2-6:2007
- Shock resistance: IEC 60068-2-27:2008
- Dimensions (H x L x W): 16.8mm x 40.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Reads magnetic-coded tags from SICK with high precision
- Scanning range from 0 mm to 3 mm with ±3 mm radial displacement tolerance
- IP67 rated enclosure for dust and water protection
- Supply voltage range from 12 V DC to 30 V DC
- Equipped with IO-Link for parameterization and tag number output
- 4 LED indicators for operational status and output function
- Robust against vibration and shock per IEC standards
- Wide ambient operating temperature from –20 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for reading magnetic-coded tags
- Position detection and identification in manufacturing processes
- Use in environments requiring robust magnetic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage from 12 V DC to 30 V DC
- Durable IP67 housing reduces need for frequent replacements
- Supports efficient industrial automation reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MIS-025CLTP0 Magnetic Coded Tag Reader Sensor is available for immediate purchase, ideal for industrial automation and precise magnetic tag detection applications.
