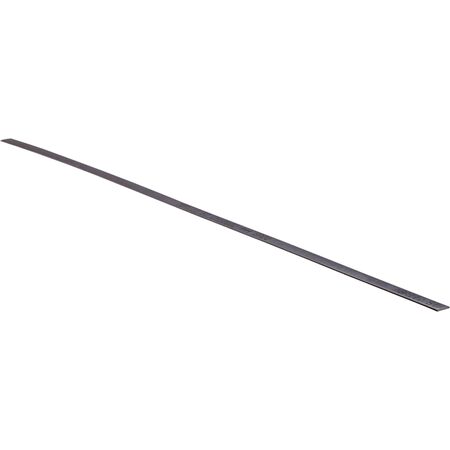

Magnetic Tape BTL70-08000 | 8.08m Length | Stainless Steel Substrate | -20°C to 100°C Operating Temp | by SICK
The BTL70-08000 Magnetic Tape is designed for industrial automation and precise magnetic sensing applications. With a length of 8.08 meters and a durable stainless steel substrate, it operates effectively in temperatures ranging from -20°C to 100°C. Ideal for environments requiring reliable magnetic solutions, this tape minimizes waste with its long-lasting materials and is compliant with AS/NZS 4801 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Tape BTL70-08000 | 8.08m Length | Stainless Steel Substrate | -20°C to 100°C Operating Temp | by SICK
Brand: SICK
SKU: 6078488
Alternatively Known As: Magnetic tape, Magnetic measuring tape, Industrial magnetic strip
Technical Specifications
- Magnetic tape material: 17410 hard ferrite 9/28 P
- Substrate tape material: stainless steel (spring steel)
- Covering tape: V2A
- Period length: 2 mm
- Operating temperature: –20 °C to 100 °C
- Storage temperature: –30 °C to 100 °C
- Temperature coefficient: (11 ± 1) μm/K/m
- Dimensions (H x L x W): 1mm x 8080mm x 10mm
- Weight: 0.5 kg
Key Features
- Magnetic tape length: 8.08 m
- Magnetic tape width: 10 mm
- Material: 17410 hard ferrite 9/28 P magnetic tape with stainless steel substrate
- Period length: 2 mm
- Operating temperature range: –20 °C to 100 °C
- Storage temperature range: –30 °C to 100 °C
- Temperature coefficient: (11 ± 1) μm/K/m
Professional Installation Requirements
- Installation by trained personnel is recommended to ensure proper handling and application of the magnetic tape for optimal performance.
Applications
- Industrial automation and positioning systems
- Magnetic sensing and measurement applications
- Use in environments requiring durable magnetic tape
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Long operating temperature range supports use in diverse environments, reducing environmental impact of specialized replacements.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The BTL70-08000 Magnetic Tape by SICK is available for immediate purchase, ideal for industrial and automation applications requiring precise magnetic sensing.
