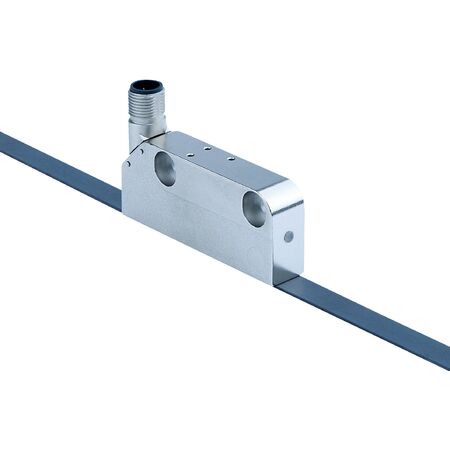

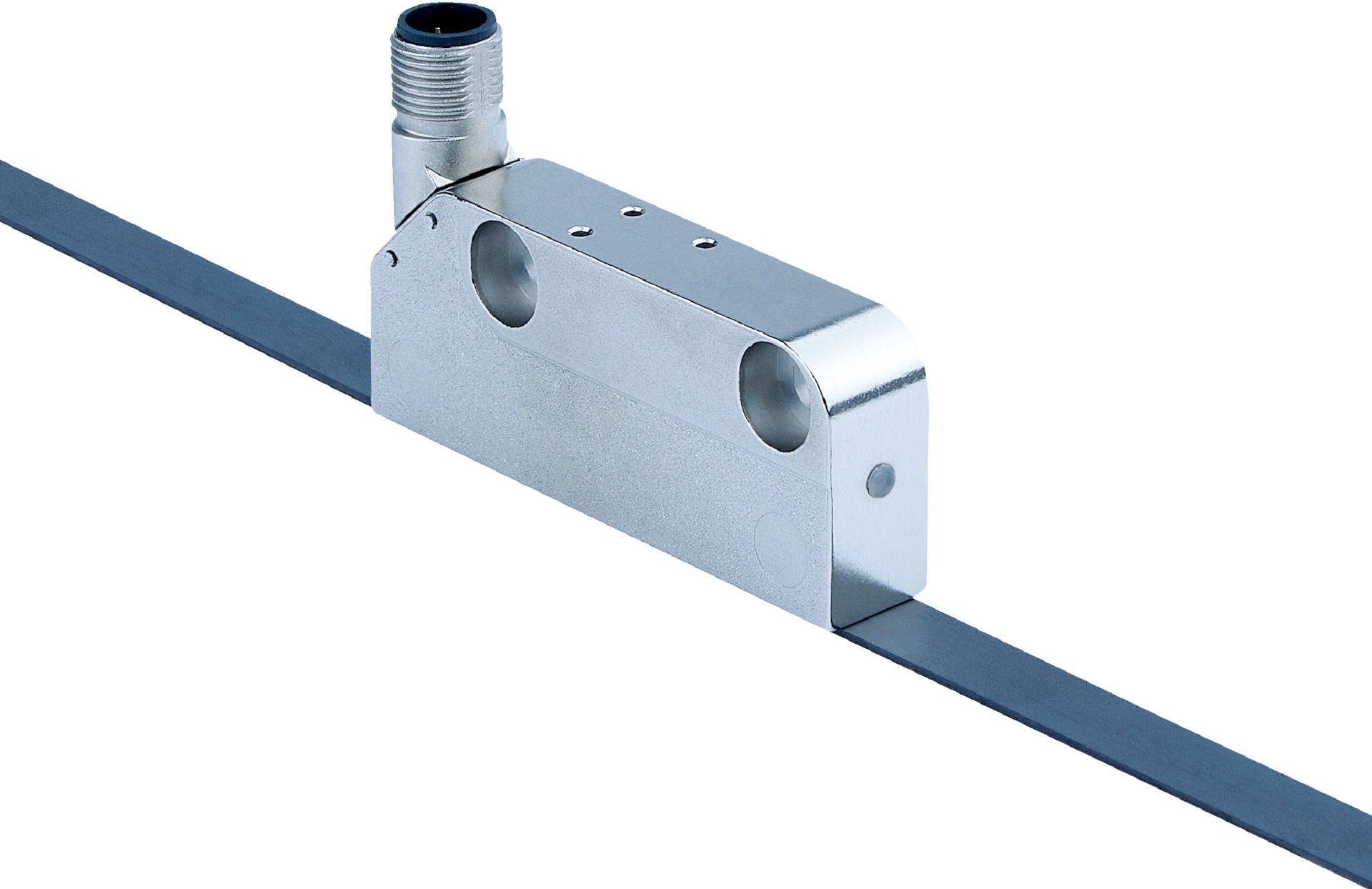

Magnetic Tape Position Sensor STL70-2HA8 | SIL 2 Compliance | IP65 Rated | High Precision | by SICK
The Magnetic Tape Position Sensor STL70-2HA8 is designed for industrial automation, offering a high measuring range of up to 16,384 mm with a repeatability of less than 1 µm. Ideal for safety-related applications requiring SIL 2 compliance, this robust sensor features an IP65 rated enclosure and operates effectively in temperatures from -30 °C to +85 °C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 16,384 mm
- Resolution: Interpolation of sine/cosine signals with 12 bit
- Length of period: 2 mm
- Traversing speed: Reliable up to 4.5 m/s, max 10 m/s at startup
- Repeatability: < 1 µm
- Max reading distance: 0.8 mm
- Supply voltage: 7 V DC to 12 V DC
- Current consumption: < 200 mA
- Connection type: Male connector, M12, 8-pin
- Enclosure rating: IP65 with mating plug inserted
- Operating temperature: -30 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Resistance to shocks: 500 m/s², 11 ms
- Resistance to vibration: 100 m/s², 10 Hz to 2000 Hz
- Dimensions (H x L x W): 20mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and Max. SIL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High measuring range up to 16,384 mm with 0.25 mm measuring step
- Repeatability less than 1 µm for high precision
- Robust zinc diecast read head material
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30 °C to +85 °C
- RGB LED status display for easy monitoring
- Communication via HIPERFACE® interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring SIL 2 and PL d compliance
- Machine tool positioning and control
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise control and monitoring to reduce waste and energy consumption in industrial processes
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK STL70-2HA8 Magnetic Tape Position Sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
