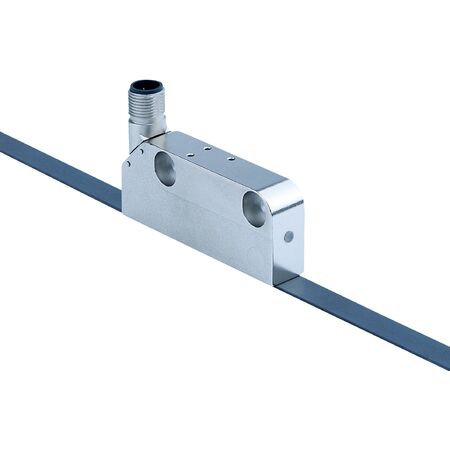

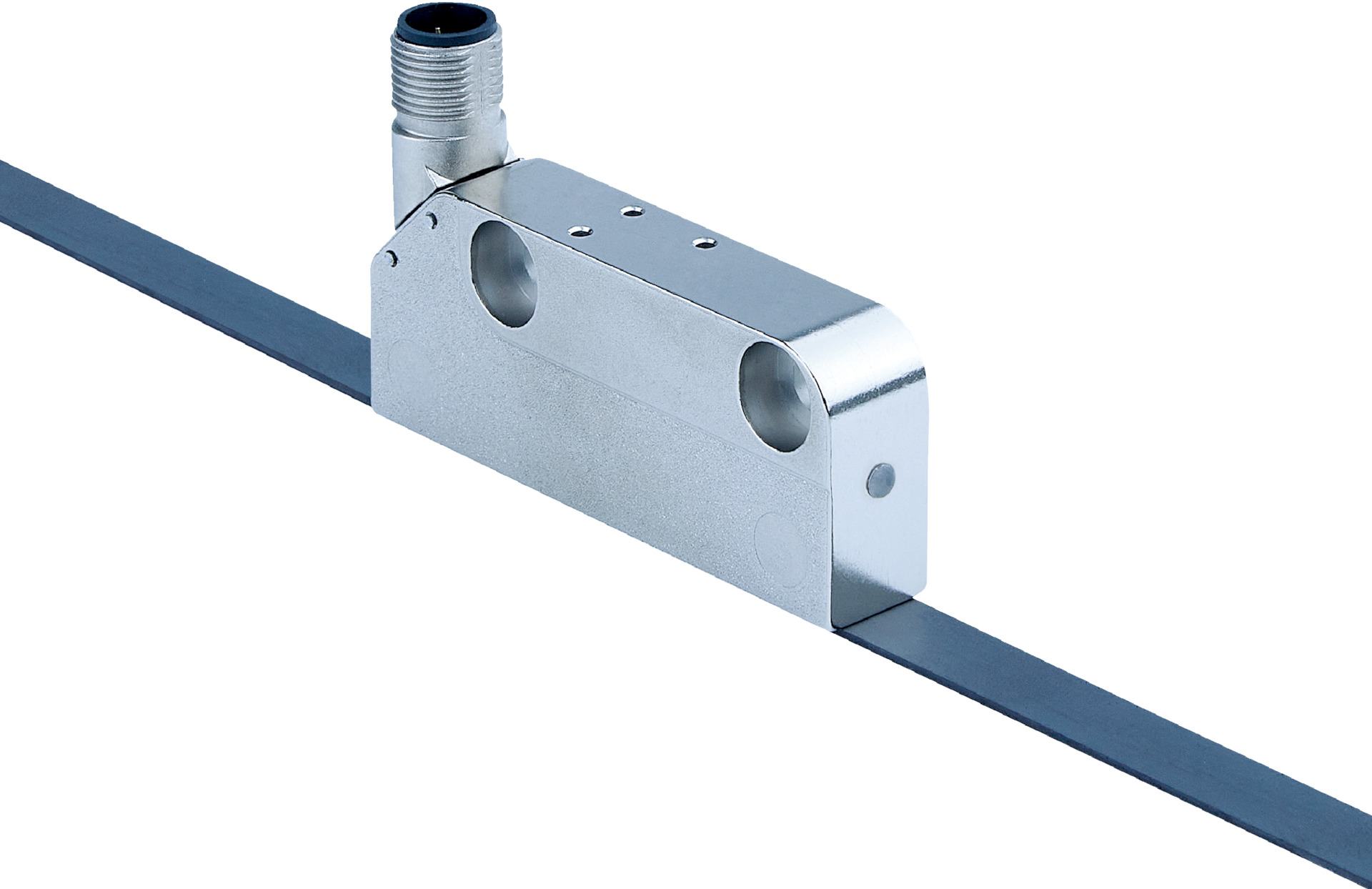

Magnetic Tape Read Head | 1 µm Resolution | IP67 Rated | 16,384 mm Measuring Range | by SICK
The Magnetic Tape Read Head ETL70-0KA4 offers high precision with a resolution of 1 µm and a measuring range of up to 16,384 mm. Designed for industrial automation, this robust sensor features an IP67 rated enclosure for protection against dust and water, making it ideal for machine tool positioning and robotics applications. With a repeatability of less than 1 µm and a HIPERFACE DSL communication interface, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 16,384 mm
- Resolution: 1 µm
- Length of period: 2 mm
- Traversing speed: 4.5 m/s reliable absolute position, max 10 m/s at startup
- Repeatability: < 1 µm
- Max reading distance: 0.8 mm
- Communication interface: HIPERFACE DSL
- Supply voltage: 7 V DC to 12 V DC
- Current consumption: < 200 mA
- Connection type: Male connector, M12, 4-pin
- Status display: RGB LED
- Read head material: Zinc diecast
- Enclosure rating: IP67 with mating plug inserted
- Operating temperature range: -30 °C to +85 °C
- Storage temperature range: -40 °C to +85 °C
- Permissible relative humidity: 100%, condensation permitted
- Shock resistance: 500 m/s², 11 ms
- Vibration resistance: 100 m/s², 10 Hz to 2000 Hz
- Dimensions (H x L x W): 20mm x 80mm x 40mm
- Weight: 0.3 kg
Key Features
- High resolution of 1 µm for precise measurement
- Measuring range up to 16,384 mm
- Repeatability less than 1 µm
- Robust zinc diecast read head material
- IP67 rated enclosure for protection against dust and water
- RGB LED status display for easy monitoring
- Supports HIPERFACE DSL communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning systems
- Robotics and conveyor systems requiring high-resolution feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low current consumption (<200 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ETL70-0KA4 Magnetic Tape Read Head is available for immediate purchase, ideal for industrial automation and precision measurement applications.
