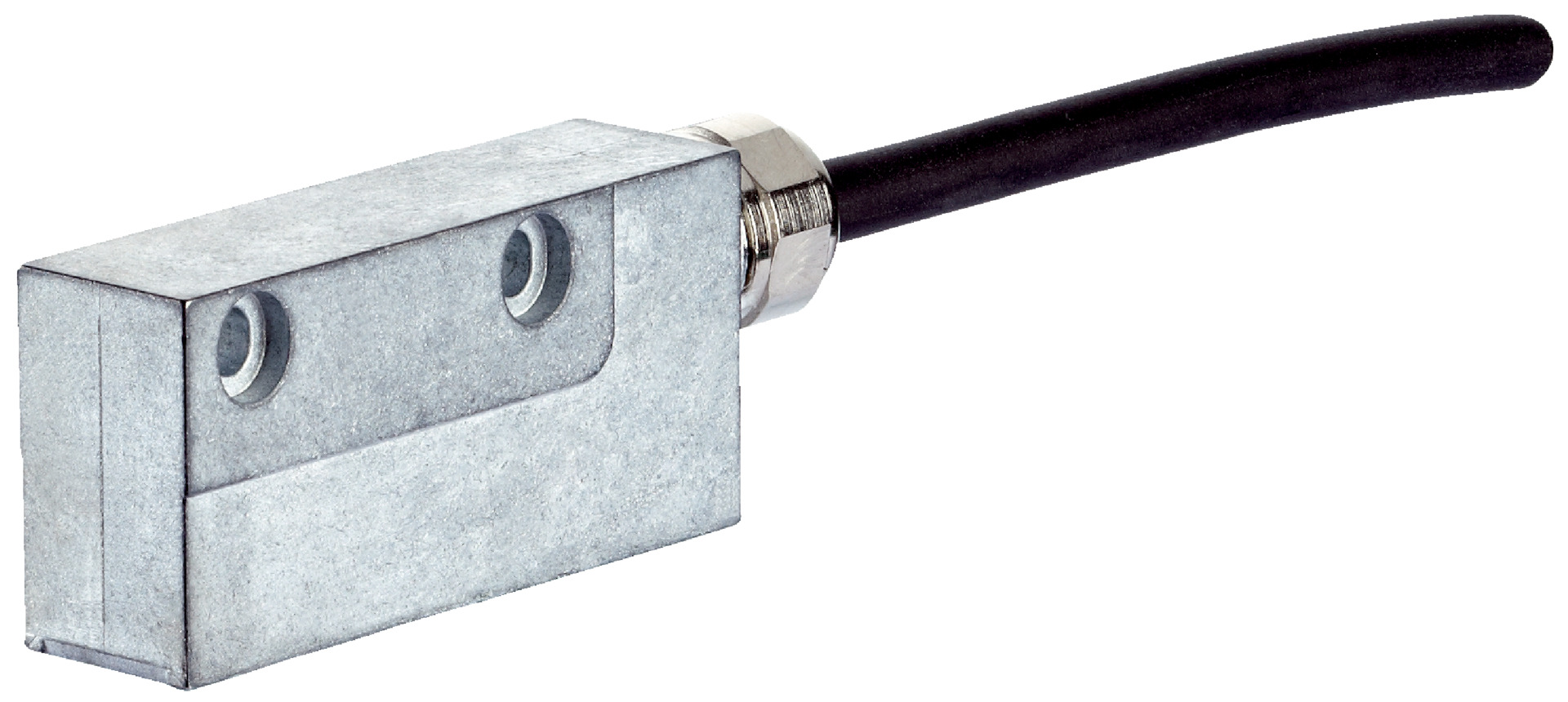

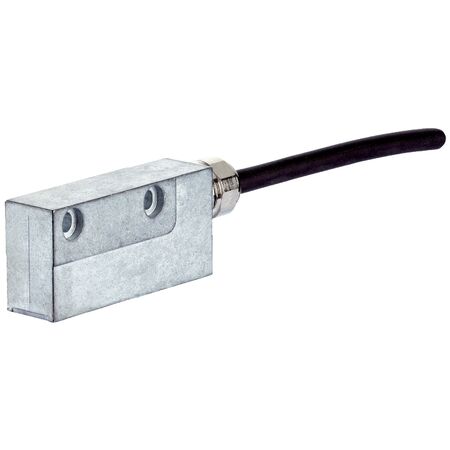

Magnetic Tape Read Head | 1 µm Resolution | IP67 Rated | Robust Zinc Diecast | by SICK
The Magnetic Tape Read Head TTK50-HXQ0-K02 offers high precision with a resolution of 1 µm and a measuring range of up to 940 mm. Ideal for industrial automation and robotics, it features an IP67 rated enclosure for protection against dust and water, ensuring reliable performance in harsh environments. With a repeatability of less than 5 µm and a robust design, this sensor is perfect for quality control systems and precise position measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring step: 0.244 µm for sine/cosine signal interpolation
- Measuring range: 0 mm to 940 mm
- Resolution: 1 µm
- Length of period: 1 mm
- Traversing speed: 1.3 m/s, up to 10 m/s dynamic operation
- Repeatability: < 5 µm
- System accuracy: ± 10 µm at 20°C
- Measured value backlash: < 10 µm
- Communication interface: HIPERFACE®
- Code type: Binary
- Available memory: 1,972 Byte EEPROM
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Operating current: ≤ 55 mA without load
- Connection type: 8-wire cable, 2 m length
- Enclosure rating: IP67 with mating plug inserted
- Operating temperature: -30°C to +80°C
- Storage temperature: -40°C to +85°C
- Permissible relative humidity: 100%, condensation permitted
- Shock resistance: 30 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- High resolution of 1 µm with measuring step of 0.244 µm
- Measuring range up to 940 mm
- Repeatability less than 5 µm
- System accuracy ±10 µm at 20°C
- Robust zinc diecast read head material
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +80°C
- Resistance to shocks up to 30 g and vibration up to 20 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration for accurate measurement.
Applications
- Industrial automation for precise position measurement
- Robotics and machinery requiring high accuracy linear measurement
- Quality control systems in manufacturing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with operating current ≤ 55 mA
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TTK50-HXQ0-K02 Magnetic Tape Read Head is available for immediate purchase, ideal for industrial automation and precision measurement applications.
