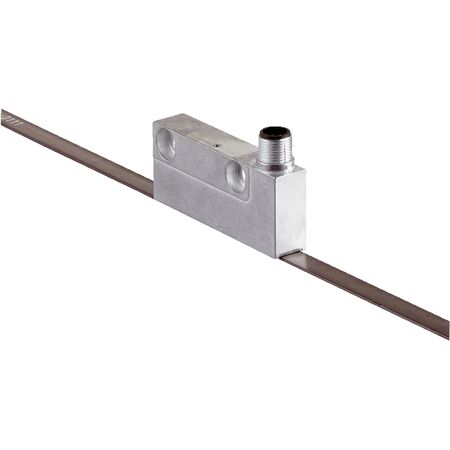

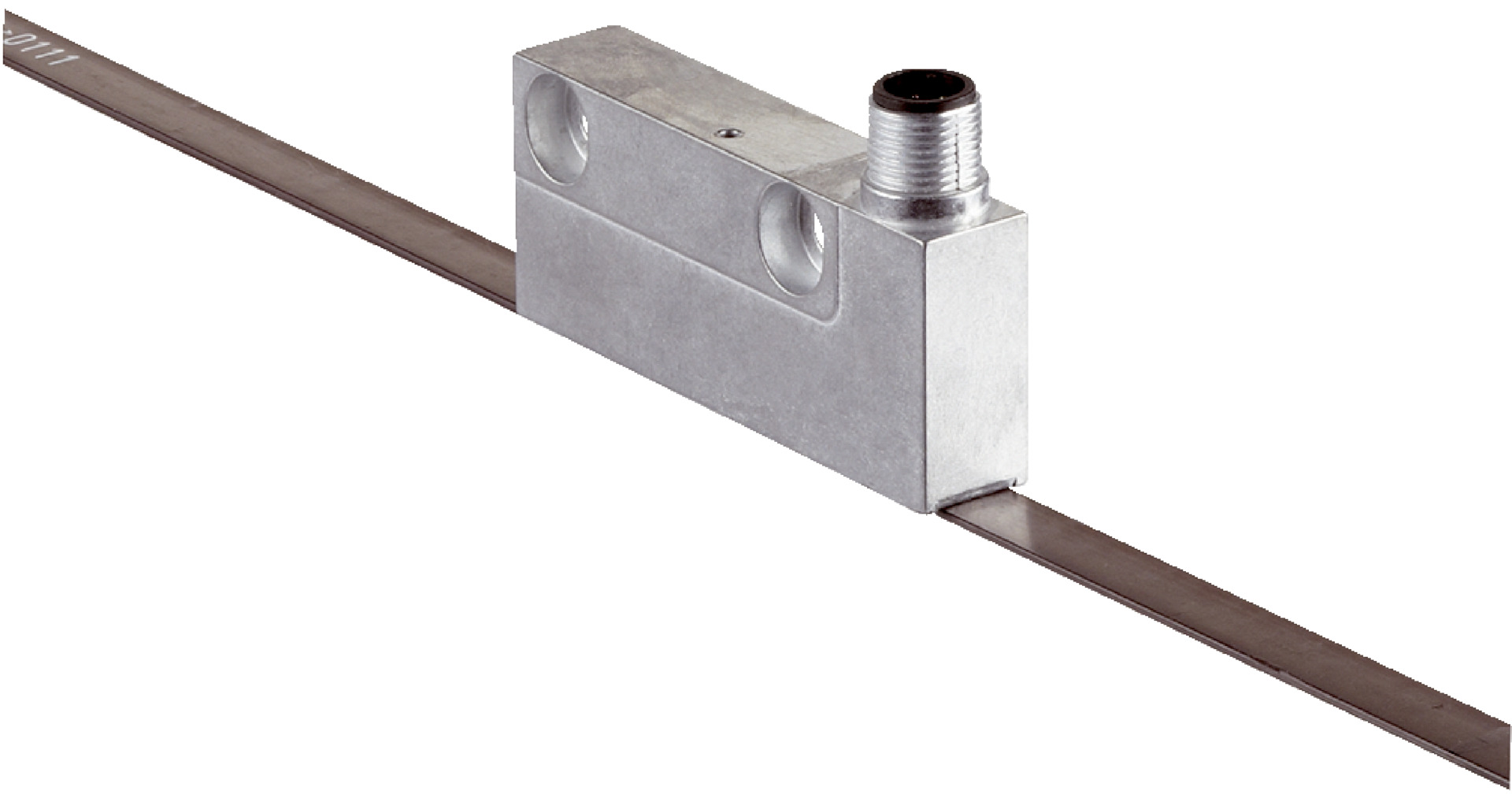

Magnetic Tape Read Head | 1 µm Resolution | IP67 Rated | Robust Zinc Diecast | by SICK
The Magnetic Tape Read Head offers a high resolution of 1 µm and a measuring range of up to 3,920 mm, making it ideal for industrial automation and precision measurement applications. Built for reliability, it features an IP67 rated enclosure for protection against dust and water, ensuring optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Tape Read Head | 1 µm Resolution | IP67 Rated | Robust Zinc Diecast | by SICK
Brand: SICK
SKU: 1037434
Alternatively Known As: Magnetic Tape Read Head, Magnetic Encoder Read Head, SICK TTK70 Sensor, Industrial Position Sensor
Technical Specifications
- Measuring step: 0.244 µm for sine/cosine signal interpolation
- Measuring range: 0 mm to 3,920 mm
- Resolution: 1 µm
- Length of period: 1 mm
- Traversing speed: 1.3 m/s, up to 10 m/s dynamic operation
- Repeatability: < 5 µm
- System accuracy: ± 10 µm at 20 °C
- Measured value backlash: < 10 µm
- Communication interface: HIPERFACE®
- Code type: Binary
- Available memory area: 1,792 Byte (EEPROM 2048)
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Operating current: ≤ 65 mA (without load)
- Connection type: Male connector, M12, 8-pin
- Read head material: Zinc diecast
- Enclosure rating: IP67 with mating plug inserted
- Operating temperature range: -30 °C to +80 °C
- Storage temperature range: -40 °C to +85 °C
- Permissible relative humidity: 100%, condensation permitted
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 15mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- High resolution of 1 µm with measuring step of 0.244 µm
- Measuring range up to 3,920 mm
- Repeatability less than 5 µm
- System accuracy ±10 µm at 20 °C
- Robust zinc diecast read head material
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -30 °C to +80 °C
- Resistance to shocks up to 30 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation and positioning systems
- Precision measurement and control in manufacturing
- Robotics and motion control applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (≤ 65 mA)
- Complies with China-RoHS and EU environmental regulations
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK TTK70-HXA0-K02 Magnetic Tape Read Head is available for immediate purchase, ideal for industrial automation and precision measurement applications.
