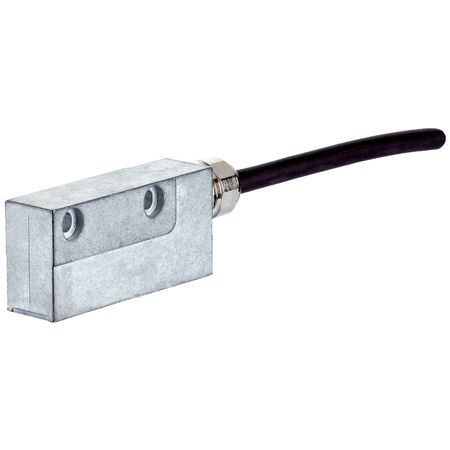

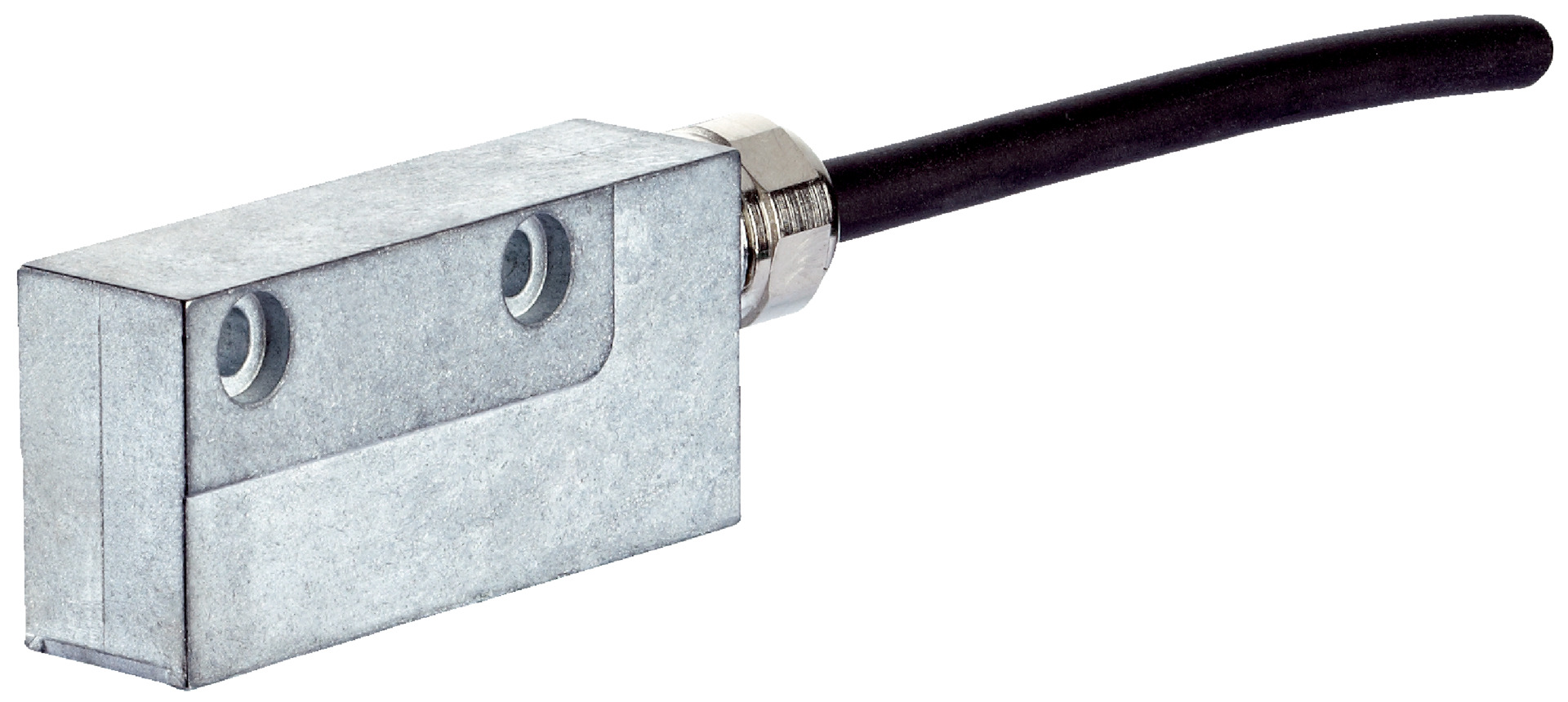

Magnetic Tape Read Head | 1 µm Resolution | IP67 Rated | Robust Zinc Diecast | by SICK
The Magnetic Tape Read Head offers high precision with a 1 µm resolution and a measuring range of up to 940 mm, making it ideal for industrial automation and machine tool positioning. Built for reliability, it features an IP67 rated enclosure for protection against dust and water, ensuring optimal performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring step: 0.244 µm
- Measuring range: 0 mm to 940 mm
- Resolution: 1 µm
- Length of period: 1 mm
- Traversing speed: 1.3 m/s, up to 10 m/s dynamic operation
- Repeatability: < 5 µm
- System accuracy: ± 10 µm at 20°C
- Measured value backlash: < 10 µm
- Communication interface: HIPERFACE®
- Code type: Binary
- Available memory: 1,972 Byte EEPROM
- Supply voltage: 7 V DC to 12 V DC
- Recommended supply voltage: 8 V DC
- Operating current: ≤ 55 mA (without load)
- Connection type: Cable, 8-wire, 0.5 m
- Read head material: Zinc diecast
- Enclosure rating: IP67 with mating plug inserted
- Operating temperature range: -30°C to +80°C
- Storage temperature range: -40°C to +85°C
- Permissible relative humidity: 100%, condensation permitted
- Shock resistance: 30 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 15mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- High resolution of 1 µm with measuring step of 0.244 µm
- Measuring range up to 940 mm
- Repeatability less than 5 µm
- System accuracy ±10 µm at 20°C
- Robust zinc diecast read head material
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +80°C
- Resistance to shocks up to 30 g and vibration up to 20 g
- Communication via HIPERFACE® interface
- Binary code type with 1,972 Byte EEPROM memory
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with HIPERFACE® interface and electrical safety standards to ensure accurate positioning and compliance with IP67 protection.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and motion control systems
- High-precision linear measurement applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with supply voltage between 7 V DC and 12 V DC
- High reliability reduces downtime and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TTK50-HXJ0-K02 Magnetic Tape Read Head is available for immediate purchase, ideal for industrial automation and precision measurement applications.
