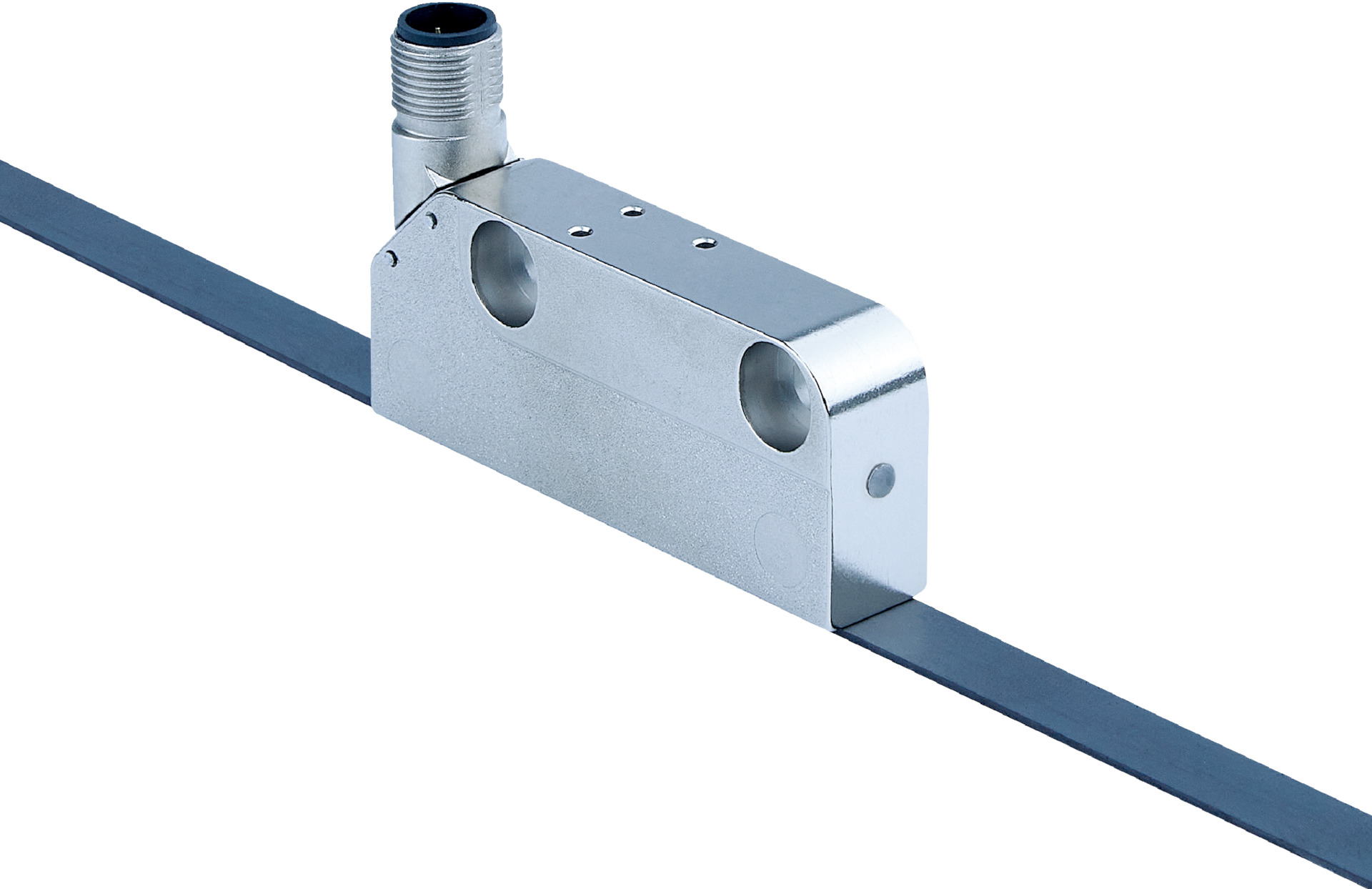

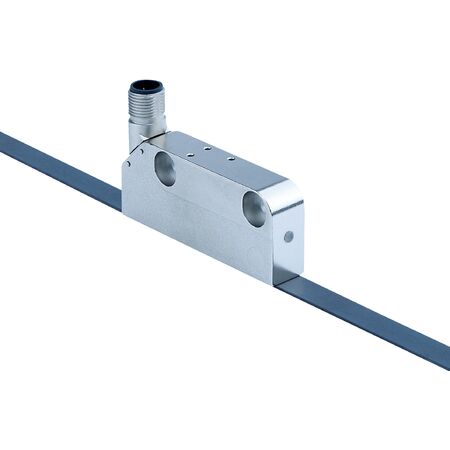

Magnetic Tape Read Head | Measuring Range 0-16,384 mm | 0.448 µm Resolution | IP67 Rated | by SICK
The Magnetic Tape Read Head STL70-0HA8 is designed for precise position measurement in industrial automation, featuring a measuring range of up to 16,384 mm and a high resolution of 0.448 µm. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for machine tool positioning and robotics applications, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 mm to 16,384 mm
- Resolution: 0.448 µm with 12-bit interpolation
- Length of period: 2 mm
- Traversing speed: 4.5 m/s reliable absolute position, max 10 m/s at startup
- Repeatability: < 1 µm
- Max reading distance: 0.8 mm
- Supply voltage: 7 V DC to 12 V DC
- Current consumption: < 200 mA
- Connection type: Male M12, 8-pin universal connector
- Status display: RGB LED
- Enclosure rating: IP67 with mating plug
- Operating temperature: -30 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Resistance to shocks: 500 m/s², 11 ms
- Resistance to vibration: 100 m/s², 10 Hz to 2000 Hz
- Dimensions (H x L x W): 20mm x 80mm x 40mm
- Weight: 0.3 kg
Key Features
- Measuring range up to 16,384 mm
- High resolution of 0.448 µm with sine/cosine signal interpolation
- Repeatability less than 1 µm
- Maximum reading distance of 0.8 mm
- Robust zinc diecast read head material
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -30 °C to +85 °C
- RGB LED status display
- Communication via HIPERFACE® interface
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration of the HIPERFACE interface and to maintain IP67 protection.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning systems
- Robotics and motion control
- High-precision linear measurement tasks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption under 200 mA
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK STL70-0HA8 Magnetic Tape Read Head is available for immediate purchase, ideal for industrial automation and precision measurement applications.
