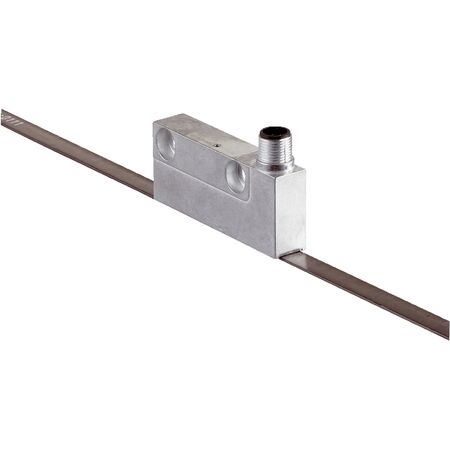

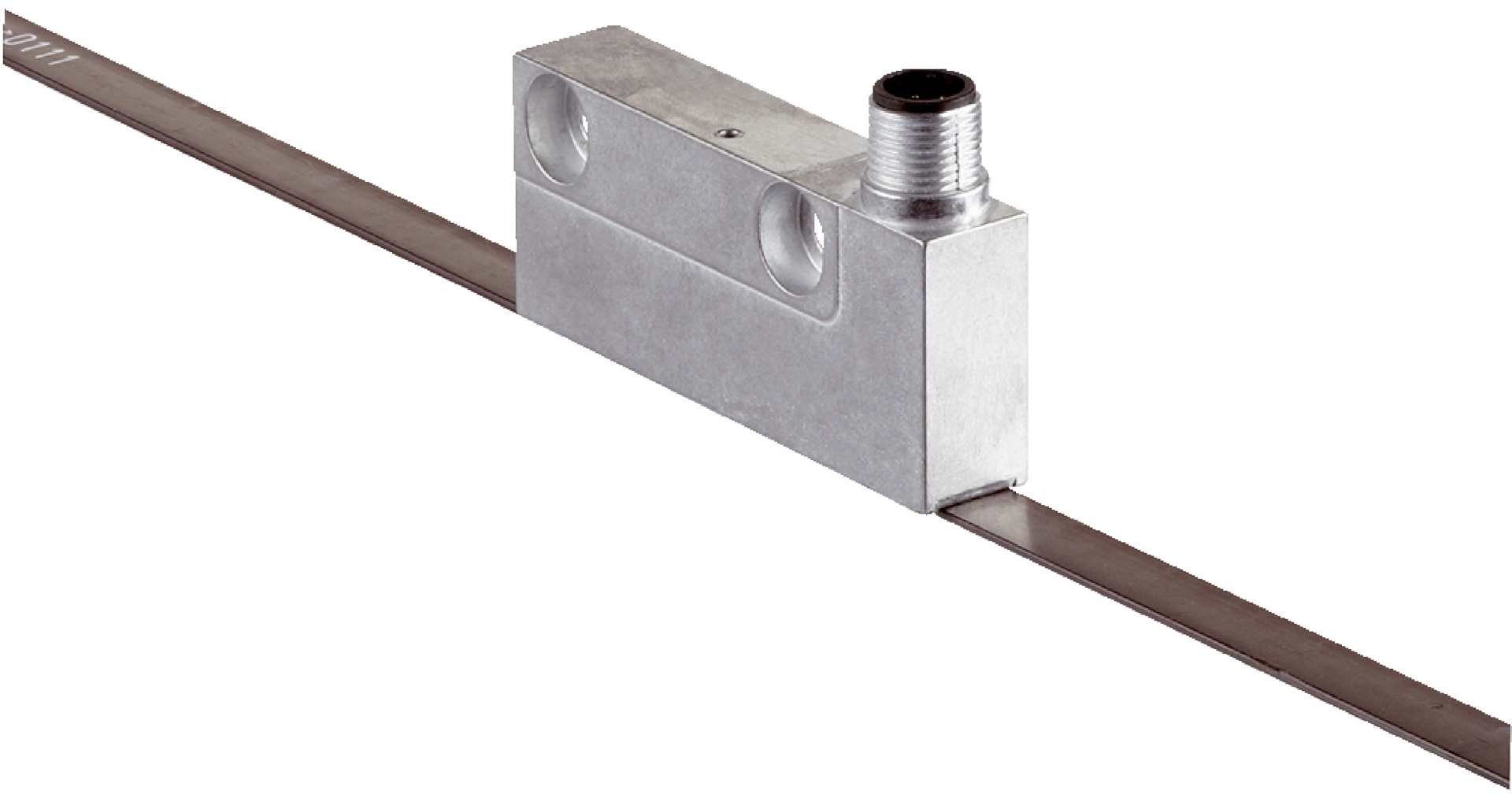

Magnetic Tape Read Head TTK70-AXA0-K02 | 3920 mm Measuring Range | 1 µm Resolution | IP67 Rated | by SICK
The Magnetic Tape Read Head TTK70-AXA0-K02 is designed for precise position measurement in industrial automation, featuring a measuring range of up to 3,920 mm and a resolution of 1 µm. With an IP67 rated enclosure for dust and water protection, this robust sensor is perfect for machine tool positioning, robotics, and quality control applications, ensuring high repeatability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Tape Read Head TTK70-AXA0-K02 | 3920 mm Measuring Range | 1 µm Resolution | IP67 Rated | by SICK
Brand: SICK
SKU: 1038033
Alternatively Known As: Magnetic Tape Read Head, Magnetic Encoder Sensor, Position Sensor, SSI Magnetic Read Head
Technical Specifications
- Measuring range: 0 mm to 3,920 mm
- Resolution: 1 µm
- Length of period: 1 mm
- Traversing speed: < 10 m/s, < 2 m/s dynamic operation (Sin/Cos), static operation (SSI)
- Repeatability: ≤ ± 2 µm
- Communication interface: SSI, 24 Bit, gray Sin/Cos 1.0 V PP
- Supply voltage: 4.5 V to 30 V
- Operating current: 55 mA (without load)
- Power consumption: ≤ 1.2 W
- Connection type: Male connector, M12, 12-pin
- Enclosure rating: IP67 with mating plug inserted
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +85 °C
- Permissible relative humidity: 100%, condensation permitted
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 20mm x 80mm x 40mm
- Weight: 0.1 kg
Key Features
- Measuring range up to 3,920 mm with 1 µm resolution
- High repeatability of ≤ ± 2 µm
- Robust zinc diecast read head material
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from –30 °C to +85 °C
- Resistance to shocks up to 30 g and vibration up to 20 g
- Communication via SSI interface with 24 Bit gray Sin/Cos output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Machine tool positioning
- Robotics and conveyor systems
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 1.2 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK TTK70-AXA0-K02 Magnetic Tape Read Head is available for immediate purchase, ideal for industrial automation and precision measurement applications.
