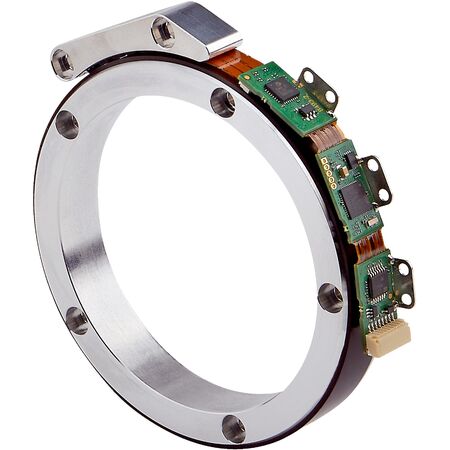

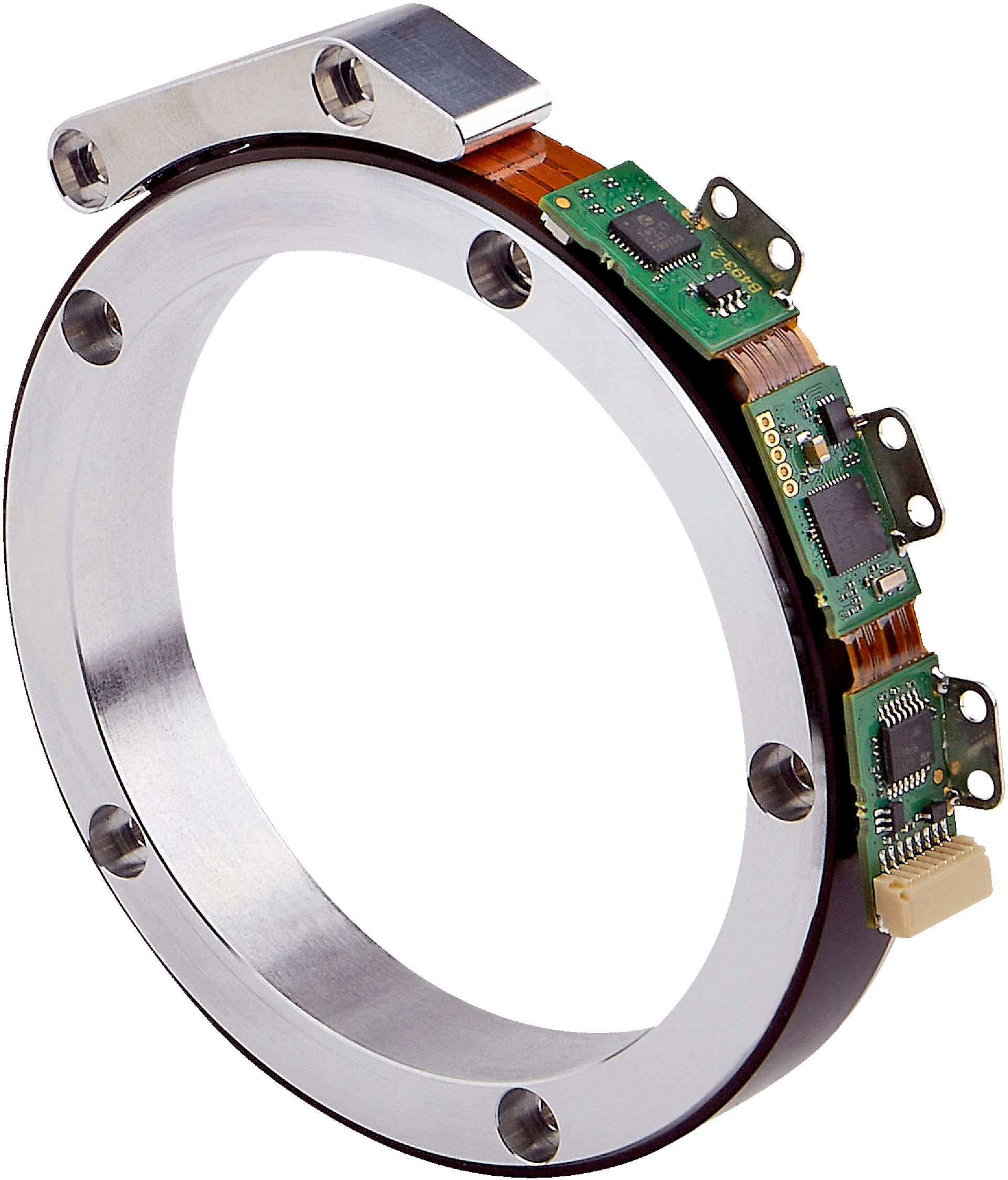

Magnetic Tape Sensor | High Accuracy ±0.06° | 5,800 RPM Speed | HIPERFACE Communication | by SICK
The Magnetic Tape Sensor STS065-HN065-AK22 delivers high precision with a system accuracy of ±0.06° and repeatability of 0.01°. Designed for industrial automation, robotics, and high-speed machinery, it operates within a wide temperature range of –30 °C to +105 °C, ensuring reliable performance in demanding environments. With HIPERFACE communication and a through hollow shaft design, this sensor is perfect for applications requiring accurate angular position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sine/cosine periods per revolution: 128
- Number of absolute ascertainable revolutions: 1
- Total number of steps: 4,096 via RS485
- Measuring step: 2.47″ with 12-bit interpolation
- Available memory area: 1,792 Byte
- System accuracy: ±0.06°
- Repeatability: 0.01°
- Pin length: 2 mm
- Type of code for absolute value: Binary
- Code sequence: Increasing clockwise rotation
- Communication interface: HIPERFACE®
- Connection type: Male connector, 8-pin
- Supply voltage: 7 V DC to 12 V DC
- Recommended supply voltage: 8 V DC
- Current consumption: 250 mA
- Shaft version: Through hollow shaft
- Material sensor head: Aluminum
- Material magnetic tape: 17410 Hard ferrite 9/28 P
- Material ring: Aluminum
- Moment of inertia of rotor: 752 gcm²
- Operating speed: 5,800 min⁻¹
- Angular acceleration: ≤ 50,000 rad/s²
- Permissible radial shaft movement: ≤ 0.6 mm
- Permissible axial shaft movement: ± 0.5 mm
- Operating temperature range: –30 °C to +105 °C (sensor head)
- Storage temperature range: –30 °C to +100 °C
- Relative humidity: 95%, no condensation
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 20 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP00
- Dimensions (H x L x W): 65mm x 22mm x 65mm
- Weight: 0.15 kg
Key Features
- High system accuracy of ±0.06°
- Repeatability of 0.01° for precise measurements
- Through hollow shaft design with aluminum sensor head
- Communication via HIPERFACE® interface
- Operating speed up to 5,800 min⁻¹
- Wide operating temperature range from –30 °C to +105 °C
- Resistance to shocks up to 100 g and vibrations up to 20 g
- Supply voltage range 7 V DC to 12 V DC with 250 mA current consumption
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise shaft position measurement
- Robotics and motion control systems
- High-speed machinery requiring accurate angular position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise control in automation systems, reducing energy waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK STS065-HN065-AK22 Magnetic Tape Sensor is available for immediate purchase, ideal for industrial automation and precision motion control applications.
