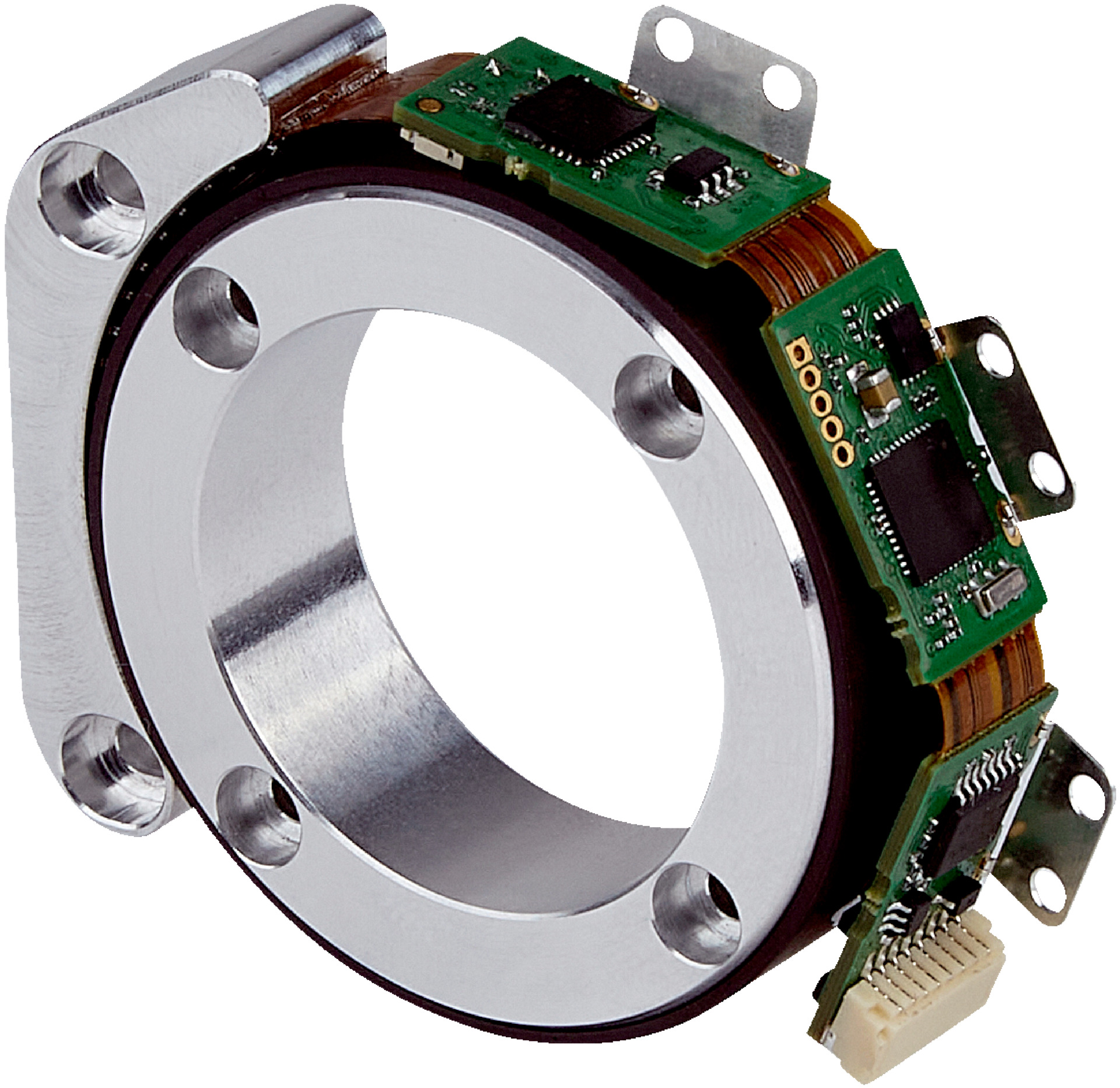

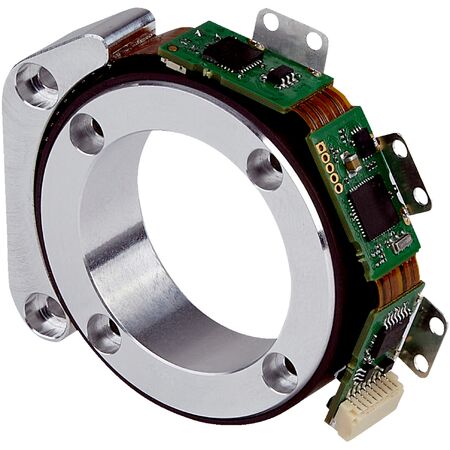

Magnetic Tape Sensor STS030-HN030-AK22 | ±0.09° Accuracy | 10,500 RPM Speed | by SICK
The Magnetic Tape Sensor STS030-HN030-AK22 offers high system accuracy of ±0.09° and repeatability of 0.01°, making it ideal for industrial automation and robotics applications. With a robust aluminum design and a wide operating temperature range from -30°C to +105°C, this sensor ensures reliable performance in demanding environments, providing precise angular position feedback for machine tools and automated systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 190 years (EN ISO 13849)
- Sine/cosine periods per revolution: 70
- Number of absolute ascertainable revolutions: 1
- Total number of steps: 2,240 via RS485
- Measuring step: 4.52″ with 12-bit interpolation
- Available memory area: 1,792 Byte
- System accuracy: ±0.09°
- Repeatability: 0.01°
- Pin length: 2 mm
- Type of code for absolute value: Binary
- Code sequence: Increasing clockwise rotation
- Connection type: Male connector, 8-pin
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 250 mA
- Material sensor head and ring: Aluminum
- Moment of inertia of rotor: 85 gcm²
- Operating speed: 10,500 min⁻¹
- Angular acceleration: ≤ 50,000 rad/s²
- Permissible radial shaft movement: ≤ 0.6 mm
- Permissible axial shaft movement: ±0.5 mm
- Operating temperature range: -30°C to +105°C (sensor head), -30°C to +100°C (magnetic tape ring)
- Storage temperature range: -30°C to +100°C
- Relative humidity: 95%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2000 Hz
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP00
- Dimensions (H x L x W): 30mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- High system accuracy of ±0.09° and repeatability of 0.01°
- Through hollow shaft design with aluminum sensor head and ring
- Communication via HIPERFACE® interface with binary code output
- Operating temperature range from -30°C to +105°C
- High resistance to shocks (100 g) and vibrations (20 g, 10 Hz to 2000 Hz)
- Low current consumption of 250 mA
- Magnetic tape material: 17410 Hard ferrite 9/28 P
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper mounting and connection.
Applications
- Industrial automation for precise shaft position measurement
- Robotics requiring high accuracy angular position feedback
- Machine tools and rotary encoders
- Automated manufacturing systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK STS030-HN030-AK22 Magnetic Tape Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
