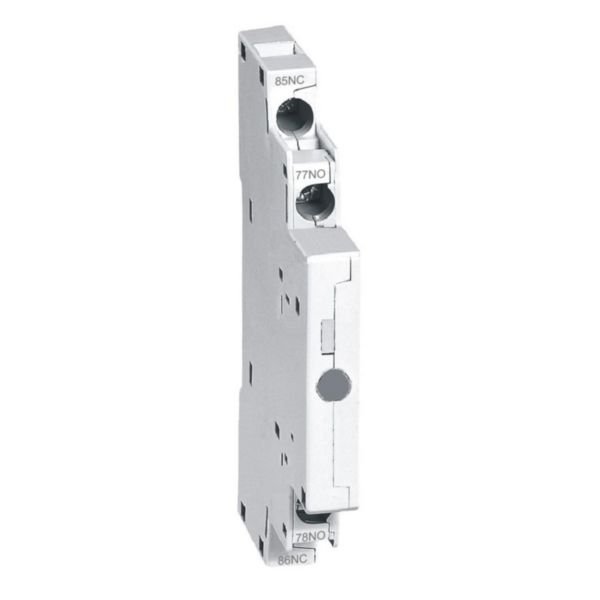

Magnetic Trip Signaling Switch for MPX3 | 1NO + 1NC Contacts | Side Mounting Design | by Legrand
The Magnetic Trip Signaling Switch for MPX3 is designed for reliable trip signaling in tertiary and industrial electrical installations. Featuring a 1 normally open and 1 normally closed contact configuration, this side mounting switch ensures easy installation and compliance with local regulations. Ideal for use with MPX3 circuit breakers, it offers a robust solution for effective electrical management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Auxiliary contact configuration: 1 normally open (NO) + 1 normally closed (NC)
- Rated operation current Ie at AC-15, 230 V: 3 A
- Electrical connection type: Screw connection
- Mounting method: Side mounting clip-on
- Screw terminal capacity: 2x 0.5mm² to 2.5mm²
- Compatible with MPX3 32S/H/MA circuit breakers
- Dimensions (H x L x W): 60mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- 1NO + 1NC auxiliary contact unit with Ith = 10A at 40°C / 6A at 60°C
- Rated supply current AC-15: 6A at 24V, 4A at 240V
- Rated supply current DC-13: 2A at 24V, 0.25A at 220V
- Screw terminals capacity from 2x 0.5mm² to 2.5mm²
- Compatible with MPX3 32S/H/MA circuit breakers
- Side mounting clip-on design for easy installation
- Environmentally conscious design complying with substance-restriction requirements
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper mounting and electrical connection according to local regulations.
Applications
- Tertiary and industrial electrical installations
- Side mounting on MPX3 circuit breakers for trip signaling
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Designed with environmentally conscious processes and complies with substance-restriction requirements
Warranty Information
Standard Legrand warranty applies; typically 1 year against manufacturing defects.
Available Now
The Legrand Magnetic Trip Signaling Switch for MPX3 side mounting is available for immediate purchase, ideal for tertiary and industrial electrical installations requiring reliable trip signaling.
