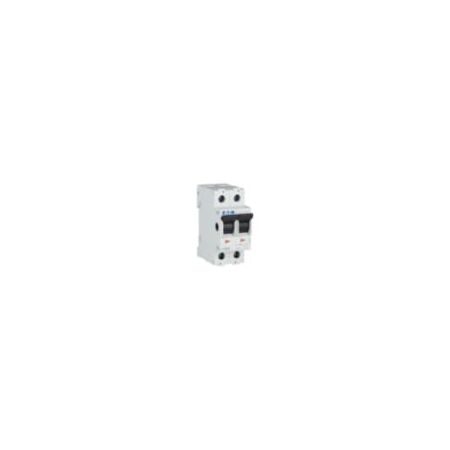

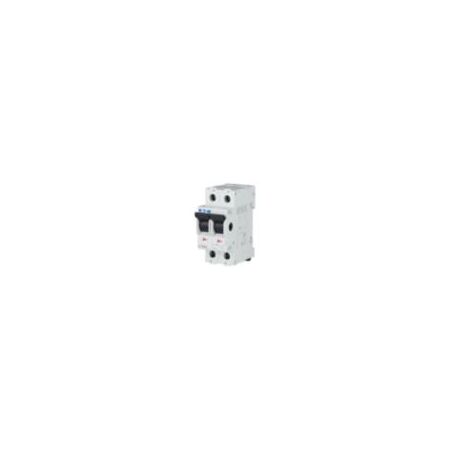

Main Load Disconnector Switch | 100 A Rated Current | IP40 Protection | Two-Pole by Eaton
The Eaton IS-100/2 Main Load Disconnector Switch features a 100 A rated current and IP40 protection—ideal for industrial and rail rolling stock applications. Built for reliable electrical isolation, with highly wear-resistant contacts and lift terminal connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Main Load Disconnector Switch | 100 A Rated Current | IP40 Protection | Two-Pole by Eaton
Brand: Eaton
SKU: Y7-276283
Alternatively Known As: Main Load Isolator Switch, Industrial Load Disconnector, Rail Rolling Stock Isolator
Technical Specifications
- Product Name: Eaton Moeller series IS Disconnector
- Catalog Number: 276283
- EAN: 4015082762834
- Degree of protection: IP40, IP10
- Terminals: Lift terminal
- Equipment heat dissipation, current-dependent: 7.8 W
- Imprint/indication: Symbol "arrows"
- Ambient operating temperature: -5 °C to 40 °C
- Built-in depth: 69.5 mm
- Heat dissipation per pole, current-dependent: 3.9 W
- Number of contacts (normally open): 2
- Amperage rating: 100 A
- Switch type: Other Off switch
- Rated short-time withstand current (Icw): 2 kA
- Voltage type: AC
- Type: IS. Main load disconnector switch
- Rated operational current for specified heat dissipation (In): 100 A
- Rated operational voltage (Ue) - max: 415 V
- Rated switching capacity: 10 kA
- Voltage rating - min: 240 V
- Width in number of modular spacings: 2
- Number of poles: Two-pole
- Dimensions (H x L x W): 80mm x 60mm x 35.4mm
- Weight: 0.207 kg
Key Features
- Main load disconnector switch with isolation function
- Highly wear resistant contacts
- Classified for use in rail rolling stock
- Rated operational current: 100 A
- Rated operational voltage: 415 V
- Two-pole switch
- Rated switching capacity: 10 kA
- Lift terminal connections
- Symbol "arrows" imprint for indication
- Ambient operating temperature range: -5 °C to 40 °C
- Degree of protection: IP40 and IP10
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Switchgear for industrial and advanced commercial applications
- Rail rolling stock electrical isolation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable design reduces replacement frequency and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton IS-100/2 Main Load Disconnector Switch is available now for immediate purchase. Ideal for industrial, commercial, and rail rolling stock electrical isolation applications.
