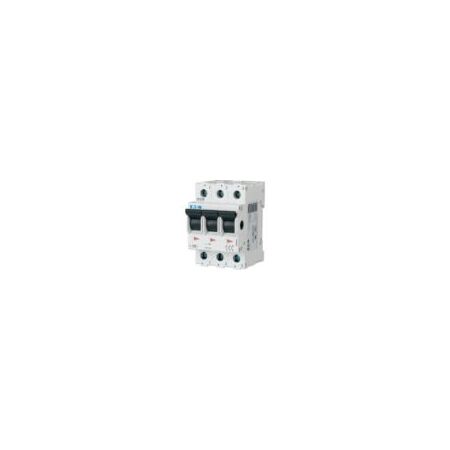

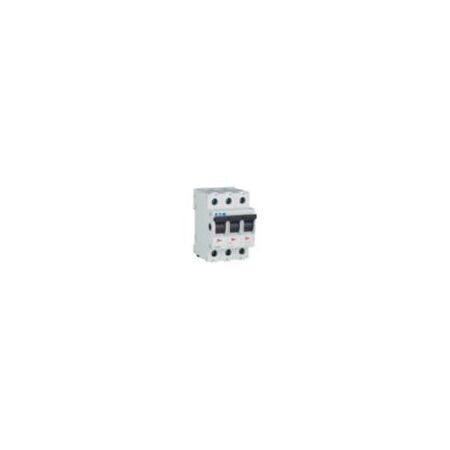

Main Load Disconnector Switch 63A | 240-415V AC | 12.5kA Capacity | IP40 Protection by Eaton
The Eaton IS-63/3 Main Load Disconnector Switch features a 63A rating and operates at 240-415V AC—ideal for industrial and commercial applications. Built for safety and reliability, it offers a rated switching capacity of 12.5kA and IP40 protection, ensuring durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Main Load Disconnector Switch 63A | 240-415V AC | 12.5kA Capacity | IP40 Protection by Eaton
Brand: Eaton
SKU: Y7-276276
Alternatively Known As: Main Load Isolator Switch, Industrial Load Disconnector, 3-Pole Load Switch, Eaton IS Disconnector
Technical Specifications
- Amperage rating: 63 A
- Voltage rating: 240-415 V AC
- Number of poles: 3
- Rated switching capacity: 12.5 kA
- Rated short-time withstand current (Icw): 1 kA
- Degree of protection: IP40 and IP10
- Terminals: Lift terminal
- Operating temperature range: -5 °C to 40 °C
- Heat dissipation per pole: 4.8 W
- Number of normally open contacts: 3
- Switch type: Main load disconnector switch
- Color calotte: Other
- Lamp power: 0 W
- Dimensions (H x L x W): 80mm x 60mm x 53.1mm
- Weight: 0.305 kg
Key Features
- Main load disconnector switch with isolation function
- Highly wear resistant contacts
- Three-pole design
- Rated operational current: 63 A
- Rated operational voltage: 240/415 V AC
- Rated switching capacity: 12.5 kA
- Lift terminal connections
- Symbol "arrows" imprint for clear indication
- Ambient operating temperature range: -5 °C to 40 °C
- Degree of protection: IP40 and IP10
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Switchgear for industrial and advanced commercial applications
- Rail rolling stock electrical isolation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable design reduces replacement frequency and waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton IS-63/3 Main Load Disconnector Switch is available now for immediate purchase. Ideal for industrial, commercial, and rail rolling stock electrical isolation applications.
