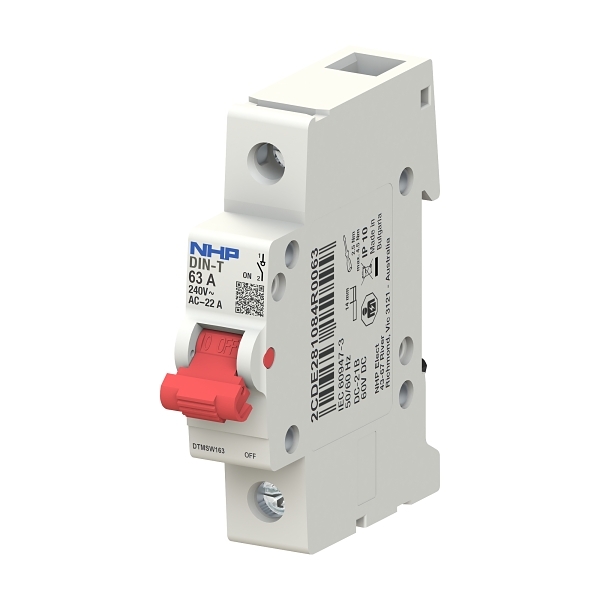

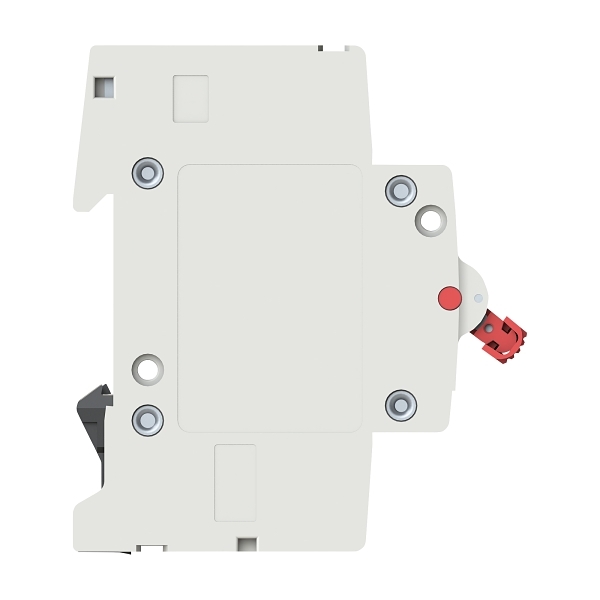

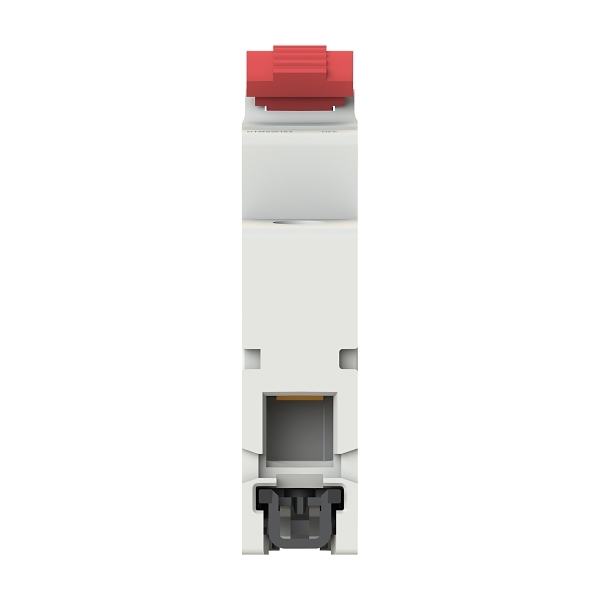

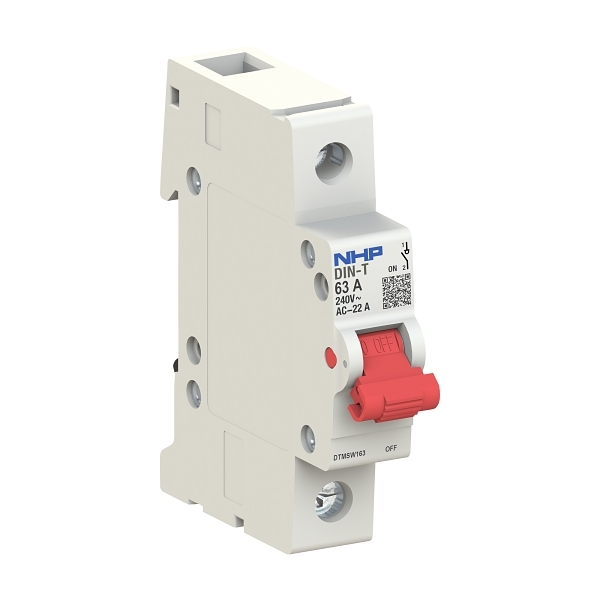

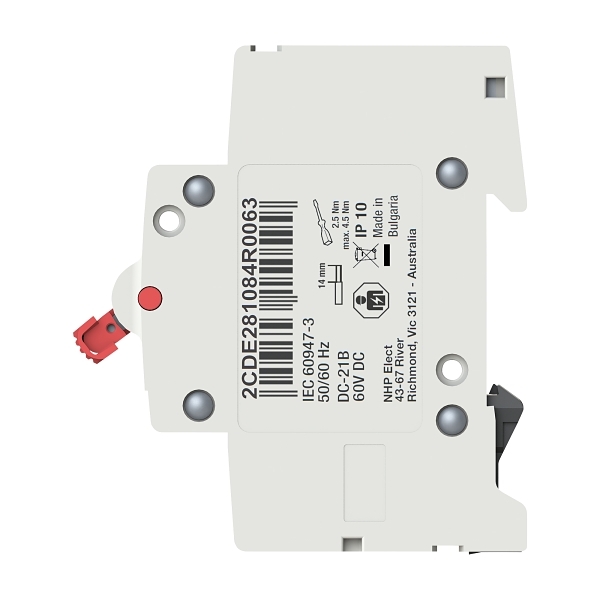

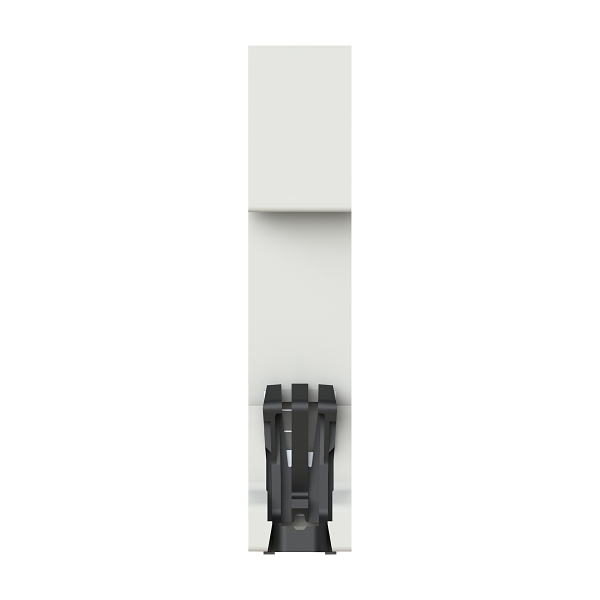

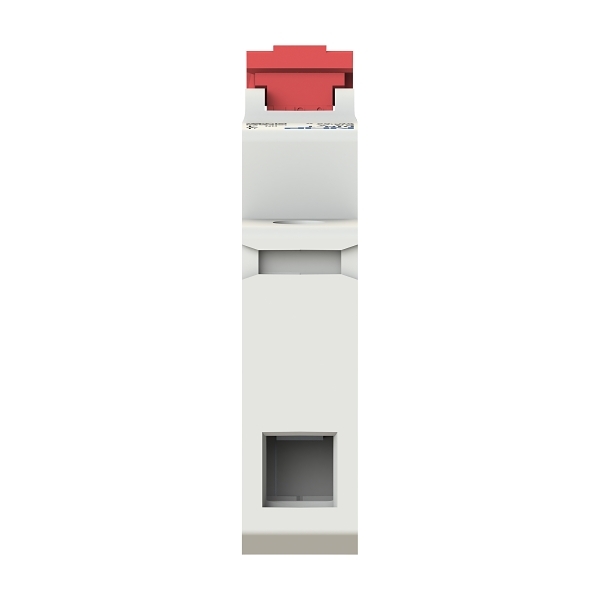

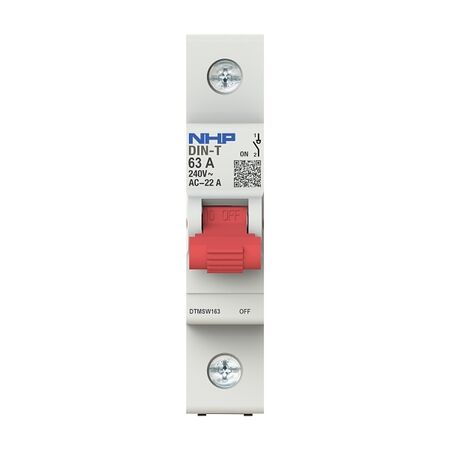

Product Name/Title: NHP DIN-T Main Switch 1 Pole 63A
Brand: NHP
SKU: DTMSW163
Alternatively Known As: NHP Main Switch, 1 Pole Circuit Breaker, DIN Rail Switch
Technical Specifications
- Rated Current: 63 A
- Number of Poles: 1
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 35 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 85mm x 75.8mm x 17.5mm
- Weight: 0.09 kg
Key Features
- 1 Pole configuration for single-phase applications.
- Rated current of 63A suitable for various electrical loads.
- IP40 protection rating for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Efficient design minimizes energy loss and enhances safety.
Warranty Information
1 year warranty against manufacturing defects.
