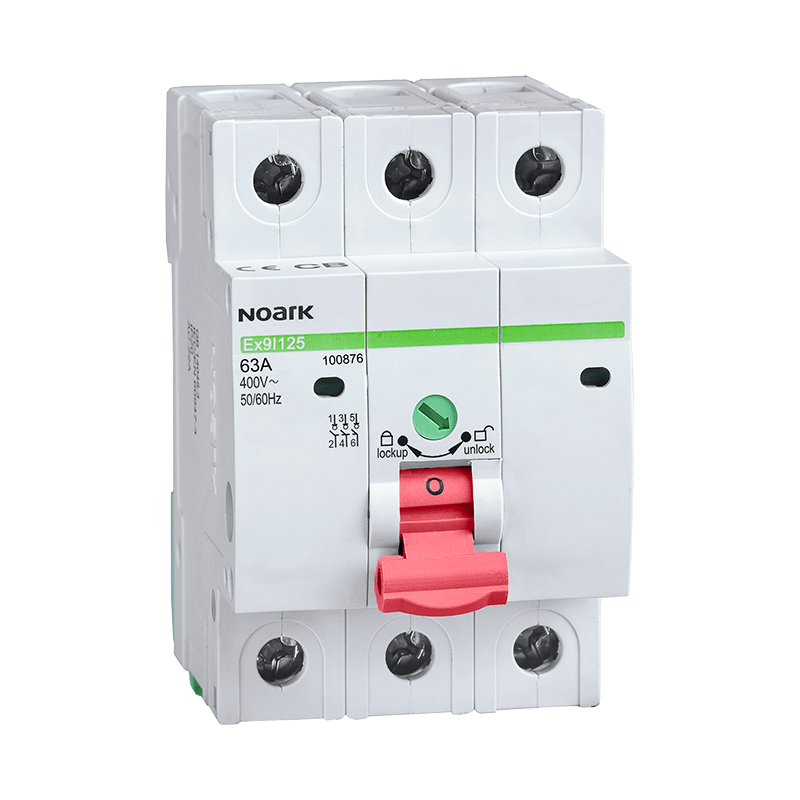

Main Switch ≤ 125A | 1 & 3-Pole Versions | Built-in Lock Mechanism | 240/415V AC by Noark
Main switch rated up to 125A with 1 & 3-pole versions and built-in lock mechanism—ideal for industrial and commercial electrical installations. Designed for safety and compliance, it ensures reliable operation in control panels and switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex9I125 1P 100A
Brand: Noark
SKU: 100866
Alternatively Known As: Main Circuit Switch, Industrial Main Switch, Electrical Main Switch 125A
Technical Specifications
- Tested according to IEC/EN 60947-3
- Rated short-time withstand current IcW=12 x Ie for 1 second
- 1 & 3-pole versions available
- Rated current up to 125A
- Rated operational voltage 240/415V AC
- Built-in lock mechanism for OFF position
- Dimensions (H x L x W): 120mm x 70mm x 90mm
- Weight: 1.5 kg
Key Features
- Tested according to IEC/EN 60947-3
- Rated short-time withstand current IcW=12 x Ie for 1 second
- Available in 1 & 3-pole versions
- Rated current up to 125A
- Rated operational voltage 240/415V AC
- Built-in lock mechanism for OFF position
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Industrial electrical installations
- Commercial electrical distribution systems
- Control panels and switchboards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Complies with safety standards to prevent electrical hazards and energy loss
Warranty Information
Standard manufacturer warranty of 1 year against defects.
Available Now
The Noark Main Switch ≤ 125A Ex9I125 1P 100A is available for immediate purchase, ideal for industrial and commercial electrical installations.
