Main Switch 3 Pole 100A | 415V AC | IP40 Rated by NHP
Main switch with 3 pole design and 100A rated current—ideal for industrial and residential power distribution. Built for robust performance, with IP40 protection and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

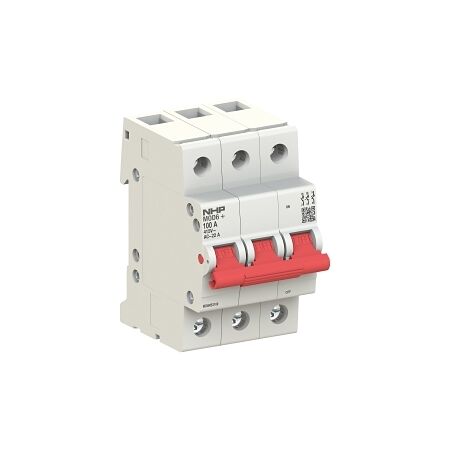

Product Name/Title: NHP MOD6+ Main Switch 3 Pole 100A
Brand: NHP
SKU: MD6MS3100
Alternatively Known As: NHP Main Switch, 3 Pole Main Switch, 100A Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC
- Max Rated Operation Voltage: 436 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 35 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 85mm x 75.8mm x 52.5mm
- Weight: 0.27 kg
Key Features
- 3 pole design for three-phase applications.
- Rated current of 100A for robust performance.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Main power switch for homes
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Efficient power management reduces energy waste.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6+ Main Switch 3 Pole 100A is available now for immediate purchase. Ideal for industrial and residential power distribution.
