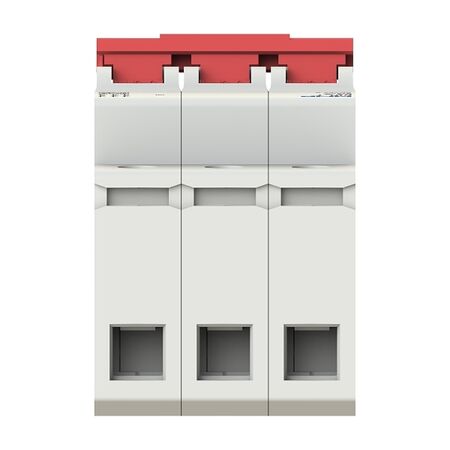

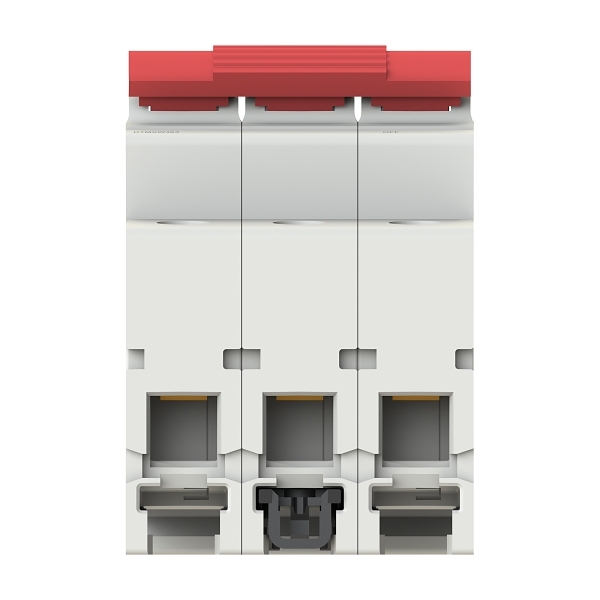

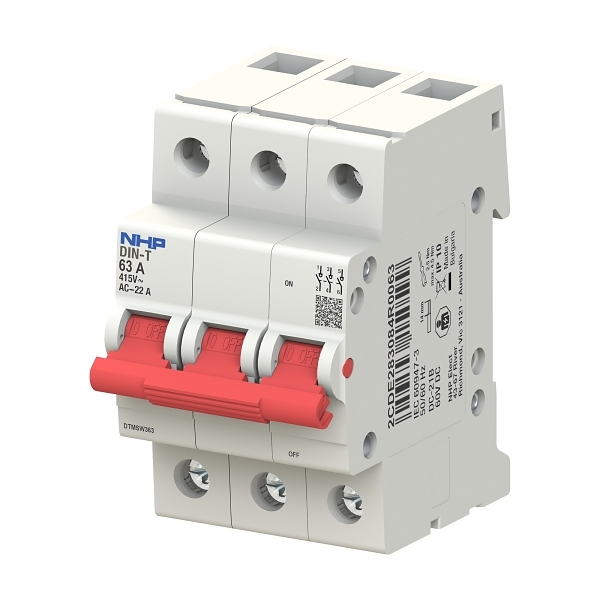

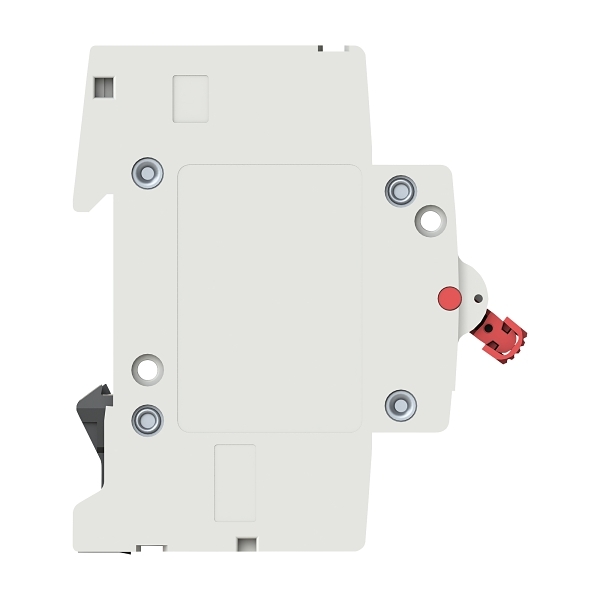

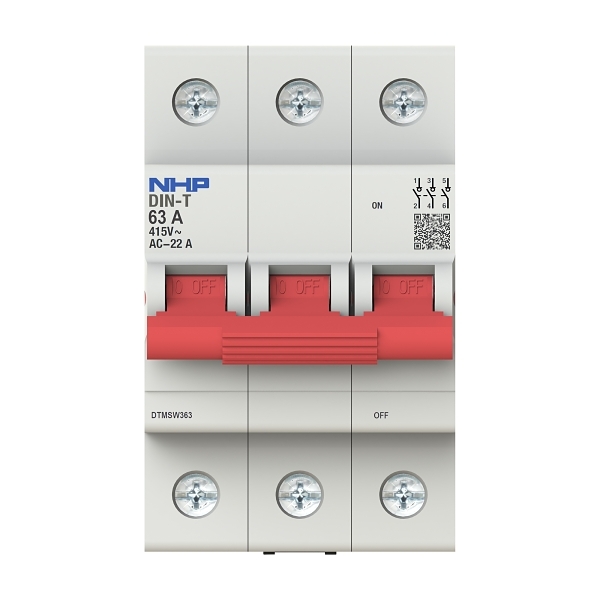

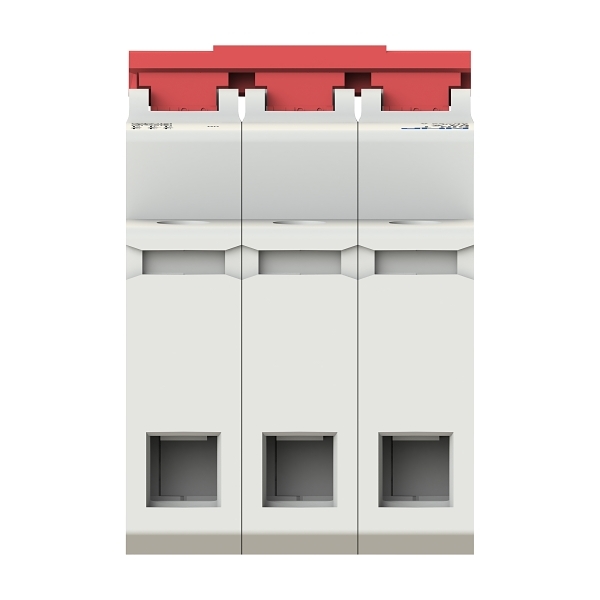

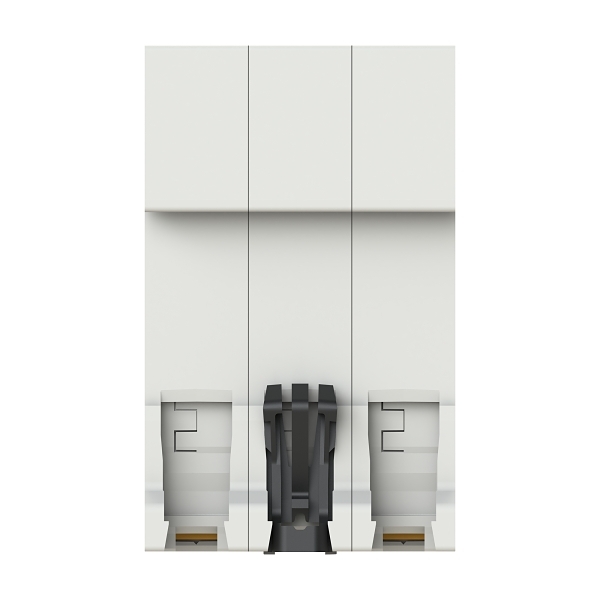

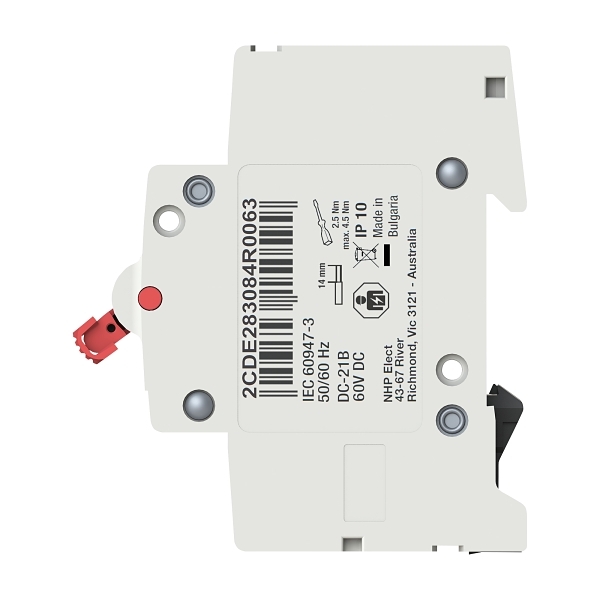

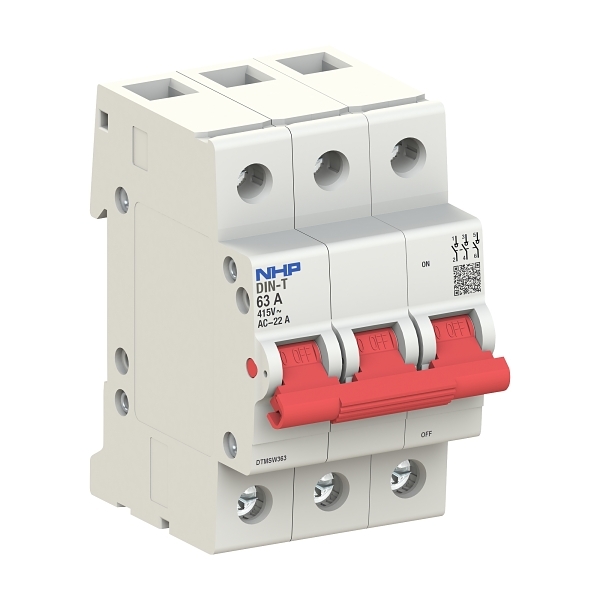

Product Name/Title: NHP DIN-T Main Switch 3 Pole 63A
Brand: NHP
SKU: DTMSW363
Alternatively Known As: 3 Pole Main Switch, 63A DIN Rail Switch, NHP Circuit Breaker
Technical Specifications
- Rated Current: 63 A
- Number of Poles: 3
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 35 °C
- Ambient Temperature During Operating: -25-55 °C

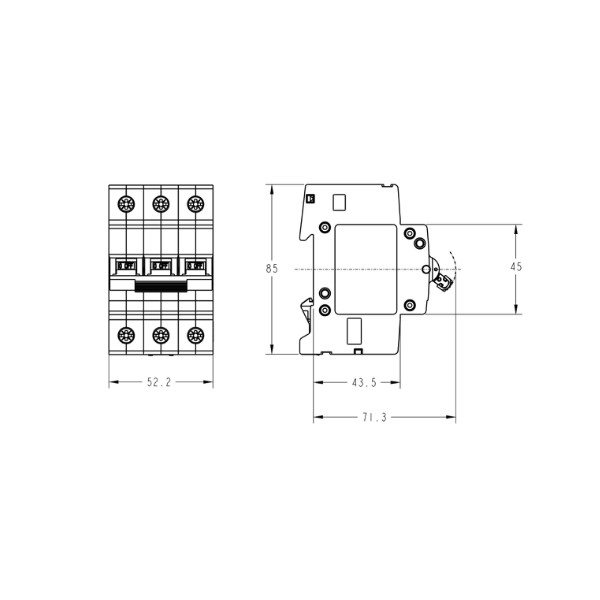

- Dimensions (H x L x W): 85mm x 75.8mm x 52.5mm
- Weight: 0.27 kg
Key Features

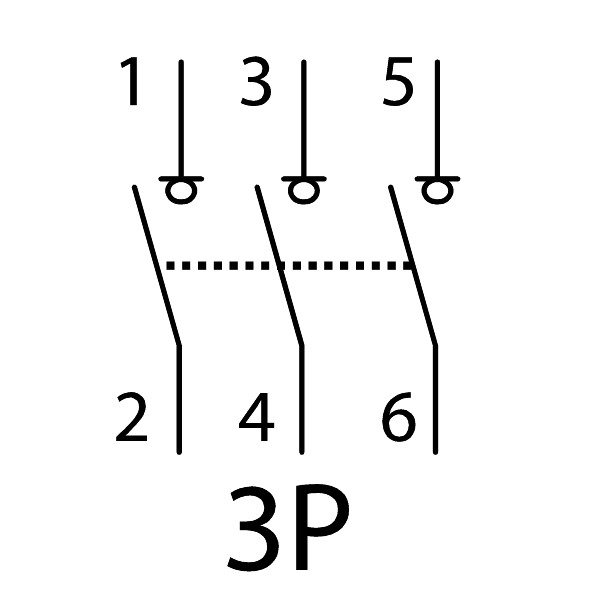

- 3 pole configuration for three-phase systems.
- Rated current of 63A suitable for various applications.
- IP40 protection rating for dust and moisture resistance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Main power switch for homes
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power management reduces energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Main Switch 3 Pole 63A is available now for immediate purchase. Ideal for industrial and residential power distribution.
