Mainboard Small - 630A CT Panel IP 2000x800x500

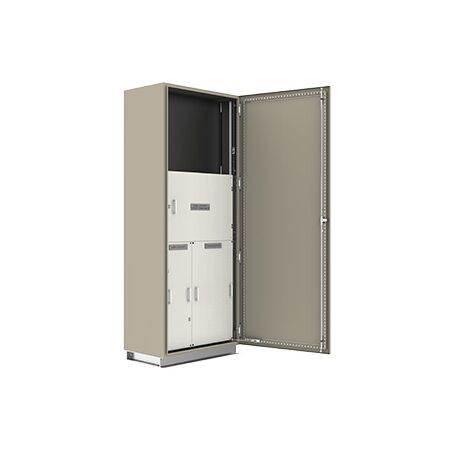

Mainboard Small 630A CT Panel | 2000x800x500 | Powdercoated Pebble Grey by B&R Enclosures

BRAND: B&R Enclosures

SKU: SMB1/15

$7,854.10 List price: $9,871.80

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Mainboard small with 630A CT panel and powdercoated pebble grey finish—ideal for remote metering and emergency power restorations. Built for local electricity distribution, with a heavy-duty locking system and insulated meter panel.

Description
Attachments

Product Name/Title: Mainboard Small - 630A CT Panel IP 2000x800x500

Brand: B&R Enclosures

SKU: SMB1/15

Alternatively Known As: Current Transformer Metering, CT Chassis Systems, Main Boards

Technical Specifications

CT Chassis Rating: 490A
Test: 36kA for 1 sec
Material: 1.6mm zinc coated steel or 316 stainless steel
Finish: Powdercoated Pebble Grey RAL7032
Dimensions (H x L x W): 2075mm x 500mm x 800mm
Weight: 100 kg

Key Features

Suitable for the mounting of supply authority and private current transformers
AS/NZS 61439 compliant documentation provided
Manufactured from 1.6mm zinc coated steel or 316 stainless steel available on request
Powdercoated Pebble Grey RAL7032

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Retail, offices, and industrial applications
General: Any location requiring current transformer mounting solutions

Standards & Compliance

Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CT Metering small main boards & CT chassis systems are available now for immediate purchase. Ideal for residential and commercial applications requiring reliable current transformer solutions.

Specification Sheet (, 439 Kb) [Download]

Specification Sheet (, 441 Kb) [Download]

Specification Sheet (, 439 Kb) [Download]
