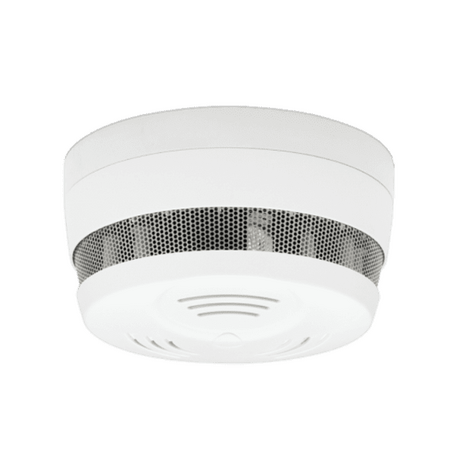

Mains Powered Photoelectric Smoke Alarm | Wireless Interconnection | 10-Year Battery Backup | 85dB Sound Level | by Cavius
The Mains Powered Photoelectric Smoke Alarm offers reliable smoke detection with its advanced photoelectric sensor and wireless interconnection capability, allowing up to 32 alarms to communicate seamlessly. Ideal for both residential and commercial applications, this smoke alarm features a 10-year battery backup and a 10-minute hush button for easy management of nuisance alarms, ensuring safety and peace of mind in any indoor environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mains Powered Photoelectric Smoke Alarm | Wireless Interconnection | 10-Year Battery Backup | 85dB Sound Level | by Cavius
Brand: Cavius
SKU: 2203 CAVMP
Alternatively Known As: 240V Photoelectric Smoke Detector, Wireless Interconnected Smoke Alarm, Mains Powered Smoke Alarm with Battery Backup
Technical Specifications
- Sensor Type: Photoelectric/Optical smoke detection
- Battery: Duracell Lithium CR2 3V (replaceable)
- Interconnected Radio Frequency: 926.365 MHz
- Range: Maximum 100m in plain line of sight
- Chamber: Optical reading every 8 seconds
- Sound Level: 85dB at 3 meters
- Operating Temperature: +4ºC to +38ºC
- Maximum Humidity: 95% RH non-condensing
- Certifications: AS3786:2014, NF292, RoHS, REACH, ActivFire®
- Power Supply: Mains powered 240V with battery backup
- Hush Button: 10-minute silence feature
- Low Battery Alert: 30 days warning
- Dimensions (H x L x W): 40mm x 97mm x 97mm
- Weight: 0.15 kg
Key Features
- Smallest and aesthetically pleasing 240V interconnected smoke alarm
- Wireless interconnection with up to 32 alarms using innovative RF technology
- 10-year battery backup with replaceable Duracell Lithium CR2 3V battery
- 10-minute hush button for nuisance alarm silencing
- Two levels of mesh screening to reduce insect and dust contamination
- Intelligent test button to confirm alarm functionality
- Power On green LED indicator for mains power supply
- Sound level of 85dB at 3 meters
- Range of up to 100m line of sight for wireless interconnection
- AS3786:2014 certified and compliant with NZ Building Code, RTA, and NZS 4514:2021
- Optimal operating temperature from +4ºC to +38ºC and max humidity 95% RH non-condensing
- Accessory option to work as a lamp hook
Professional Installation Requirements
- Must be installed by a professional or registered electrician to ensure compliance and safety.
Applications
- Residential: Bedrooms, lounges, hallways
- Commercial: Offices, retail spaces, hospitality venues
- General: Any indoor environment requiring reliable smoke detection
Standards & Compliance
- AS/NZS 3786:2014 – Smoke Alarms
Environmental Benefits
- Long-life battery reduces waste and replacement frequency
- Energy-efficient design minimizes power consumption
- Durable construction reduces need for frequent replacements
Warranty Information
10-year warranty covering manufacturing defects and performance.
Available Now
The Cavius Mains Powered Photoelectric Smoke Alarm is available for immediate purchase, ideal for enhancing fire safety in residential and commercial buildings.
