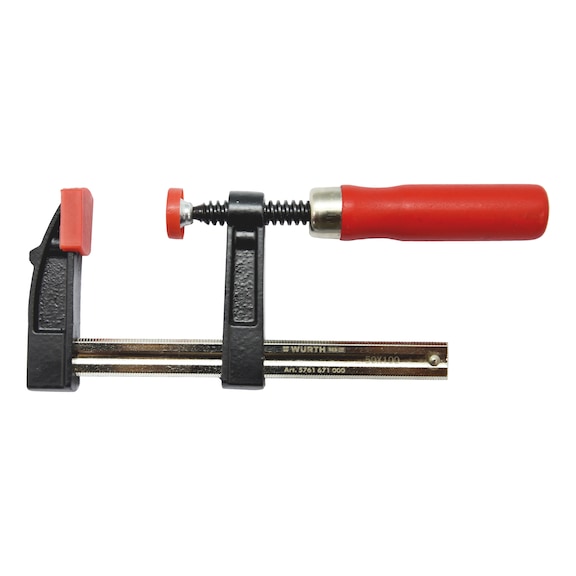

Malleable Iron Screw Clamp | Ergonomic Wood Handle | Protective Caps | Max Clamping Width 300mm | by Wurth
The Malleable Iron Screw Clamp is designed for woodworking and metalworking, featuring an ergonomic wood handle and protective caps to prevent material damage. With a maximum clamping width of 300mm, this durable clamp is perfect for securely holding wood and metal pieces during assembly, welding, or fabrication. Ideal for both professional and DIY projects, it offers high strength and flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Malleable Iron Screw Clamp | Ergonomic Wood Handle | Protective Caps | Max Clamping Width 300mm | by Wurth
Brand: Wurth
SKU: 5761671101
Alternatively Known As: Screw Clamp, Woodworking Clamp, Metalworking Clamp, Malleable Iron Clamp, Hand Clamp
Technical Specifications

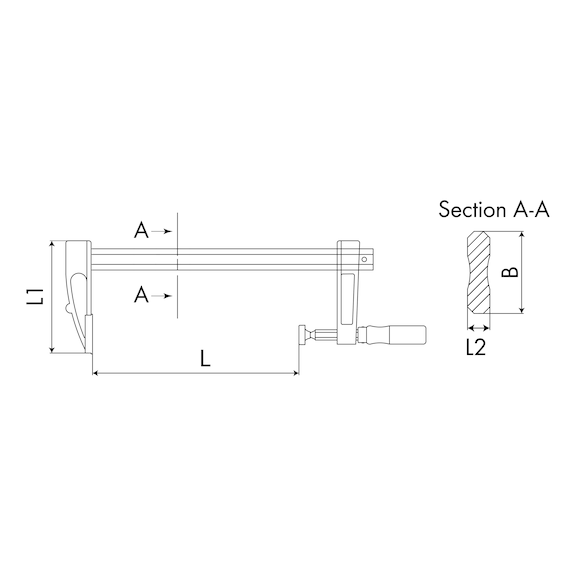

- Max. clamping width: 300 mm
- Overhang (L1): 95 mm
- Profile width (B): 22 mm
- Profile thickness (L2): 6 mm
- Material: Powder-coated malleable iron
- Rail plate: Cold-extruded, nickeled
- Thread: Rolled, tempered trapezoidal
- Handle: Ergonomic, burr-free riveted wood
- Dimensions (H x L x W): 95mm x 22mm x 300mm
- Weight: 1.2 kg
Key Features
- High durability, strength, flexibility, and corrosion resistance
- Powder-coated malleable iron clamping bracket
- Cold-extruded, nickeled rail plate
- Protective caps on sliding bars and clamping bracket to prevent material damage
- Spindle with rolled, tempered trapezoidal thread
- Ergonomically shaped and burr-free riveted wooden handle
- Available in different clamping widths and overhangs for versatile applications
Professional Installation Requirements
- No professional installation required; ready to use out of the box.
Applications
- Woodworking: Clamping wood pieces securely during assembly or gluing
- Metalworking: Holding metal parts in place for welding or fabrication
- General: Suitable for various clamping needs in workshops and DIY projects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Protective coatings extend product life, reducing environmental impact
Warranty Information
Standard manufacturer warranty against defects in materials and workmanship.
Available Now
The Wurth Malleable Iron Screw Clamp with Wood Handle and Protective Caps is available now for immediate purchase. Ideal for woodworking, metalworking, and general workshop applications.
