Trade Discount 20%
Malleable Iron Screw Clamp | Ergonomic Wooden Handle | Protective Caps | Max Clamping Width 100mm | by Wurth
The Malleable Iron Screw Clamp features an ergonomic wooden handle and protective caps, making it perfect for woodworking and metalworking tasks. With a maximum clamping width of 100mm, this durable clamp is designed for strength and flexibility, ensuring secure hold during assembly or fabrication. Ideal for workshops and DIY projects, it offers reliable performance without the need for professional installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Malleable Iron Screw Clamp | Ergonomic Wooden Handle | Protective Caps | Max Clamping Width 100mm | by Wurth
Brand: Wurth
SKU: 5761671000
Alternatively Known As: Screw Clamp, Woodworking Clamp, Metalworking Clamp, Malleable Iron Clamp, Workshop Clamp

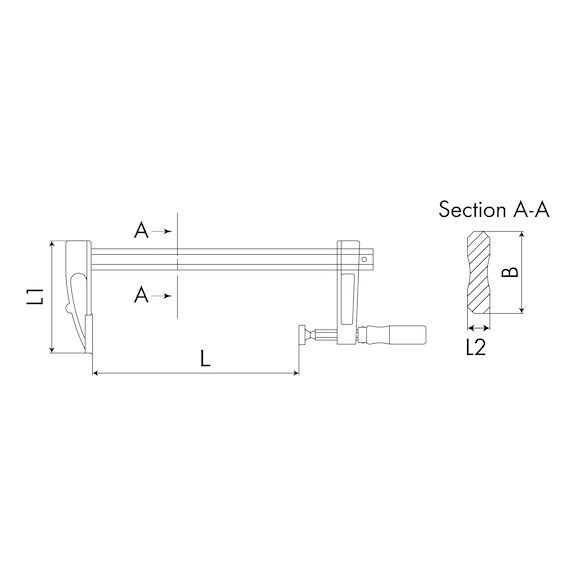

Technical Specifications
- Max. clamping width: 100 mm
- Overhang (L1): 60 mm
- Profile width (B): 15 mm
- Profile thickness (L2): 5 mm
- Material: Powder-coated malleable iron
- Handle: Ergonomically shaped wooden handle
- Thread: Rolled, tempered trapezoidal spindle thread
- Dimensions (H x L x W): 60mm x 15mm x 100mm
- Weight: 0.5 kg
Key Features
- High durability, strength, flexibility, and corrosion resistance
- Powder-coated malleable iron clamping bracket
- Cold-extruded, nickeled rail plate
- Protective caps on sliding bars and clamping bracket to prevent material damage
- Spindle with rolled, tempered trapezoidal thread
- Ergonomically shaped and burr-free riveted wooden handle
- Available in different clamping widths and overhangs for versatile applications
Professional Installation Requirements
- No professional installation required; ready to use for manual clamping tasks.
Applications
- Woodworking: Clamping wood pieces securely during assembly or gluing
- Metalworking: Holding metal parts in place for welding or fabrication
- General: Suitable for various clamping needs in workshops and DIY projects
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Powder-coated finish provides long-lasting protection, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Malleable Iron Screw Clamp with Wood Handle and Protective Caps is available now for immediate purchase. Ideal for woodworking, metalworking, and general workshop applications.
