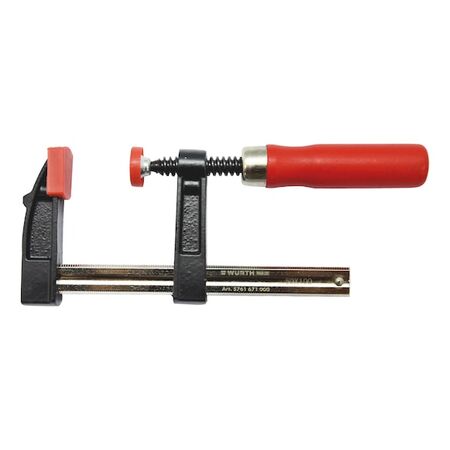

Malleable Iron Screw Clamp | Ergonomic Wooden Handle | Protective Caps | Max Clamping Width 150mm | by Wurth
The Malleable Iron Screw Clamp is designed for woodworking and metalworking projects, featuring a durable powder-coated construction and an ergonomically shaped wooden handle. With a maximum clamping width of 150mm and protective caps to prevent material damage, this clamp is perfect for both professionals and hobbyists looking for reliable performance in their workshop.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Malleable Iron Screw Clamp | Ergonomic Wooden Handle | Protective Caps | Max Clamping Width 150mm | by Wurth
Brand: Wurth
SKU: 5761671001
Alternatively Known As: Screw Clamp, Wood Handle Clamp, Malleable Iron Clamp, Workshop Clamp
Technical Specifications
- Max. clamping width: 150 mm
- Overhang (L1): 60 mm
- Profile width (B): 15 mm
- Profile thickness (L2): 5 mm
- Material: Powder-coated malleable iron
- Handle: Ergonomically shaped wooden handle
- Thread: Rolled, tempered trapezoidal spindle thread
- Dimensions (H x L x W): 60mm x 200mm x 150mm
- Weight: 0.5 kg
Key Features
- High durability, strength, flexibility, and corrosion resistance
- Powder-coated malleable iron clamping bracket
- Cold-extruded, nickeled rail plate
- Protective caps on sliding bars and clamping bracket to prevent material damage
- Spindle with rolled, tempered trapezoidal thread
- Ergonomically shaped and burr-free riveted wooden handle
- Available in different clamping widths and overhangs for versatile applications
Professional Installation Requirements
- No professional installation required; suitable for manual use by professionals and hobbyists.
Applications
- Woodworking projects
- Metalworking tasks
- General clamping needs in workshops and manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Protective coatings extend product life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Malleable Iron Screw Clamp with Wood Handle and Protective Caps is available now for immediate purchase. Ideal for woodworking, metalworking, and general clamping applications.
