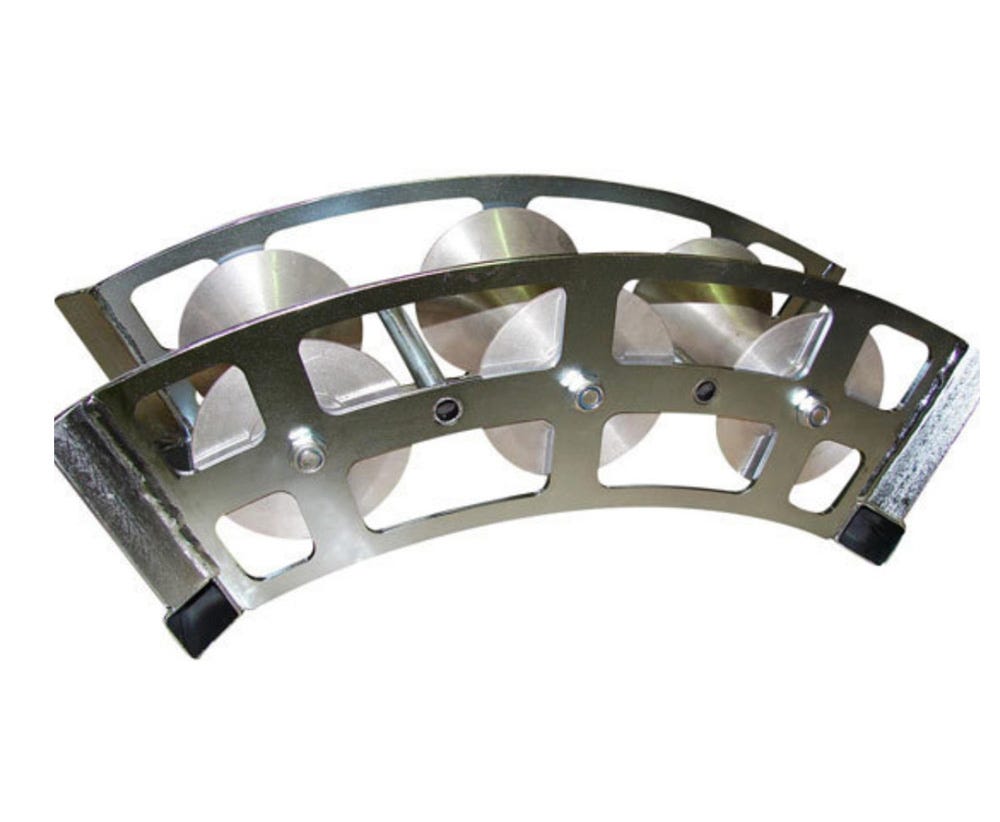

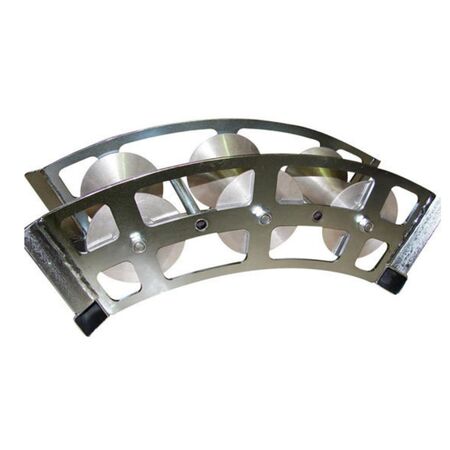

Manhole Guide Triple Roller | Three Aluminium Rollers | Zinc Plated Frame | Supports 125mm Cables | @EA of 1 | by Cabac
The Manhole Guide Triple Roller is designed for efficient cable installation, featuring three aluminium rollers for smooth guidance and a zinc plated frame for corrosion resistance. Ideal for above ground to conduit transitions, this guide supports cables with a maximum outer diameter of 125mm, making it perfect for electrical and telecommunications applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Manhole Guide Triple Roller | Three Aluminium Rollers | Zinc Plated Frame | Supports 125mm Cables | @EA of 1 | by Cabac
Brand: Cabac
SKU: MSS-TRGM-100-3
Alternatively Known As: Cable Guide Triple Roller, Manhole Cable Guide, Cable Roller Guide
Technical Specifications
- Maximum Cable Outer Diameter: 125mm
- Rollers: Three aluminium rollers
- Frame Material: Zinc plated steel
- Application: Above ground to conduit transition cable guide
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 3 kg
Key Features
- Three aluminium rollers for smooth cable guidance
- Zinc plated frame for corrosion resistance
- Designed for above ground to conduit transition cable guiding
- Supports cables up to 125mm outer diameter
Professional Installation Requirements
- Installation by trained personnel is recommended to ensure proper setup and safety during cable installation.
Applications
- Cable installation for above ground to conduit transitions
- Suitable for guiding cables with a maximum outer diameter of 125mm
- Used in electrical and telecommunications cable installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Zinc plating extends product life, reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Manhole Guide Triple Roller is available for immediate purchase, ideal for professional cable installation and maintenance tasks.
