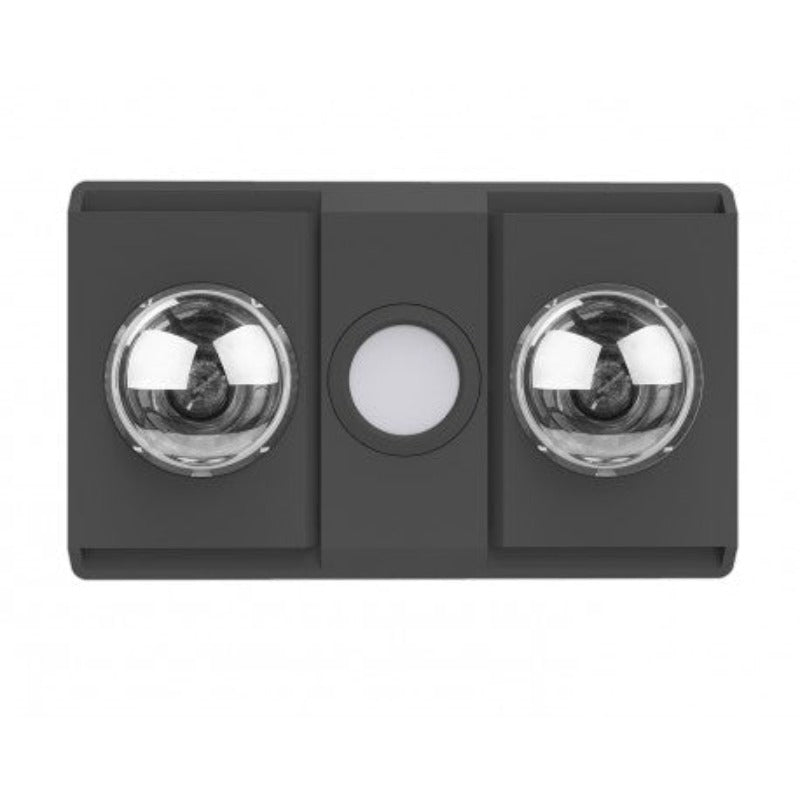

Manrose Sierra 2 3-in-1 Heater Exhaust Light Matte Black Ventair
Manrose Sierra 2 2 Heat High Air Extraction 3 in 1 Bathroom Heat Exhaust with Centre LED Downlight Matte Black by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Sierra 2 Bathroom Heater, Manrose Sierra 2 Heat Light and Exhaust, MR2DXBL
Technical Specifications
- Model Number: MR2DXBL
- Finish: Matte black
- Product Type: Ceiling-mounted 3-in-1 bathroom heater, exhaust fan and LED light
- Motor: Ball-bearing exhaust motor
- Exhaust Motor Power: 40 W
- Air Delivery: 460 m³/h
- Noise Level: 44 dB(A)
- Duct Outlet: 125 mm side outlet
- Heat Lamps: 2 x 275 W infrared E27 globes
- Light: 1 x 13 W tri-colour LED downlight
- Light Output: 900 lumens
- Colour Temperature: Warm 3,000 K, natural 4,200 K or cool 6,500 K
- Rated Input: 230-240 V AC, 50 Hz
- Ingress Protection: IPX2
- Cut-out Size: 255 x 435 mm
- Fascia Size: 290 x 480 mm
- Recommended Minimum Installation Depth: 220 mm
- Included Accessories: Three-switch wall plate, 3 m duct, external outlet grille and draft stopper
- Thermal Safety: Thermostat automatically activates the exhaust fan if internal temperature exceeds 90°C
- Dimensions (H x L x W): 195mm x 480mm x 290mm
- Weight: 7.58 kg
Key Features
- Three functions in one ceiling-mounted bathroom unit
- Two instant radiant infrared heat lamps
- High extraction airflow rated at 460 m³/h
- Selectable warm, natural and cool LED colour temperatures
- Slim profile suited to multi-level and restricted ceiling spaces
- Removable fascia for easier cleaning
- Side-ducted design with draft stopper
- Ball-bearing exhaust motor
- Includes wall switch, ducting and external outlet grille
Professional Installation Requirements
- Installation must be completed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer’s instructions. The unit is for ceiling mounting only, requires at least 220 mm installation depth and must be ducted to an external outlet. Do not install directly above a bath or shower or where water may splash onto the heat lamps.
Applications
- Residential bathrooms
- Ensuites and powder rooms
- Laundry areas requiring combined heating, lighting and ventilation
- Domestic or similar indoor ceiling-mounted ventilation applications
Standards & Compliance
- AS/NZS 3000:2018 for electrical installation and wiring requirements
- AS/NZS 60335.2.30 for safety requirements applicable to electric room heaters
- AS/NZS 60335.2.80 for safety requirements applicable to household and similar electric fans
Environmental Benefits
- Tri-colour LED downlight provides an energy-efficient lighting option compared with conventional incandescent lighting
- Draft stopper helps reduce unwanted air movement when the exhaust fan is not operating
- Effective ventilation helps manage bathroom moisture and condensation, supporting the durability of building finishes
- Ball-bearing motor construction may support longer service life and reduce replacement waste
Warranty Information
Three-year limited domestic warranty against manufacturing defects, comprising two years covering parts and labour followed by one additional year covering motor replacement. Fascia and LED components carry a two-year replacement warranty, while supplied heat lamps carry a one-year replacement warranty. Commercial use is limited to a maximum one-year warranty.
Available Now
Available through authorised Ventair distributors in Australia.
