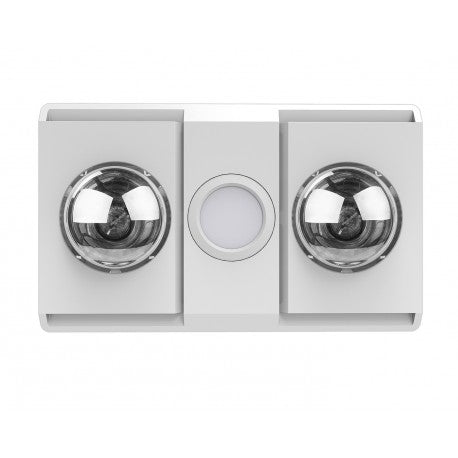

Manrose Sierra 2 3-in-1 Heater Exhaust Light White Ventair
Manrose Sierra 2 2 Heat High Air Extraction 3 in 1 Heat Exhaust with Centre LED Downlight White by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair Sierra 2 Bathroom Heater, Manrose Sierra 2 Heat Light and Exhaust, MR2DXWH
Technical Specifications
- Model Number: MR2DXWH
- Colour: White
- Exhaust Motor Power: 40W
- Air Delivery: 460m³/h
- Motor Type: Ball-bearing motor
- Duct Outlet: Ø125mm side outlet
- Heat Lamps: 2 x 275W infrared E27 globes
- Downlight: 1 x 13W tri-colour LED
- Light Output: 900 lumens
- Light Colour: Warm, natural or cool; 3,000K, 4,200K or 6,500K
- Rated Input: 230–240V AC, 50Hz
- Ingress Protection: IPX2
- Cut-Out Size: 255 x 435mm
- Recommended Minimum Installation Depth: 220mm
- Included Accessories: Wall switch, ducting kit, duct clip and external grille
- Thermal Safety: Automatic exhaust fan activation if internal temperature exceeds 90°C
- Dimensions (H x L x W): 195mm x 480mm x 290mm
- Weight: 7.58 kg
Key Features
- Three functions in one ceiling-mounted bathroom unit
- High extraction airflow for removing steam and odours
- Two instant radiant infrared heat lamps
- Switchable warm, natural and cool LED colour temperatures
- Slim profile suited to multi-level homes and restricted ceiling spaces
- Removable fascia for easier cleaning
- Ball-bearing exhaust motor for reliable operation
- Side-ducted design with 125mm outlet
- Energy-saving draft stopper
- Suitable for indoor domestic or similar applications
Professional Installation Requirements
- Installation and electrical connection must be completed by a licensed electrician in accordance with AS/NZS 3000. The unit is ceiling-mounted, must be earthed, and should not be installed directly above a shower or bath or where water may splash onto the bulbs.
Applications
- Residential bathrooms
- Ensuites and powder rooms
- Laundry areas requiring combined heating, lighting and extraction
- Bathroom renovations and new residential construction
- Multi-level homes with limited ceiling cavity depth
Standards & Compliance
- AS/NZS 3000: Electrical installations and wiring requirements
- AS/NZS 60335.2.30: Safety requirements for household and similar electric room heaters
- AS/NZS 60335.2.80: Safety requirements for household and similar electric fans
Environmental Benefits
- Tri-colour LED downlight provides efficient illumination compared with traditional incandescent lighting
- Ball-bearing motor and durable construction support extended service life and reduced replacement waste
- Exhaust function assists moisture management, helping reduce condensation-related damage and mould risk
- Removable fascia supports routine cleaning and longer product serviceability
Warranty Information
3-year warranty against defects in materials and workmanship under normal domestic or residential use, subject to the manufacturer's warranty conditions.
Available Now
Available through authorised Ventair distributors in Australia.
