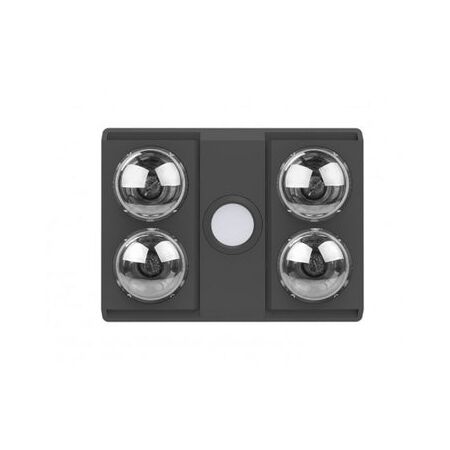

Manrose Sierra 4 3-in-1 Heater Exhaust Light Matte Black Ventair
Manrose Sierra 4 4 Heat High Extraction 3 in 1 Bathroom Heat Exhaust with Centre LED Downlight by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sierra 4 Bathroom Heat Exhaust Light, Manrose Sierra 4 Black, Ventair 4-in-1 Bathroom Heater Fan Light
Technical Specifications
- Model Number: MR4DXBL
- Product Type: Ceiling-mounted bathroom heater, exhaust fan and LED light
- Rated Voltage: 230-240V AC
- Rated Frequency: 50Hz
- Rated Power: 1080-1180W
- Exhaust Motor Power: 40W
- Air Delivery: 460m3/h
- Heat Lamps: 4 x 275W infrared E27 globes
- Downlight: 1 x 13W tri-colour LED
- Light Output: 900 lumens
- Colour Temperature: 3000K, 4200K or 6500K
- Side Outlet Duct Size: 125mm diameter
- IP Rating: IPX2
- Motor: Ball-bearing motor
- Minimum Installation Depth: 220mm
- Mounting: Flat ceiling installation only
- Ducting: Ventiduct kit supplied; maximum recommended duct length 3m
- Dimensions (H x L x W): 195mm x 480mm x 360mm
- Weight: 5.5 kg
Key Features
- Three functions in one ceiling-mounted unit: heating, exhaust ventilation and LED lighting
- Four infrared heat lamps provide instant radiant heat
- Tri-colour LED downlight with warm, natural and cool colour settings
- High extraction airflow rated at 460m3/h
- Matte black removable fascia for cleaning
- Thermostat automatically activates the exhaust fan if internal temperature exceeds 90 degrees Celsius
- Supplied with ducting components, clips, switch panel and exterior vent
- Suitable for multi-level homes and installations with limited ceiling space
Professional Installation Requirements
- Installation must be completed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. The unit must be earthed, installed on a flat ceiling and ducted to the exterior. Do not install directly above a shower or bath or where water may splash onto the heat lamps.
Applications
- Residential bathrooms
- Ensuites and powder rooms
- Laundry rooms requiring combined ventilation and heating
- Domestic ceiling installations requiring heating, extraction and lighting in one unit
Standards & Compliance
- AS/NZS 3000:2018 Wiring Rules for fixed electrical installations
- AS/NZS 60335.2.30 for electric room-heating appliances
- AS/NZS 60335.2.80 for electric fans
- Mechanical ventilation installation should meet applicable NCC requirements, including AS 1668.2 where relevant
Environmental Benefits
- Tri-colour LED downlight generally uses less power and has a longer service life than conventional lighting technologies
- Replaceable infrared lamps can extend product service life and reduce whole-unit replacement
- Ducted extraction helps manage bathroom moisture when correctly installed and operated
Warranty Information
3-year warranty for the original purchaser against defects in materials or workmanship when installed and operated under normal domestic or residential conditions. Commercial use is generally covered for 1 year; refer to the warranty card for terms and exclusions.
Available Now
Available through authorised Ventair distributors in Australia.
