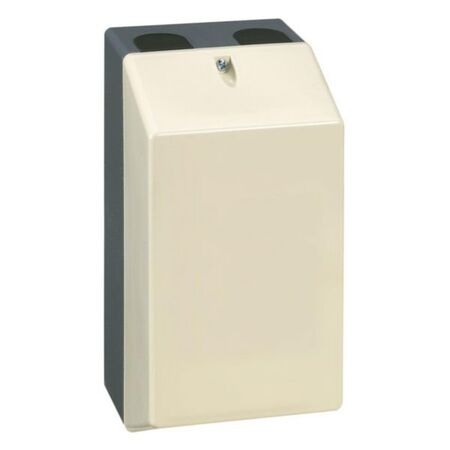

Manual Motor Starter Box for CTX3 3P 9A to 22A | IP66 Rated | NEMA 4X | IK07 Impact Resistance | @EA of 1 | by Legrand
The Manual Motor Starter Box for CTX3 3P 9A to 22A is designed for reliable motor control in industrial and tertiary applications. With an IP66 rating for dust and water protection, NEMA 4X corrosion resistance, and IK07 impact strength, this durable plastic enclosure ensures secure and safe operation. Ideal for surface mounting, it’s perfect for qualified electricians looking to meet local electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Manual Motor Starter Box for CTX3 3P 9A to 22A | IP66 Rated | NEMA 4X | IK07 Impact Resistance | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416890
Alternatively Known As: Manual Motor Starter Enclosure, Motor Starter Box for CTX3, Motor Contactor Starter Box
Technical Specifications
- Compatible with CTX3 3P 9A to 22A AC coil and RTX3 thermal relay up to 22A
- Housing Material: Plastic
- Degree of Protection: IP66
- NEMA Rating: 4X
- Impact Strength: IK07
- Mounting Type: Surface mount
- Transparent Cover: No
- Suitable for Emergency Stop: No
- Dimensions (H x L x W): 150mm x 96mm x 100mm
- Weight: 1.2 kg
Key Features
- Designed to be equipped with CTX3 3P from 9A to 22A AC coil combined with RTX3 thermal relay up to 22A
- Screw mountable for secure installation
- IP66 rated for high protection against dust and water ingress
- NEMA 4X rated for corrosion resistance and protection in harsh environments
- Impact resistance rated IK07
- Plastic housing for durability
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control equipment and compliant with local electrical standards.
Applications
- Tertiary and industrial motor control and protection installations
- Surface mounting motor starter applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable plastic housing reduces need for frequent replacements
- High protection ratings reduce risk of damage and waste
Warranty Information
Standard Legrand warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Legrand Manual Motor Starter Box for CTX3 3P 9A to 22A is available for immediate purchase, ideal for industrial and tertiary motor control applications.
