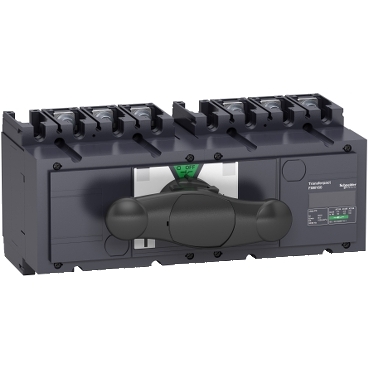

Manual Source Changeover Switch INS250 3P 160A | Reliable Power Transfer | Padlockable Handle | by Clipsal
The Manual Source Changeover Switch INS250 3P 160A is designed for reliable power transfer in commercial and industrial settings. With a robust 3-pole configuration and a rated current of 160A, it ensures safe operation with clear ON/OFF indications. Ideal for switching between mains and generator power sources, this switch is built for demanding environments and features a padlockable handle for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Manual Source Changeover Switch INS250 3P 160A | Reliable Power Transfer | Padlockable Handle | by Clipsal
Brand: Clipsal
SKU: SCH31144
Alternatively Known As: manual changeover switch, source changeover switch, 3 pole changeover switch, 160A manual transfer switch, Clipsal changeover switch
Technical Specifications
- Type: Manual source changeover switch
- Poles: 3 (three-phase)
- Rated current: 160A
- Rated insulation voltage: 690V AC
- Utilization category: AC-22A
- Conformity: IEC 60947-3
- Handle: Direct, padlockable
- Mounting: Panel or enclosure
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 220mm x 120mm x 140mm
- Weight: 4.5 kg
Key Features
- Manual source changeover switch for reliable power transfer
- 3 pole configuration for three-phase systems
- Rated for 160A current capacity
- Robust and durable construction for demanding environments
- Clear ON/OFF indication for safe operation
- Padlockable handle for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical installations
- Backup power systems for critical infrastructure
- Switching between mains and generator power sources
- Panel boards and switchboards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient use of backup power, reducing downtime and energy waste.
- Durable design minimizes replacement frequency, reducing material waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Manual Source Changeover Switch INS250 3P 160A (SCH31144) is available for immediate purchase. Ideal for commercial and industrial applications requiring reliable manual power source switching.
