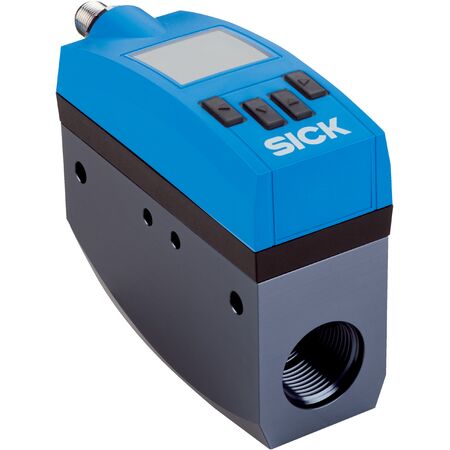

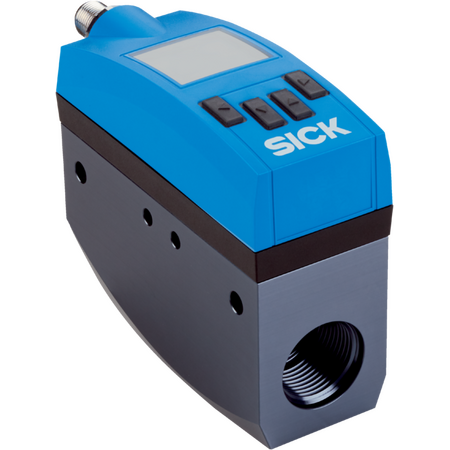

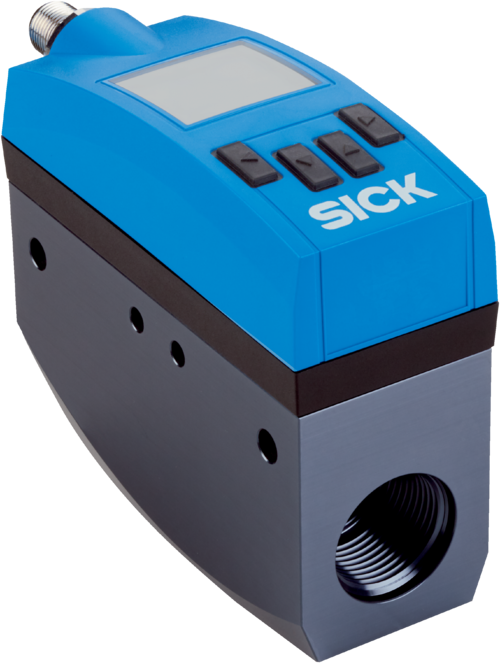

Mass Flow Meter DN20 | High Accuracy & Fast Response | IP65/IP67 Rated | by SICK
The Mass Flow Meter DN20 is designed for precise measurement of mass, volume, and flow rate in compressed air and gases. With a high measurement accuracy of ±3% and a fast response time of less than 0.3 seconds, it's perfect for industrial process monitoring and control. Built for durability with an IP65/IP67 rating, this flow meter ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement accuracy standard: ±3% of measured value + 0.3% of measuring range limit value
- Measurement accuracy enhanced: ±8% of measured value + 1% of measuring range limit value
- Repeatability: ±1.5% of measured value
- Response time: less than 0.3 seconds
- Temperature measurement accuracy: ±2 °C, repeatability ±0.5 °C
- Pressure measurement accuracy: ±1.5% of measuring range end value, non-linearity ±0.5%, repeatability ±0.2%
- Power consumption: <5 W
- Switch-on time: ≤10 seconds
- Connection type: 1 x M12 round connector, 8-pin, X-coded
- Output signals: OPC UA, MQTT, integrated web server, REST API
- Protection class: IP65 (IEC 60529), IP67 (IEC 60529)
- MTTF: >100 years
- Standard communication: IEEE802.3 Clause 25 (100BaseTx); 100 Mbit/sec
- Power supply mode: Mode A and Mode B
- Dimensions (H x L x W): 150mm x 200mm x 100mm
- Weight: 0.755 kg
Key Features
- Calorimetric (flow, temperature) and piezoresistive (pressure) measurement principles
- Measures mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, and temperature
- Nominal width measuring tube DN 20
- Measuring range standard: 9.4 l/min to 1,884.9 l/min, enhanced: 1,884.9 l/min to 2,827.4 l/min
- Process temperature range from –20 °C to +60 °C
- Process pressure range from 0 bar to 16 bar
- Communication interface supports MQTT, OPC UA, integrated web server, REST API
- 128 x 128 pixels adjustable rotary OLED display with 4 pushbuttons
- Power consumption less than 5 W with Power over Ethernet (IEEE802.3af)
- Enclosure rating IP65/IP67
- Robust housing materials including stainless steel and high-grade plastics
- High measurement accuracy and repeatability for flow, temperature, and pressure
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Measurement of mass, volume, flow rate, energy, velocity, pressure, and temperature in compressed air and gases such as Argon, nitrogen, and carbon dioxide
- Industrial process monitoring and control
- Compressed air quality monitoring (ISO 8573-1:2010 [3:4:4])
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables precise monitoring and control of compressed air and gases, improving energy efficiency
- Supports sustainable industrial processes by optimizing resource usage
- Low power consumption reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FTMG-ESD20AXX Mass Flow Meter is available for immediate purchase, ideal for industrial and process control applications requiring precise flow and pressure measurement.
