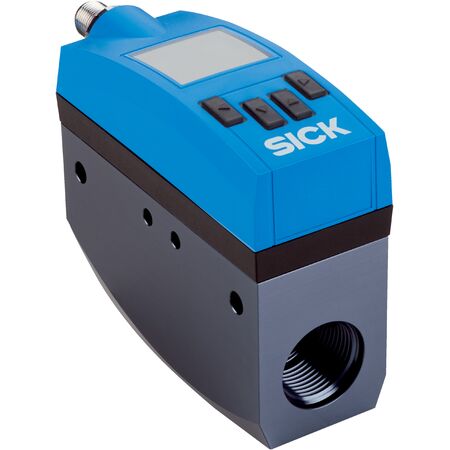

Mass Flow Meter DN25 | Calorimetric & Piezoresistive Measurement | IP65/IP67 Rated | by SICK
The Mass Flow Meter DN25 is designed for precise measurement of mass and volumetric flow rates in compressed air systems. Utilizing calorimetric and piezoresistive principles, it monitors flow, temperature, and pressure, making it ideal for industrial gas applications. With an IP65/IP67 enclosure rating and a user-friendly OLED display, this flow meter ensures durability and ease of use in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 120mm x 150mm x 80mm
- Weight: 0.685 kg
Key Features
- Calorimetric and piezoresistive measurement principles for flow, temperature, and pressure
- Measures mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, and temperature
- Nominal width measuring tube DN 25
- Communication interface supports MQTT, OPC UA, integrated web server, and REST API
- 128 x 128 pixels adjustable rotary OLED display with 4 pushbuttons
- Power over Ethernet (IEEE802.3af) with low power consumption (< 5 W)
- Enclosure rating IP65/IP67 for robust protection
- Process connection G 1 according to DIN ISO 228-1
- Wetted parts made of stainless steel, aluminum, and FKM seal for durability
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Measurement of mass and volumetric flow rates in compressed air systems
- Monitoring and control in industrial gas applications including Argon, nitrogen, and carbon dioxide
- Process temperature and pressure monitoring in manufacturing and automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables precise monitoring and control of compressed air and gases, improving energy efficiency
- Supports sustainable industrial processes by optimizing gas usage and reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK FTMG-ESD25AXX Mass Flow Meter is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise gas flow measurement.
