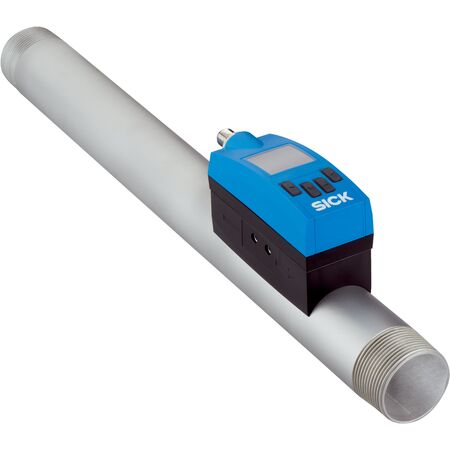

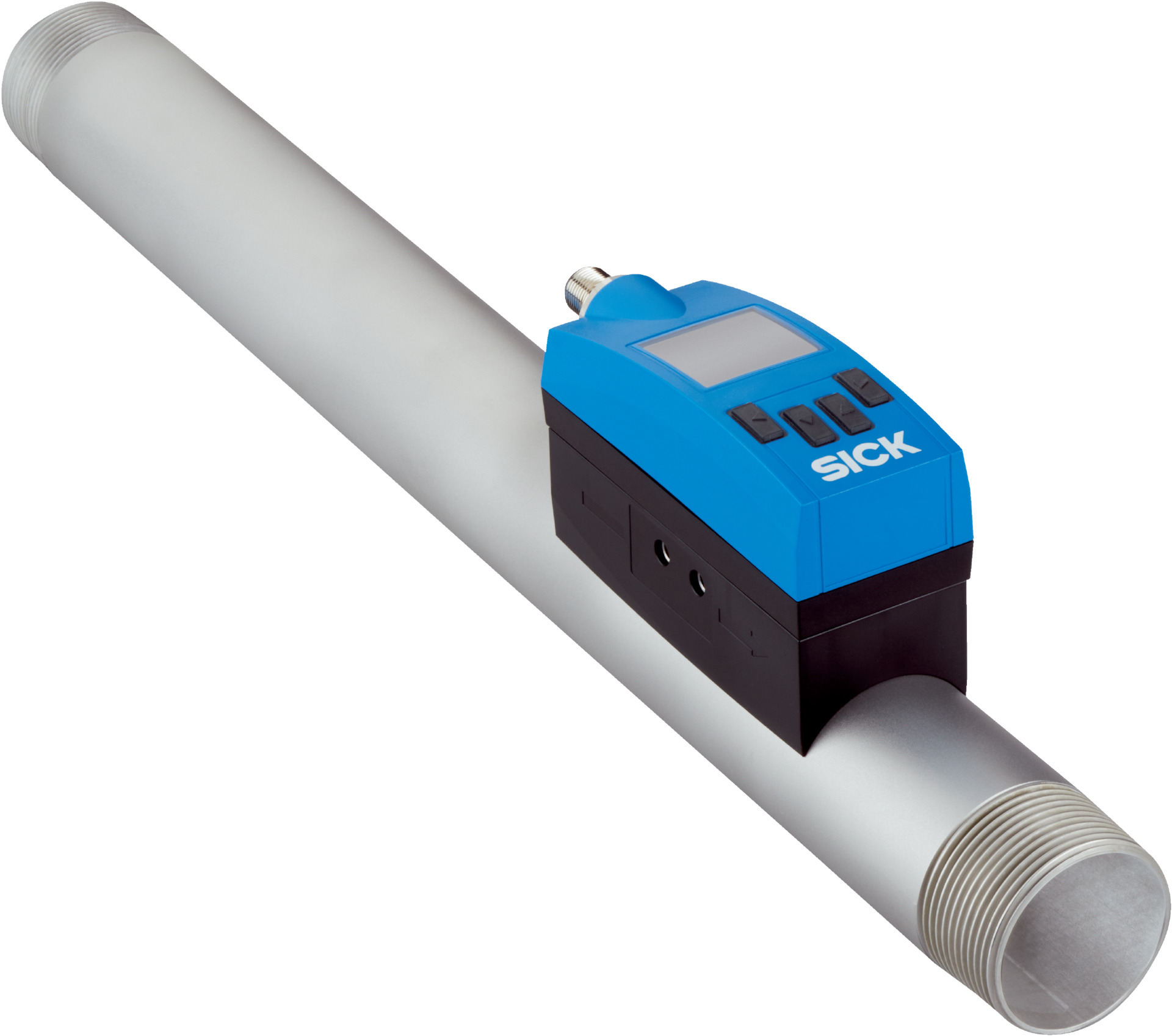

Mass Flow Meter DN40 | Calorimetric & Piezoresistive | IO-Link Communication | IP65/IP67 Rated | by SICK
The Mass Flow Meter DN40 is designed for precise measurement of mass and volumetric flow rates in compressed air systems. Utilizing calorimetric and piezoresistive principles, it offers high accuracy and a robust IP65/IP67 enclosure, making it ideal for industrial gas applications. With IO-Link communication and an adjustable OLED display, this flow meter ensures efficient monitoring and control in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric (flow, temperature), piezoresistive (pressure)
- Medium: Compressed air (ISO 8573-1:2010 [3:4:4]), Argon, nitrogen, carbon dioxide
- Measured values: Mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, temperature
- Nominal width measuring tube: DN 40
- Measuring range standard: 37.7 l/min to 7,539.8 l/min, 0.5 m/s to 100 m/s
- Measuring range enhanced: 7,539.8 l/min to 11,309.7 l/min, 100 m/s to 150 m/s
- Process temperature range: -20 °C to +60 °C
- Process pressure range: 0 bar to 16 bar
- Communication interface: IO-Link V1.1
- Display: 128 x 128 pixels adjustable rotary OLED display with 4 pushbuttons
- Measurement accuracy standard: ±3% of measured value + 0.3% of measuring range limit
- Measurement accuracy enhanced: ±8% of measured value + 1% of measuring range limit
- Repeatability: ±1.5% of measured value
- Response time: <0.3 seconds
- Temperature measurement accuracy: ±2 °C, repeatability ±0.5 °C
- Pressure measurement accuracy: ±1.5% of measuring range end value
- Supply voltage: 17 V DC to 30 V DC
- Power consumption: <4.5 W at 24 V DC without output load
- Connection type: M12 x 1 round connector, 5-pin, A-coded
- Output signals: Analog 4-20 mA, digital/analog switchable outputs, frequency pulse output, IO-Link
- Enclosure rating: IP65/IP67
- MTTF: >100 years
- Dimensions (H x L x W): 150mm x 200mm x 120mm
- Weight: 2.3 kg
Key Features
- Calorimetric and piezoresistive measurement principles for flow, temperature, and pressure
- Measures mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, and temperature
- Nominal width measuring tube DN 40
- Communication via IO-Link V1.1 with adjustable rotary OLED display
- High measurement accuracy with standard and enhanced measuring ranges
- Robust IP65/IP67 rated enclosure for industrial environments
- Multiple output signals including analog, digital, frequency pulse, and IO-Link
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection, calibration, and compliance with safety standards.
Applications
- Measurement of mass and volumetric flow rates in compressed air systems
- Monitoring and control in industrial gas applications including Argon, nitrogen, and carbon dioxide
- Process temperature and pressure measurement in manufacturing and automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise monitoring and control of gas flow, reducing waste and improving energy efficiency
- Supports sustainable industrial processes by optimizing compressed air and gas usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FTMG-ISN40SXX Mass Flow Meter is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise gas flow measurement.
