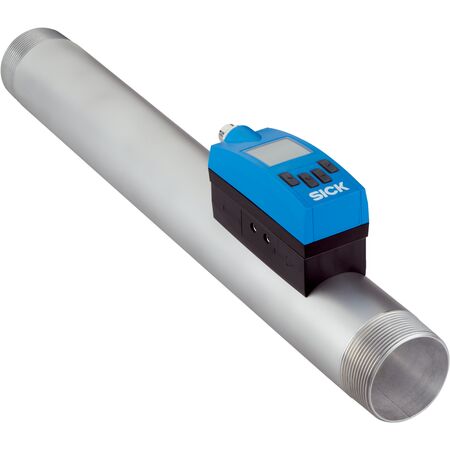

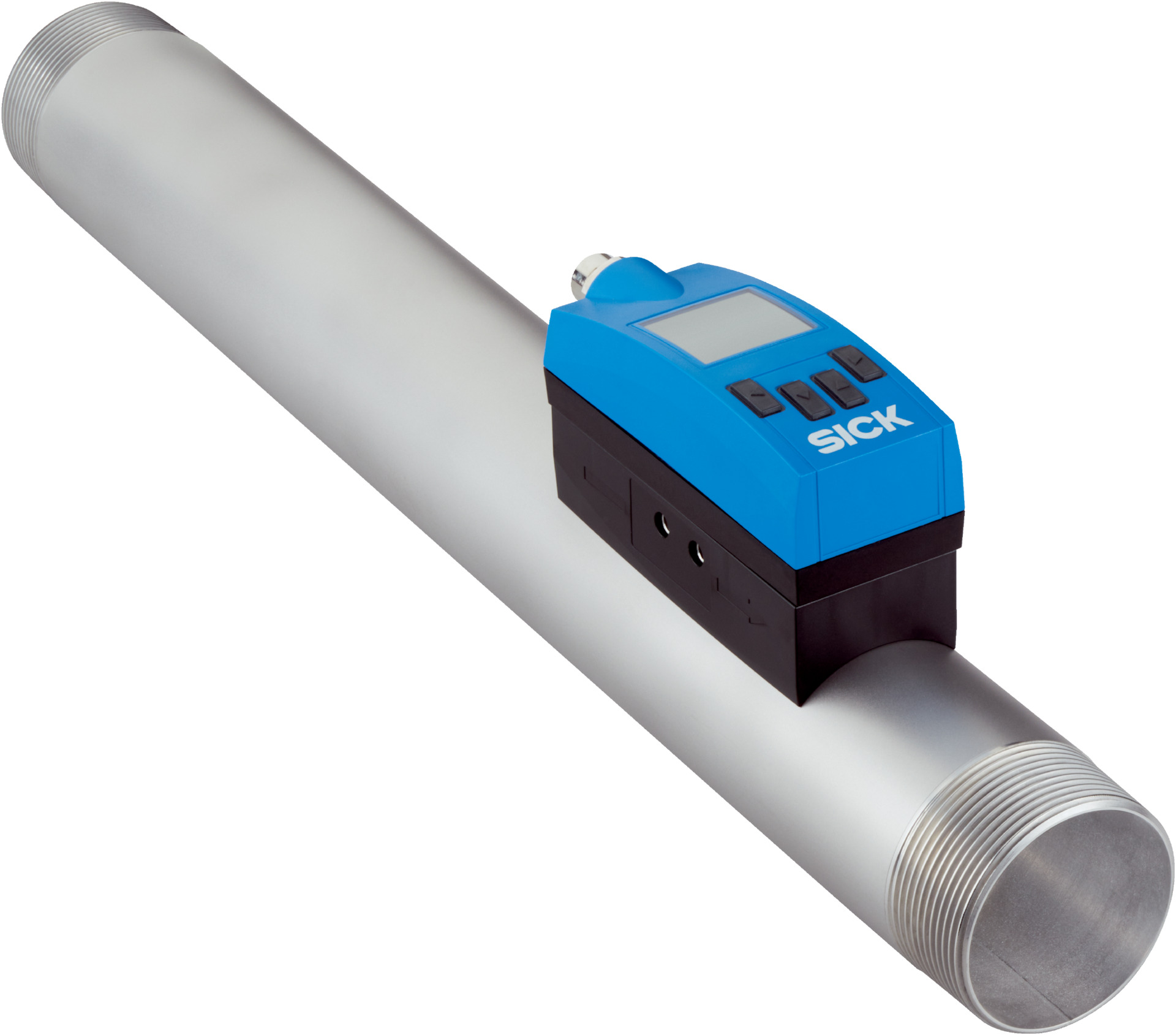

Mass Flow Meter DN50 | Calorimetric & Piezoresistive | IO-Link Communication | IP65/IP67 Rated | by SICK
The Mass Flow Meter DN50 is designed for precise measurement of mass and volumetric flow rates in compressed air systems. Utilizing calorimetric and piezoresistive principles, it offers high accuracy and a robust IP65/IP67 enclosure, making it ideal for industrial applications. With an adjustable OLED display and multiple output signals, this flow meter ensures efficient monitoring and control in various gas applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric (flow, temperature), piezoresistive (pressure)
- Medium: Compressed air (ISO 8573-1:2010 [3:4:4]), Argon, nitrogen, carbon dioxide
- Measured values: Mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, temperature
- Nominal width measuring tube: DN 50
- Measuring range standard: 58.9 l/min to 11,780.9 l/min, 0.5 m/s to 100 m/s
- Measuring range enhanced: 11,780.9 l/min to 17,671.5 l/min, 100 m/s to 150 m/s
- Process temperature range: -20 °C to +60 °C
- Process pressure range: 0 bar to 16 bar
- Communication interface: IO-Link V1.1
- Display: 128 x 128 pixels adjustable rotary OLED display with 4 pushbuttons
- Measurement accuracy standard: ±3% of measured value + 0.3% of measuring range limit
- Measurement accuracy enhanced: ±8% of measured value + 1% of measuring range limit
- Repeatability: ±1.5% of measured value
- Response time: <0.3 seconds
- Temperature measurement accuracy: ±2 °C
- Pressure measurement accuracy: ±1.5% of measuring range end value
- Supply voltage: 17 V DC to 30 V DC
- Power consumption: <4.5 W at 24 V DC
- Connection type: M12 x 1 round connector, 5-pin, A-coded
- Output signals: Analog and digital outputs including frequency pulse and IO-Link
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Material: Stainless steel, PC+ABS, PA66+PA6I GF50, TPE
- Weight: Approx. 2.8 kg
- Dimensions (H x L x W): 150mm x 250mm x 150mm
- Weight: 2.8 kg
Key Features
- Calorimetric and piezoresistive measurement principles for flow, temperature, and pressure
- Measures mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, and temperature
- Nominal width measuring tube DN 50
- Communication via IO-Link V1.1 with multiple output signals including analog and digital
- Adjustable rotary OLED display with 128 x 128 pixels and 4 pushbuttons
- High measurement accuracy with standard and enhanced ranges
- Robust IP65/IP67 rated enclosure for harsh environments
- Long service life with MTTF greater than 100 years
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial flow measurement and electrical connections is recommended to ensure proper setup and safety.
Applications
- Measurement of mass and volumetric flow rates in compressed air systems
- Monitoring and control in industrial gas applications including Argon, nitrogen, and carbon dioxide
- Process temperature and pressure measurement in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise monitoring and control of gas flow, reducing waste and improving energy efficiency
- Supports compliance with environmental regulations through accurate measurement
- Durable design reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FTMG-ISR50SXX Mass Flow Meter is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise flow measurement and control.
