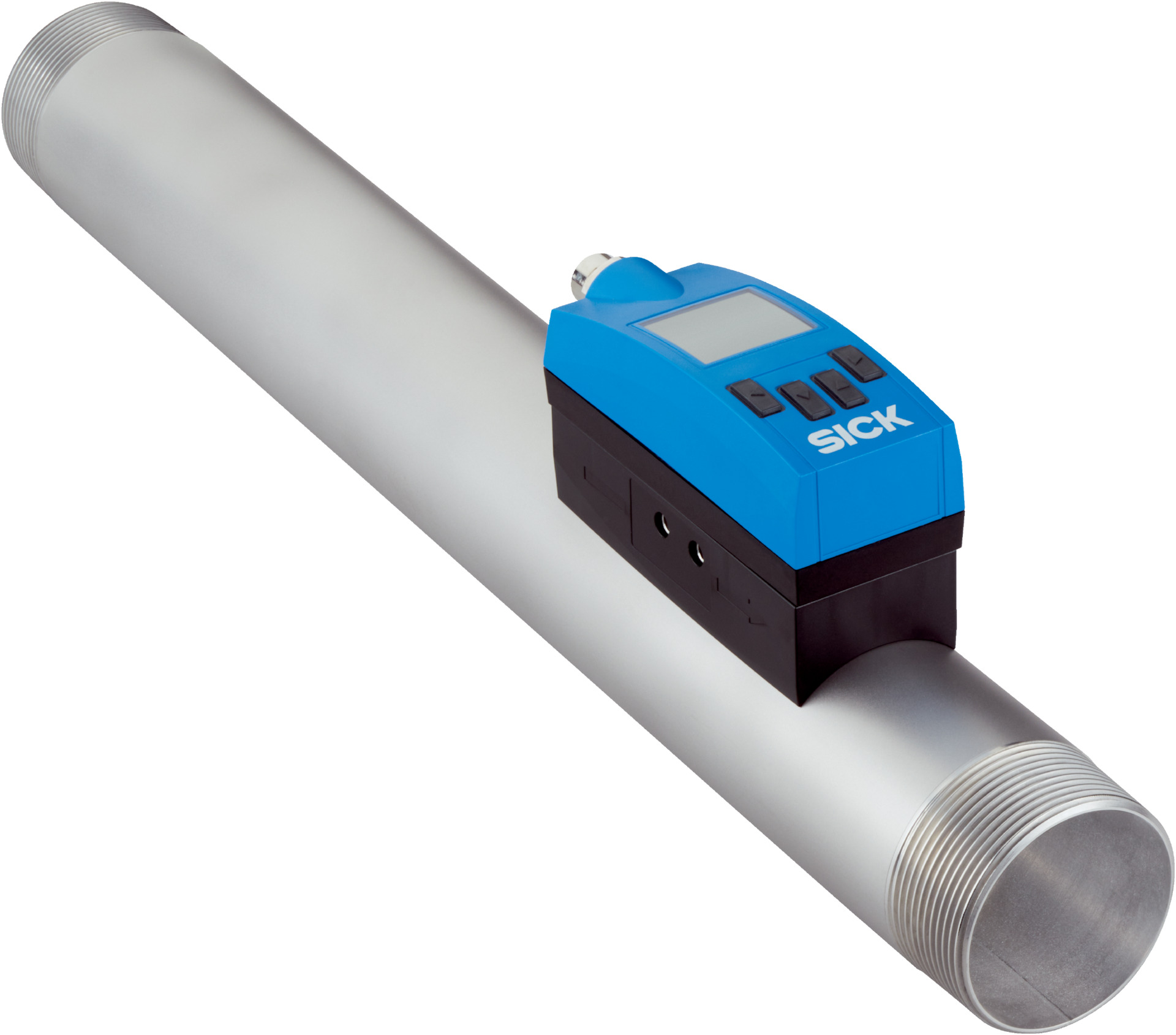

Mass Flow Meter DN50 | Calorimetric & Piezoresistive | IO-Link Interface | IP65/IP67 Rated | by SICK
The Mass Flow Meter DN50 is designed for precise measurement of mass and volumetric flow rates in compressed air systems. With calorimetric and piezoresistive measurement principles, it offers high accuracy and fast response times, making it ideal for industrial gas applications. Its robust IP65/IP67 enclosure ensures reliable performance in harsh environments, while the IO-Link interface allows for seamless communication and integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Calorimetric (flow, temperature), piezoresistive (pressure)
- Medium: Compressed air (ISO 8573-1:2010 [3:4:4]), Argon, nitrogen, carbon dioxide
- Measured values: Mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, temperature
- Nominal width measuring tube: DN 50
- Measuring range standard: 58.9 l/min to 11,780.9 l/min, 0.5 m/s to 100 m/s
- Measuring range enhanced: 11,780.9 l/min to 17,671.5 l/min, 100 m/s to 150 m/s
- Process temperature range: -20 °C to +60 °C
- Process pressure range: 0 bar to 16 bar
- Communication interface: IO-Link V1.1
- Display: 128 x 128 pixels adjustable rotary OLED display
- Measurement accuracy standard: ±3% of measured value + 0.3% of measuring range limit
- Measurement accuracy enhanced: ±8% of measured value + 1% of measuring range limit
- Repeatability: ±1.5% of measured value
- Response time: <0.3 seconds
- Temperature measurement accuracy: ±2 °C
- Pressure measurement accuracy: ±1.5% of measuring range end value
- Supply voltage: 17 V DC to 30 V DC
- Power consumption: <4.5 W at 24 V DC
- Connection type: M12 x 1 round connector, 5-pin, A-coded
- Output signals: Analog and digital outputs including frequency pulse and IO-Link
- Enclosure rating: IP65/IP67
- Material: Stainless steel, PC+ABS, PA66+PA6I GF50, TPE
- Dimensions (H x L x W): 150mm x 200mm x 120mm
- Weight: 2.8 kg
Key Features
- Calorimetric and piezoresistive measurement principles for flow, temperature, and pressure
- Measures mass, volume, mass flow rate, volumetric flow rate, energy, flow velocity, pressure, and temperature
- Nominal width measuring tube DN 50
- Communication via IO-Link V1.1 interface
- 128 x 128 pixels adjustable rotary OLED display with 4 pushbuttons
- High measurement accuracy with standard and enhanced ranges
- Robust IP65/IP67 rated enclosure for harsh environments
- Fast response time under 0.3 seconds
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial flow measurement devices and electrical connections to ensure safety and accuracy.
Applications
- Measurement of mass and volumetric flow rates in compressed air systems
- Monitoring and control in industrial gas applications including Argon, nitrogen, and carbon dioxide
- Process temperature and pressure measurement in industrial environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise monitoring and control of compressed air and gas usage, reducing waste and energy consumption
- Supports efficient process management contributing to lower environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

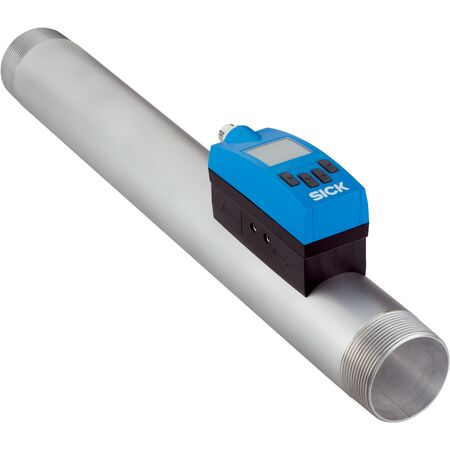

The SICK FTMG-ISN50SXX Mass Flow Meter is available for immediate purchase, ideal for industrial compressed air and gas flow measurement applications.
