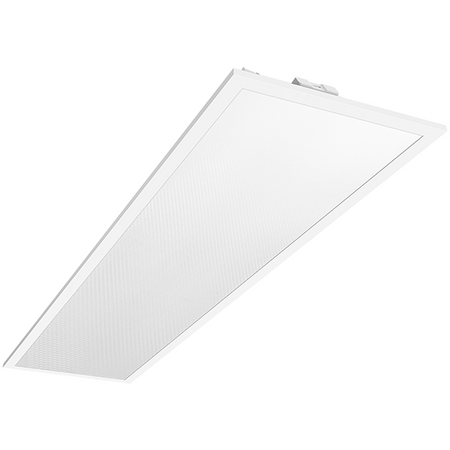

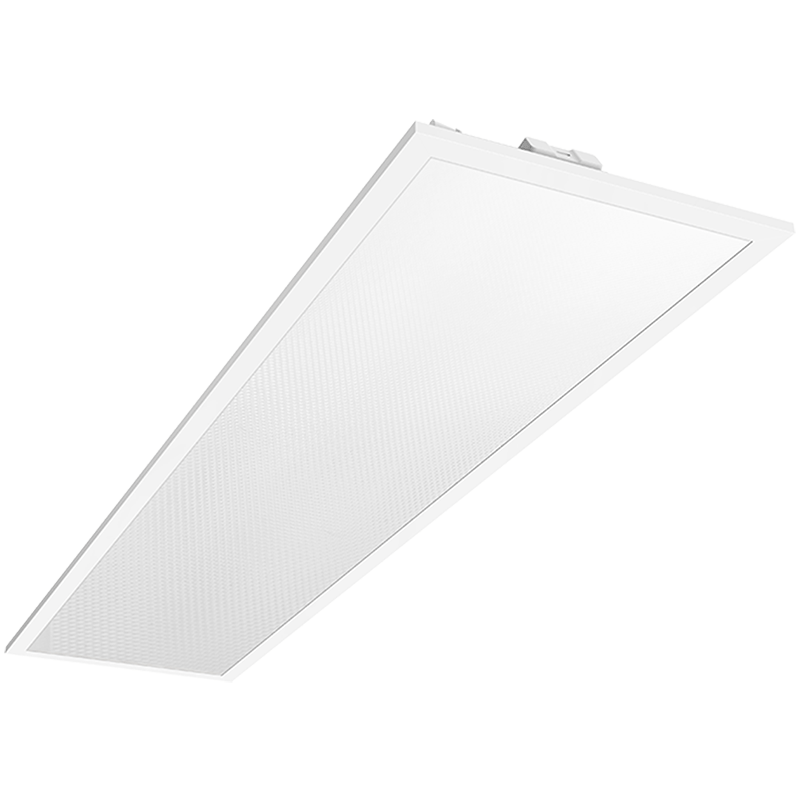

'Matrix G4 DALI Tri-Colour LED Panel 18W 300x600mm White Haneco'

BRAND: Haneco
SKU: MATX0306-HDALI
$193.70 List price: $258.30
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 LED backlit panel features 18W output, 300x600mm size and DALI dimmable Tri-Colour CCT. Ideal for offices and commercial ceilings.'

Alternatively Known As: Haneco Matrix G4 LED Backlit Panel, Haneco 300 x 600mm LED Panel, DALI Tri-Colour LED Ceiling Panel

Technical Specifications
  • Rated Power: 18W
  • Dimming: DALI dimmable
  • Colour Temperature: Tri-colour selectable; typically 4000K, 4500K and 5000K
  • Input Voltage: 220–240V AC
  • Frequency: 50/60Hz
  • Power Factor: Greater than 0.9
  • Beam Angle: 90°
  • Colour Rendering Index: Greater than 90
  • Construction: Steel body with PMMA diffuser
  • Light Distribution: Backlit, even illumination
  • Glare Rating: UGR less than 19
  • Ingress Protection: IP40 front face
  • Insulation Class: Class II
  • Driver: Remote LED driver
  • Finish: White
  • Dimensions (H x L x W): 33mm x 595mm x 295mm
  • Weight: 1.1 kg
Key Features
  • 18W integrated LED panel for commercial interiors
  • DALI dimmable for building lighting control systems
  • Tri-colour CCT selection from a single luminaire
  • Low-glare UGR<19 design suitable for offices and education spaces
  • Backlit construction provides uniform illumination
  • Flicker-free driver design
  • High colour rendering for accurate colour definition
  • Suitable for metric T-bar ceiling grids
  • Suitable for offices, classrooms, meeting rooms, showrooms and medical facilities
Professional Installation Requirements
  • Installation and DALI control wiring should be completed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Confirm compatibility with the DALI control system before installation.
Applications
  • Commercial offices
  • Classrooms and education facilities
  • Meeting rooms and boardrooms
  • Showrooms and function areas
  • Medical and healthcare interiors
  • Storage rooms and general commercial ceilings
Standards & Compliance
  • AS/NZS 60598.1:2017
  • AS/NZS 60598.2.2:2016
  • AS/NZS 61347.1:2016
  • AS/NZS 61347.2.13:2018
  • AS CISPR 15:2017
  • AS/NZS 3820 essential safety requirements
Environmental Benefits
  • LED technology reduces energy consumption compared with conventional fluorescent panel lighting
  • Long service life can reduce replacement frequency and lighting waste
  • High efficacy supports lower operating energy use
  • Steel housing and other metal components can be recovered through established recycling streams
Warranty Information

Haneco standard product warranty is 3 years against manufacturing defects unless otherwise stated. Matrix G4 product literature identifies a 5-year product warranty; confirm the applicable warranty term for this DALI variant at purchase. Warranty claims are handled through the original wholesaler.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
