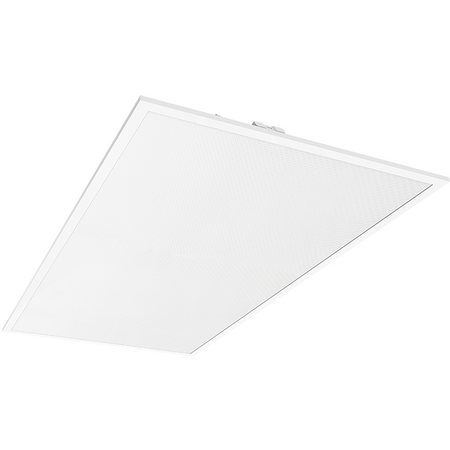

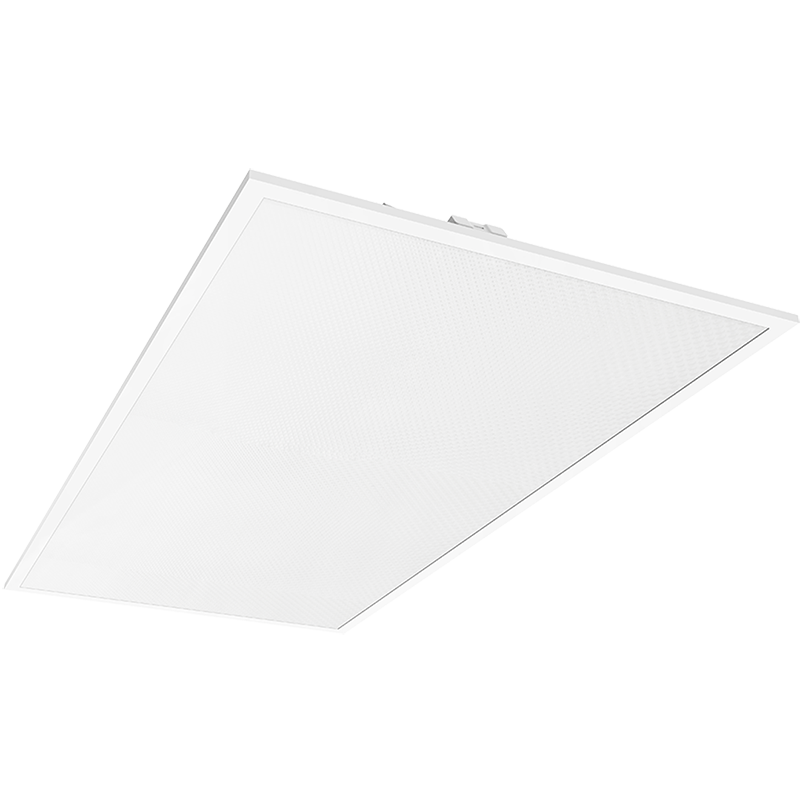

'Matrix G4 DALI Tri-Colour LED Panel 40W 600x1200mm White Haneco'

BRAND: Haneco
SKU: MATX0612-HDALI
$305.10 List price: $406.80
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 LED backlit panel features 40W output, 600x1200mm size and DALI dimmable Tri-Colour CCT. Ideal for offices and commercial ceilings.'

Alternatively Known As: Haneco MATRIX G4 DALI panel, MATX0312-G4-TDALI, 40W LED backlit panel, tri-CCT LED panel

Technical Specifications
  • Power: 40 W
  • Dimming: DALI
  • Colour Temperature: 4000K / 4500K / 5000K
  • Colour Rendering Index: CRI >90
  • Unified Glare Rating: UGR <19
  • Beam Angle: 90°
  • Ingress Protection: IP40
  • Input Voltage: 220–240 V AC, 50/60 Hz
  • Power Factor: >0.9
  • Driver: Remote DALI driver
  • Flicker-Free: Yes
  • Body Material: Steel
  • Diffuser Material: PMMA
  • Electrical Classification: Class II
  • Operating Ambient Temperature: -20°C to 45°C
  • Projected Lifespan: >85,000 hours at Ta 40°C, L80B10
  • Mounting Type: Metric T-bar ceiling grid
  • Product Colour: White, RAL 9003
  • Dimensions (H x L x W): 33mm x 1195mm x 295mm
  • Weight: 2.3 kg
Key Features
  • DALI dimmable for integration with commercial lighting control systems
  • Tri-colour CCT selection from 4000K, 4500K and 5000K
  • Backlit panel design with low-glare illumination
  • Flicker-free driver for improved visual comfort
  • High colour rendering suitable for workplaces, education and healthcare environments
  • Cyanosis-compliant lighting for applicable medical facilities
  • Suitable for metric T-bar ceiling grids
  • Overload and short-circuit protection
  • Haneco MATRIX G4 range contributes to Green Star building projects
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. DALI control wiring and commissioning should be completed by a suitably qualified electrical contractor.
Applications
  • Commercial offices and open-plan workplaces
  • Showrooms and retail spaces
  • Boardrooms and meeting rooms
  • Education facilities and classrooms
  • Medical and healthcare facilities
  • Function areas and storage rooms
Standards & Compliance
  • AS/NZS 60598.1 for general requirements and tests for luminaires
Environmental Benefits
  • LED efficiency can reduce energy consumption compared with conventional fluorescent panel lighting
  • Projected service life exceeding 85,000 hours can reduce replacement frequency and associated waste
  • Tri-colour selection supports appropriate light levels and colour temperature for different applications
  • Steel and PMMA construction materials can be separated for recycling at end of service life
  • Suitable for Green Star-oriented building projects
Warranty Information

Haneco provides a 5-year product warranty for the MATRIX G4 panel range, subject to the manufacturer's warranty terms and correct installation by a licensed electrician.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
