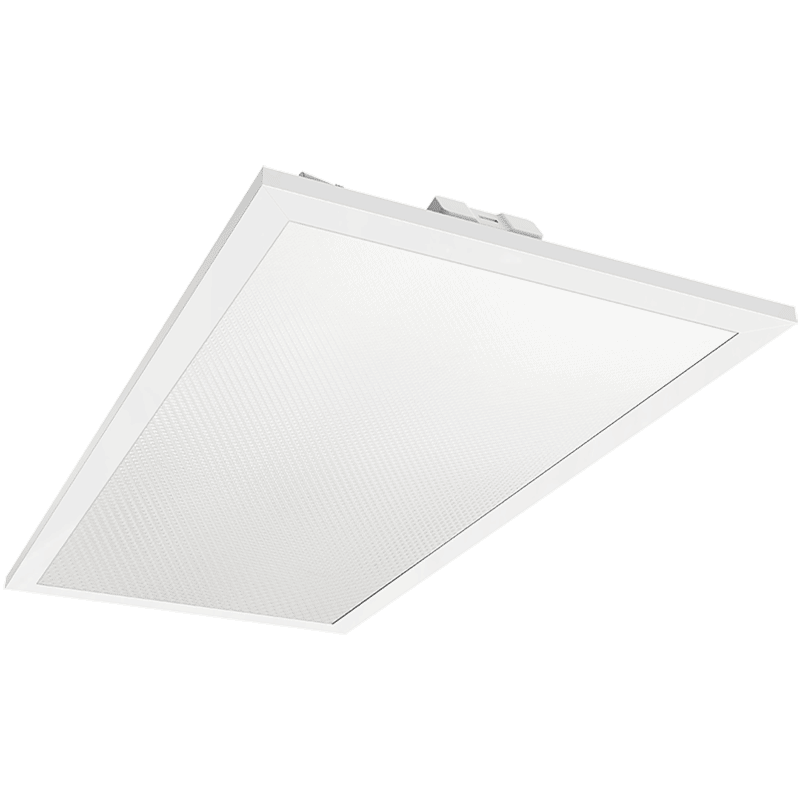

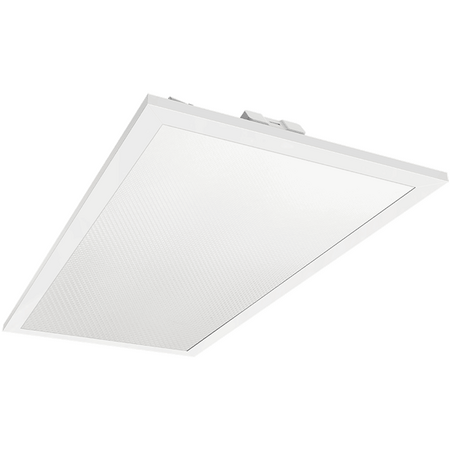

'Matrix G4 DALI Tri-Colour LED Panel 40W 600x600mm White Haneco'

BRAND: Haneco
SKU: MATX0606-HDALI
$193.70 List price: $258.30
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 LED backlit panel features 40W output, 600x600mm size and DALI dimmable Tri-Colour CCT. Ideal for offices and commercial ceilings.'

Alternatively Known As: Haneco MATRIX G4 LED Panel, MATX0606-G4-TDALI, 600 x 600 LED Ceiling Panel, DALI LED Panel Light

Technical Specifications
  • Product Code: MATX0606-G4-TDALI
  • Rated Power: 40 W
  • Dimming: DALI
  • Colour Temperature: Tri-colour selectable
  • Dimensions: 595 x 595 x 33 mm
  • Input Voltage: 220–240 V AC, 50/60 Hz
  • Power Factor: Greater than 0.9
  • Ingress Protection: IP40
  • Colour Rendering Index: Greater than 90
  • Beam Angle: 90°
  • Electrical Classification: Class II
  • Body Material: Steel
  • Diffuser Material: PMMA
  • Mounting Type: Metric T-bar ceiling grid
  • Operating Temperature: -20°C to 45°C
  • Projected Lifespan: More than 85,000 hours at Ta 40°C, L80B10
  • Colour: White, RAL 9003
  • Lumen Output: Not published for the DALI variant
  • Dimensions (H x L x W): 33mm x 595mm x 595mm
  • Weight: 1.96 kg
Key Features
  • 40 W commercial LED panel for 600 x 600mm ceiling grids
  • DALI dimmable for integration with lighting control systems
  • Tri-colour CCT selection from a single fitting
  • Low-glare UGR below 19 design
  • Flicker-free driver
  • CRI greater than 90 for accurate colour rendering
  • Cyanosis-compliant for suitable healthcare applications
  • Suitable for education, office, showroom, meeting room and commercial interiors
  • IP40-rated indoor luminaire
  • Designed to contribute towards Green Star building outcomes
Professional Installation Requirements
  • Installation and DALI connection must be completed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian electrical installation requirements.
Applications
  • Commercial offices
  • Classrooms and education facilities
  • Showrooms and retail interiors
  • Boardrooms and meeting rooms
  • Function areas and reception spaces
  • Medical and healthcare facilities
  • Storage and general indoor commercial areas
Standards & Compliance
  • AS/NZS 60598.1:2017 — Luminaires, general requirements and tests for luminaires operating up to 1,000 V. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-60598-1-2017-99555_saig_as_as_209293/))
  • AS/NZS 3000:2018 — Electrical installations, including requirements relevant to mains-connected lighting installation
Environmental Benefits
  • High-efficiency LED technology can reduce energy consumption compared with conventional fluorescent panel lighting
  • Long projected service life can reduce replacement frequency and associated material waste
  • LED light source contains no mercury associated with fluorescent lamps
  • Steel and aluminium components can be recovered through appropriate recycling streams
  • Contributes towards Green Star building certification outcomes according to Haneco product information
Warranty Information

Haneco lists the Matrix G4 with a 5-year product warranty. Haneco's warranty process provides direct replacement for qualifying manufacturing defects, subject to the applicable terms and installation requirements. ([haneco.com.au](https://haneco.com.au/products/matrix-g4/))

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors. ([haneco.com.au](https://haneco.com.au/contact/?utm_source=openai))
