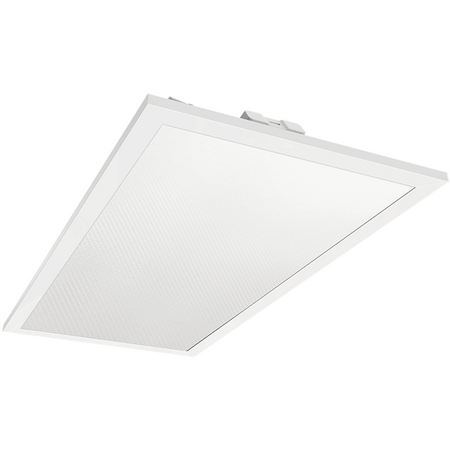

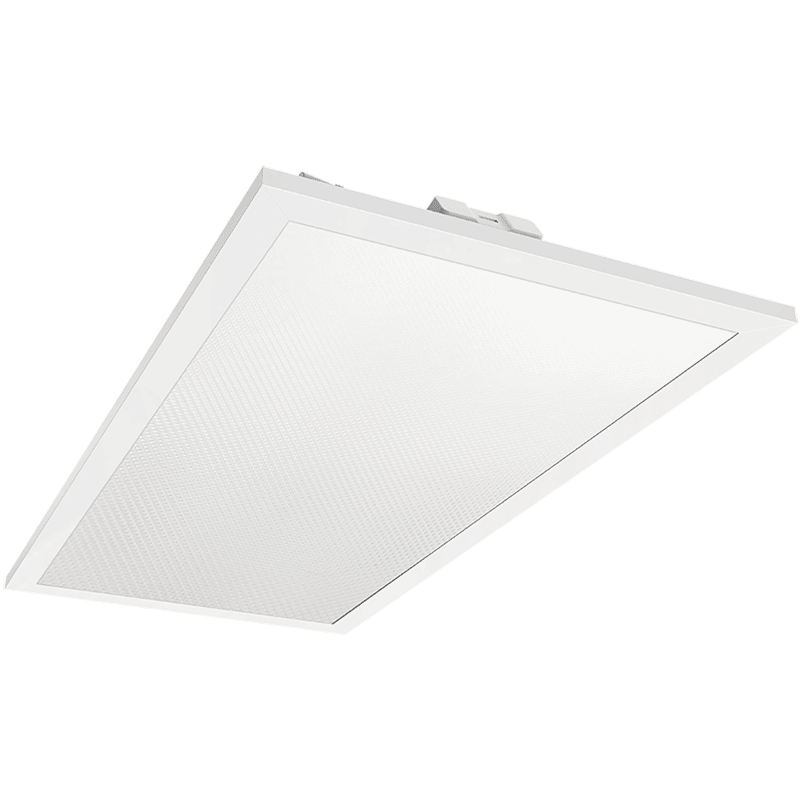

'Matrix G4 Dimmable Tri-Colour Panel 25W 600x600mm White Haneco'

BRAND: Haneco
SKU: MATX0606-25DIM
$157.40 List price: $209.90
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 LED backlit panel features 25W output, 600x600mm size and dimmable Tri-Colour CCT. Ideal for offices and commercial ceilings.'

Alternatively Known As: Haneco MATRIX G4 600 x 600 LED Panel, MATX0606-G4-25DIM, Tri-Tone LED Panel

Technical Specifications
  • Product Code: MATX0606-G4-25DIM
  • Power: 25 W
  • Dimming Type: Phase-cut dimming
  • Colour Temperature: 4000 K / 4500 K / 5000 K selectable
  • Input Voltage: 220–240 V AC, 50/60 Hz
  • Colour Rendering Index: CRI >90
  • Beam Angle: 90°
  • Ingress Protection: IP40
  • Power Factor: >0.9
  • Driver: Remote driver
  • Diffuser Material: PMMA
  • Body Material: Steel
  • Body and Fascia Colour: White, RAL 9003
  • Electrical Classification: Class II
  • Operating Ambient Temperature: -20°C to 45°C
  • Lifespan: More than 85,000 hours at Ta 40°C, L80B10
  • Mounting Type: Metric T-bar ceiling grid
  • Glare Rating: UGR <19
  • Flicker: Flicker-free
  • Dimensions (H x L x W): 33mm x 595mm x 595mm
  • Weight: 1.96 kg
Key Features
  • 25 W dimmable LED panel for 600 x 600 mm ceiling grids
  • Selectable 4000 K, 4500 K and 5000 K colour temperatures
  • Phase-cut dimming capability
  • Low-glare UGR <19 design
  • CRI greater than 90 for accurate colour rendering
  • Flicker-free driver
  • Cyanosis-compliant lighting for suitable medical applications
  • Suitable for offices, classrooms, meeting rooms and commercial interiors
  • White steel body with PMMA diffuser
Professional Installation Requirements
  • Installation and mains electrical connection must be completed by a licensed electrician in accordance with the installation instructions and applicable Australian wiring requirements.
Applications
  • Office and commercial ceilings
  • Classrooms and education facilities
  • Boardrooms and meeting rooms
  • Showrooms and function areas
  • Medical facilities requiring high colour rendering
  • Storage and general indoor work areas
Standards & Compliance
  • AS/NZS 60598.1: General requirements and tests for luminaires
  • AS/NZS 60598.2.2: Particular requirements for recessed luminaires
Environmental Benefits
  • LED technology provides high luminous efficacy and reduced operating energy compared with conventional fluorescent panels
  • Selectable dimming and colour temperature can help reduce energy use when full output is not required
  • Long rated service life of more than 85,000 hours can reduce replacement frequency and material waste
  • Supports Green Star-oriented building projects through efficient LED lighting design
Warranty Information

5-year product warranty against manufacturing defects, subject to Haneco warranty terms and installation by an authorised electrician. Warranty claims are handled through the original electrical wholesaler. ([haneco.com.au](https://haneco.com.au/products/matrix-g4/))

Available Now

Available through Haneco and authorised Australian electrical wholesalers or local electricians. ([haneco.com.au](https://haneco.com.au/contact/?utm_source=openai))
