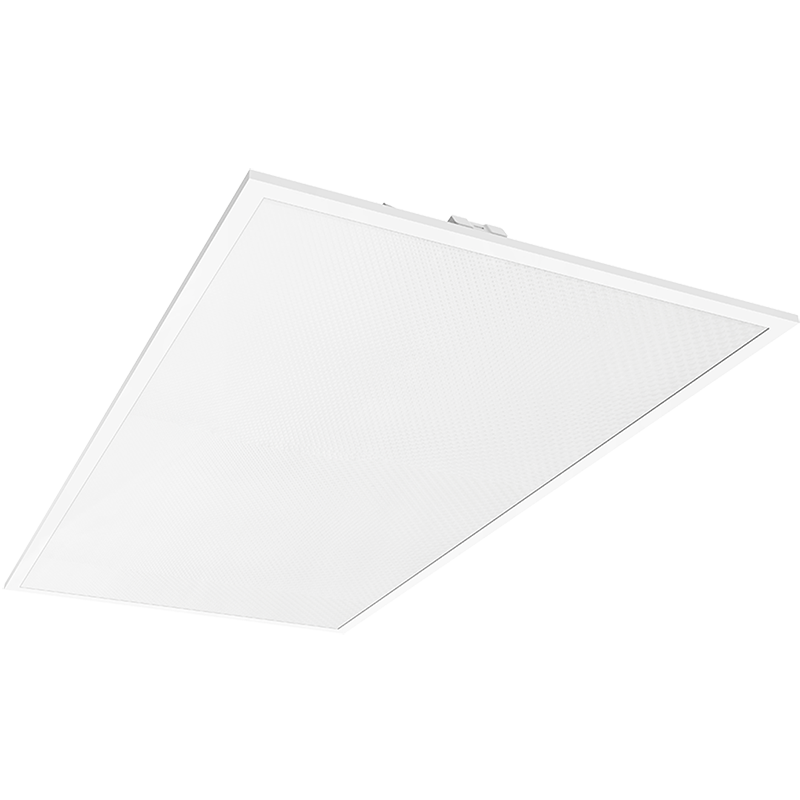

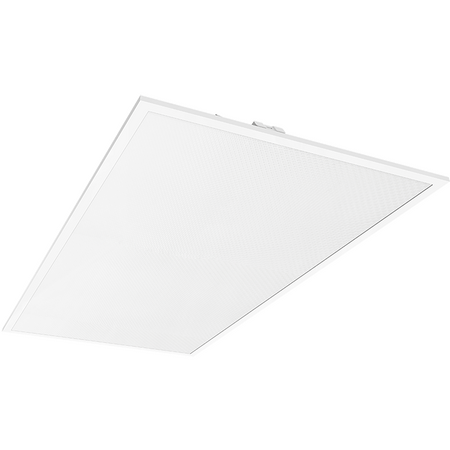

'Matrix G4 Dimmable Tri-Colour Panel 40W 600x1200mm White Haneco'

BRAND: Haneco
SKU: MATX0612-40DIM
$275.60 List price: $367.50
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 LED backlit panel features 40W output, 600x1200mm size and dimmable Tri-Colour CCT. Ideal for offices and commercial ceilings.'

Alternatively Known As: Haneco Matrix G4 LED Panel, Haneco MATX0612-G4-40DIM, Dimmable Backlit LED Panel, Tri-Colour LED Ceiling Panel

Technical Specifications
  • Product Code: MATX0612-G4-40DIM
  • Rated Power: 40 W
  • Dimming Type: Phase-cut dimming
  • Colour Temperature: 4000 K / 4500 K / 5000 K selectable
  • Input Voltage: 220–240 V AC, 50/60 Hz
  • Power Factor: Greater than 0.9
  • Insulation Classification: Class II
  • Ingress Protection: IP40 front face
  • Diffuser Material: PMMA
  • Body Material: Steel
  • Beam Angle: 90°
  • Colour Rendering Index: CRI greater than 90
  • Glare Rating: UGR less than 19
  • Operating Temperature: -20°C to 45°C
  • Connection Type: DC connector
  • Lifespan: Greater than 85,000 hours at Ta 40°C, L80B10
  • Mounting Type: Metric T-bar ceiling grid
  • Product Colour: White, RAL 9003
  • Dimensions (H x L x W): 33mm x 1195mm x 595mm
  • Weight: 4.65 kg
Key Features
  • Tri-colour selectable lighting with 4000 K, 4500 K and 5000 K settings
  • Phase-cut dimmable driver for adjustable light output
  • Backlit LED design for even illumination and improved heat dissipation
  • Low-glare optical performance with UGR less than 19
  • Flicker-free driver design
  • CRI greater than 90 for accurate colour rendering
  • Cyanosis-compliant design for suitable medical and healthcare applications
  • Suitable for offices, showrooms, meeting rooms, education facilities and commercial interiors
  • Five-year product warranty stated for the MATRIX G4 range
Professional Installation Requirements
  • Installation and mains electrical connection should be completed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's installation instructions and the requirements of the selected dimmer. Confirm dimmer compatibility before installation.
Applications
  • Commercial offices and open-plan workspaces
  • Classrooms and education facilities
  • Showrooms and retail interiors
  • Boardrooms, meeting rooms and function areas
  • Medical and healthcare facilities
  • Storage rooms and other commercial ceiling installations
Standards & Compliance
  • AS/NZS 60598.1:2017 for luminaires – general requirements and tests
  • AS/NZS 60598.2.2:2016 for recessed luminaires
  • AS/NZS 61347.1:2016 for lamp controlgear – general and safety requirements
  • AS/NZS 61347.2.13:2018 for controlgear for LED modules
  • AS CISPR 15:2017 for radio disturbance characteristics of electrical lighting equipment
Environmental Benefits
  • LED technology provides lower energy consumption than conventional fluorescent panel lighting for comparable illumination
  • High efficacy and long rated life can reduce operating energy use, maintenance frequency and replacement waste
  • The steel body and aluminium-based lighting components can be recovered through appropriate metal recycling streams
  • Designed to support Green Star-oriented commercial building projects
Warranty Information

Haneco provides a five-year product warranty for the MATRIX G4 range, subject to the manufacturer's warranty terms, correct installation and use within published specifications. ([haneco.com.au](https://haneco.com.au/products/matrix-g4/))

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors. ([haneco.com.au](https://haneco.com.au/contact/?utm_source=openai))
