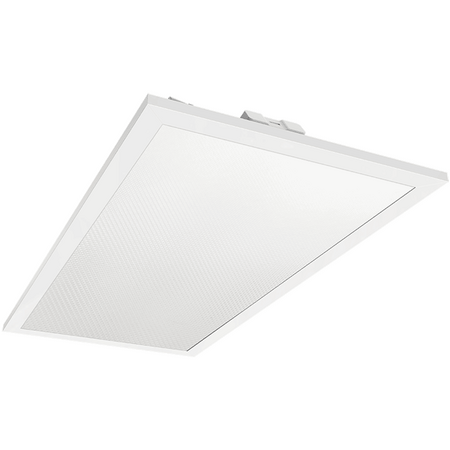

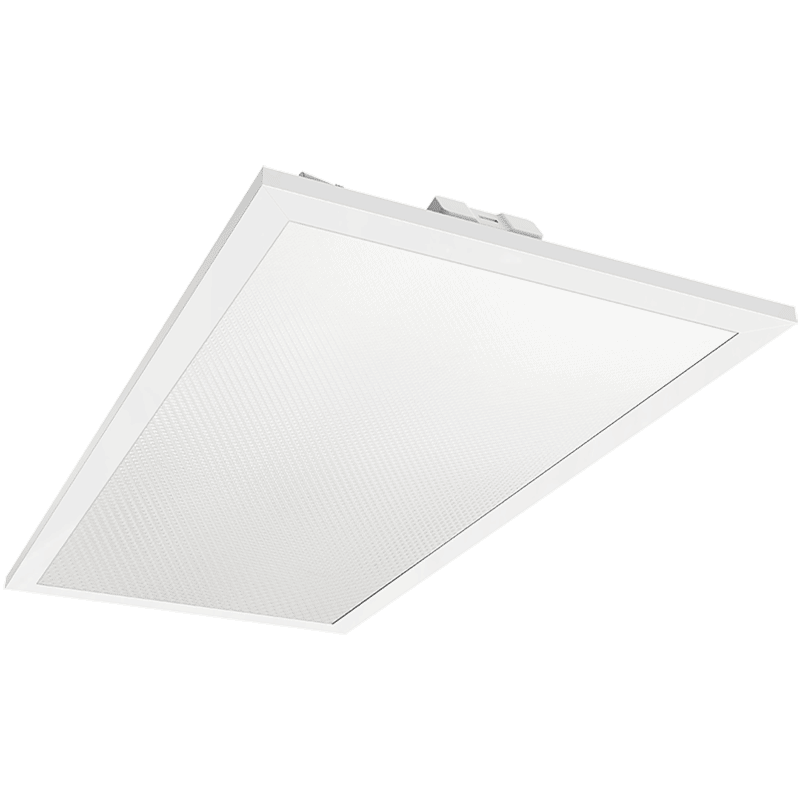

'Matrix G4 Dimmable Tri-Colour Panel 40W 600x600mm White Haneco'

BRAND: Haneco
SKU: MATX0606-40DIM
$174.40 List price: $232.50
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 LED backlit panel features 40W output, 600x600mm size and dimmable Tri-Colour CCT. Ideal for offices and commercial ceilings.'

Alternatively Known As: Haneco Matrix TRI Backlit Panel, Haneco MATX060640DIM, Dimmable LED Ceiling Panel

Technical Specifications
  • Rated Power: 40 W
  • Colour Temperature: 4000 / 4500 / 5000 K
  • Dimming: Dimmable via remote HD-40-DC driver
  • Input Voltage: 220–240 V AC, 50/60 Hz
  • Lumen Output: Approximately 4,000–4,800 lm, dependent on CCT and driver setting
  • Colour: White
  • Ingress Protection: IP40 front face
  • Insulation Class: Class II
  • Power Factor: Greater than 0.9
  • Mounting Type: Metric T-bar ceiling grid
  • Connection: DC connector with remote driver
  • Body Material: Steel
  • Diffuser Material: PMMA
  • Beam Angle: Approximately 110°
  • Operating Temperature: Approximately -20 to 40°C
  • Dimensions (H x L x W): 33mm x 595mm x 595mm
  • Weight: 2 kg
Key Features
  • 40W backlit LED panel for commercial ceiling applications
  • Tri-colour CCT selection for 4000K, 4500K or 5000K lighting
  • Dimmable configuration supplied with remote HD-40-DC driver
  • Low-profile 33mm panel body
  • Suitable for metric T-bar ceiling grids
  • White RAL 9003 fascia finish
  • Flicker-free LED driver design
  • High colour rendering for office, education and commercial environments
  • Designed for low-glare, even illumination
  • Suitable for offices, showrooms, meeting rooms and education facilities
Professional Installation Requirements
  • Installation and electrical connection must be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Confirm compatibility between the supplied driver, dimmer and control system before installation.
Applications
  • Office lighting
  • Commercial suspended ceilings
  • Classrooms and education facilities
  • Showrooms and retail interiors
  • Boardrooms and meeting rooms
  • Function areas
  • Medical and healthcare facilities
  • Storage and general indoor areas
Standards & Compliance
  • AS/NZS 60598.1:2017
  • AS/NZS 60598.2.2:2016
  • AS/NZS 61347.1:2016
  • AS/NZS 61347.2.13:2018
  • AS CISPR 15:2017
  • AS/NZS 3000:2018 installation requirements
Environmental Benefits
  • LED technology provides lower energy consumption than equivalent fluorescent panel lighting
  • High efficacy reduces electricity use and associated operating emissions
  • Long service life helps reduce replacement frequency and lighting waste
  • Steel and aluminium components can be recovered through appropriate metal recycling streams
  • Tri-colour selection reduces the need to stock separate colour-temperature fittings
  • Flicker-free, power-efficient operation supports efficient commercial lighting designs
Warranty Information

5-year product warranty against manufacturing defects, subject to Haneco warranty terms, correct installation by a licensed electrician and use within the published specifications. Warranty is generally provided as a direct replacement and excludes removal and reinstallation labour unless otherwise agreed under applicable Haneco programmes.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
