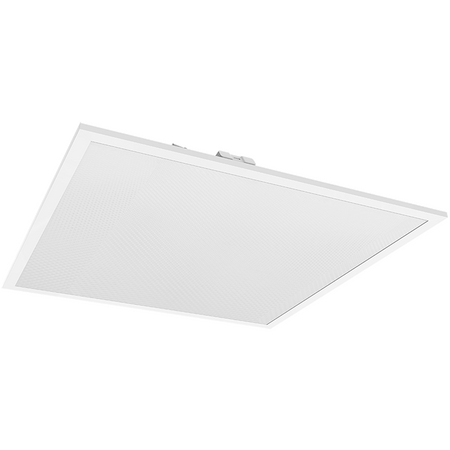

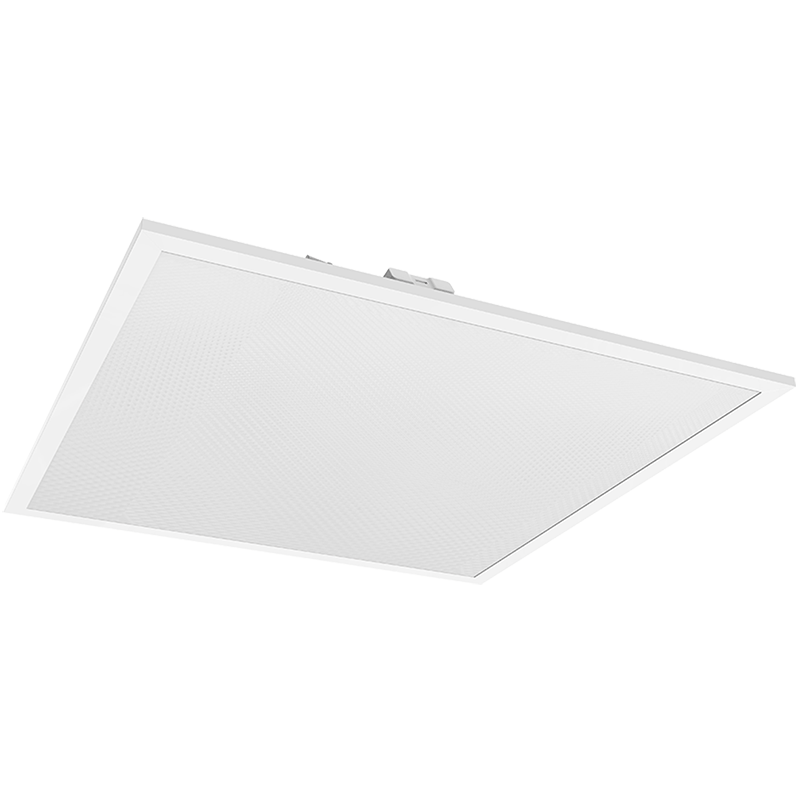

'Matrix G4 Dimmable Tri-Colour UGR19 Panel 40W 300x1200mm White Haneco'

BRAND: Haneco
SKU: MATX0312-40DIM
$162.20 List price: $216.30
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 panel features 40W output, 300x1200mm size and UGR<19 low glare with CRI>90. Ideal for offices and workplaces needing low glare.'

Alternatively Known As: Haneco Matrix G4 LED Panel, Haneco 40W LED Panel Light, 1200 x 300mm Low-Glare LED Panel

Technical Specifications
  • Rated Power: 40 W
  • Lumen Output: Up to 4700 lm
  • Efficacy: Up to 115 lm/W
  • Colour Temperature: 4000 K / 4500 K / 5000 K
  • Dimming Method: Phase-cut dimmable
  • Colour Rendering Index: CRI >90
  • Unified Glare Rating: UGR <19
  • Beam Angle: 90°
  • Input Voltage: 220–240 Vac, 50/60 Hz
  • Power Factor: >0.9
  • IP Rating: IP40 front face
  • Electrical Classification: Class II
  • Body Material: Steel
  • Diffuser Material: PMMA
  • Fascia Colour: White, RAL9003
  • Operating Ambient Temperature: -20°C to 40°C
  • Projected Lifespan: >85,000 hours at Ta 40°C, L80B10
  • Driver: Remote, 24–48 Vdc output
  • Mounting Type: Metric T-bar ceiling grid
  • Dimensions (H x L x W): 33mm x 1195mm x 295mm
  • Weight: 2.3 kg
Key Features
  • Tri-colour selectable operation at 4000K, 4500K and 5000K
  • Phase-cut dimmable for lighting level adjustment
  • Low-glare UGR<19 performance for visually comfortable workspaces
  • High colour rendering with CRI>90
  • Flicker-free driver
  • Cyanosis compliant for suitable medical and healthcare applications
  • Department of Education compliant
  • Suitable for Greenstar-focused building projects
  • Remote driver and DC connector supplied
  • Long projected service life exceeding 85,000 hours
Professional Installation Requirements
  • Installation must be performed by a licensed or suitably qualified electrician in accordance with the manufacturer’s instructions, applicable wiring rules and relevant Australian standards. Confirm dimmer compatibility before installation.
Applications
  • Offices and commercial workplaces
  • Classrooms and education facilities
  • Boardrooms and meeting rooms
  • Showrooms and retail interiors
  • Function areas
  • Storage rooms
  • Medical facilities
  • Low-glare general indoor lighting installations
Standards & Compliance
  • AS/NZS 60598.1:2017
  • AS/NZS 60598.2.2:2016
  • AS/NZS 61347.2.13:2018
  • AS/NZS 61347.1:2016
  • AS CISPR 15:2017
  • AS/NZS 3820 essential safety requirements for electrical equipment
Environmental Benefits
  • High efficacy of up to 115 lm/W can reduce electricity consumption compared with less efficient lighting technologies
  • Long projected lifespan exceeding 85,000 hours can reduce replacement frequency and associated waste
  • Tri-colour selection allows one fitting to suit multiple lighting requirements, potentially reducing product replacement during project changes
  • Suitable for Greenstar-focused projects through energy-efficient LED operation
Warranty Information

5-year product warranty against manufacturing defects, subject to Haneco warranty terms and installation by a licensed electrician. Warranty is provided as a direct replacement and excludes removal and reinstallation labour unless separately covered under Haneco Gold.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
