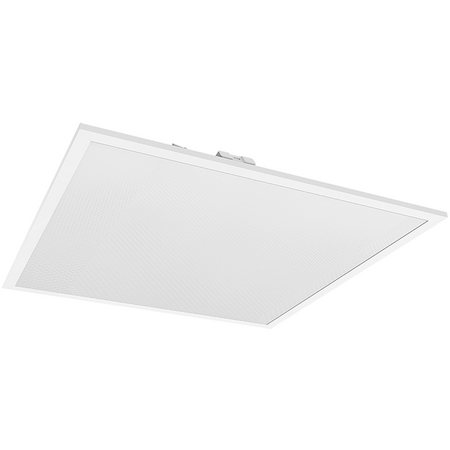

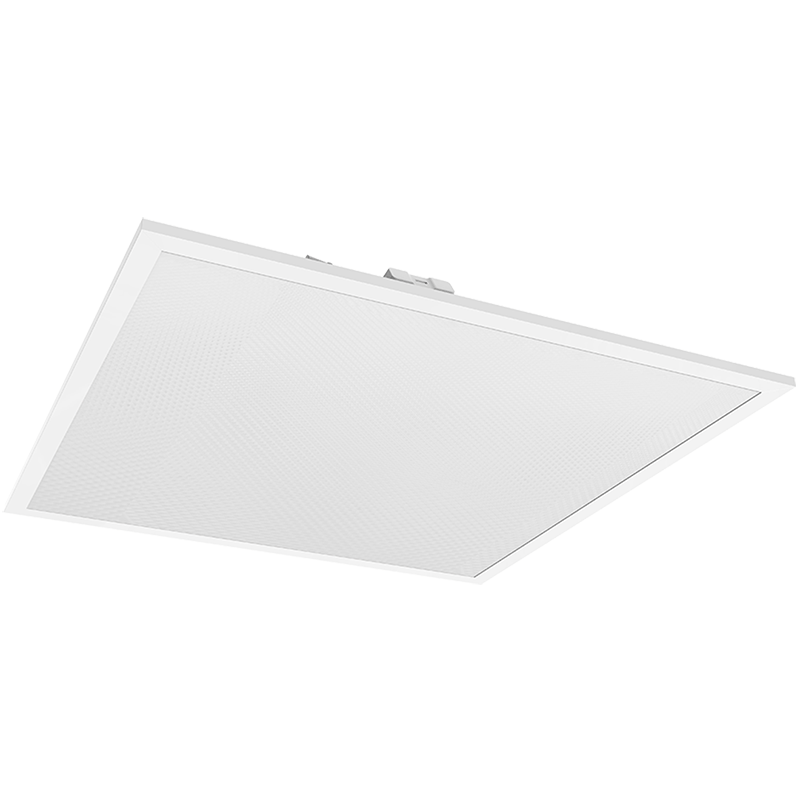

'Matrix G4 Panel Tri-Colour 40W 300x1200mm DALI White Haneco'

BRAND: Haneco
SKU: MATX0312-HDALI
$179.10 List price: $238.80
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 backlit panel features tri-colour CCT, 40W output and 300x1200mm size with DALI dimmable driver in white. Ideal for office ceiling grids.'

Alternatively Known As: Haneco MATX0312-HDALI, Haneco MATRIX TRI G4 DALI Panel, 1200mm x 300mm LED Panel, Backlit LED Ceiling Panel

Technical Specifications
  • Product Code: MATX0312-HDALI
  • SAP Code: 7000207
  • Rated Power: 40 W
  • Lumen Output: Up to 4700 lm
  • Efficacy: Up to 115 lm/W
  • Colour Temperature: 4000 K / 4500 K / 5000 K
  • Dimming: DALI dimmable
  • Input Voltage: 220–240 V AC, 50/60 Hz
  • Power Factor: Greater than 0.9
  • Colour Rendering Index: CRI greater than 90
  • Unified Glare Rating: UGR less than 19
  • Beam Angle: 90°
  • Ingress Protection: IP40
  • Electrical Classification: Class II
  • Body Material: Steel
  • Diffuser Material: PMMA
  • Driver: Remote driver
  • Connection: DC connector
  • Operating Ambient Temperature: -20°C to 40°C
  • Projected Lifespan: Greater than 85,000 hours at Ta 40°C, L80B10
  • Fascia Colour: White, RAL 9003
  • Mounting Type: Metric T-bar ceiling grid
  • Dimensions (H x L x W): 33mm x 1195mm x 295mm
  • Weight: 2.3 kg
Key Features
  • Tri-colour CCT selection from a single panel
  • DALI dimmable remote driver
  • Backlit design for even illumination
  • Low-glare performance with UGR less than 19
  • Flicker-free operation
  • Cyanosis compliant for suitable medical applications
  • High colour rendering with CRI greater than 90
  • Suitable for standard 300 x 1200mm ceiling grids
  • White steel body with PMMA diffuser
  • Designed for commercial, education, office and healthcare environments
Professional Installation Requirements
  • Installation and connection to 220–240 V mains and DALI control wiring must be completed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
  • Office ceiling grids
  • Classrooms and education facilities
  • Showrooms and retail areas
  • Boardrooms and meeting rooms
  • Commercial workspaces
  • Medical facilities requiring cyanosis-compliant lighting
  • Storage rooms and function areas
Standards & Compliance
  • AS/NZS 60598.1:2017
  • AS/NZS 60598.2.2:2016
  • AS/NZS 61347.1:2016
  • AS/NZS 61347.2.13:2018
  • AS CISPR 15:2017
  • Supplier Declaration of Conformity states compliance with the essential safety requirements of AS/NZS 3820.
Environmental Benefits
  • LED technology reduces energy consumption compared with fluorescent panel lighting
  • High efficacy of up to 115 lm/W supports lower operational energy use
  • Projected L80B10 lifespan above 85,000 hours can reduce replacement frequency and product waste
  • Steel body and aluminium/electronic components can be separated for recycling at end of service life
  • Tri-colour selection and DALI control support lighting optimisation and reduced unnecessary energy use
Warranty Information

Haneco specifies a 5-year product warranty for the MATRIX G4 range, generally provided as direct replacement for manufacturing defects subject to the applicable warranty terms.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
