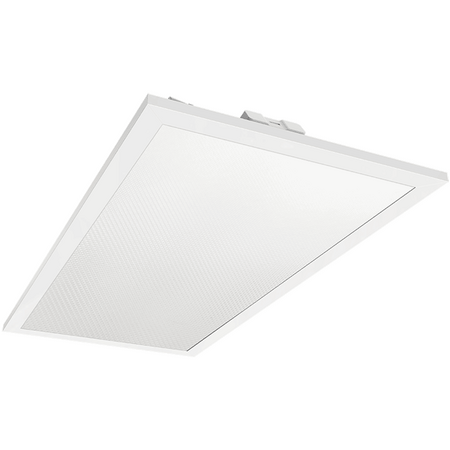

'Matrix G4 Panel Tri-Colour 40W 600x600mm 1-10V White Haneco'

BRAND: Haneco
SKU: MATX0606-H10VD
$176.80 List price: $235.70
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 backlit panel features tri-colour CCT, 40W output and 600x600mm size with 1-10V dimmable driver in white. Ideal for office ceiling grids.'

Alternatively Known As: Haneco Matrix G4 LED Panel, 600 x 600 LED Ceiling Panel, Tri-Colour LED Panel, Commercial LED Panel Light

Technical Specifications
  • Product Code: MATX0606-G4-H10VD
  • Rated Power: 40 W
  • Dimming: 1-10 V
  • Colour Temperature: Tri-colour selectable; 4000 K, 4500 K and 5000 K
  • Luminous Output: Up to approximately 4,100 lm
  • Beam Angle: 90°
  • Colour Rendering Index: CRI greater than 90
  • Ingress Protection: IP40
  • Input Voltage: 220-240 V AC, 50/60 Hz
  • Power Factor: Greater than 0.9
  • Driver: Remote flicker-free driver
  • Body Material: Steel
  • Diffuser Material: PMMA
  • Body Colour: White
  • UGR: Less than 19
  • Mounting Type: Metric T-bar ceiling grid
  • Dimensions (H x L x W): 33mm x 595mm x 595mm
  • Weight: 1.96 kg
Key Features
  • Tri-colour CCT selection from a single luminaire
  • 1-10 V dimmable driver for commercial lighting control systems
  • Low-glare UGR<19 performance for offices and education spaces
  • Flicker-free operation
  • High colour rendering with CRI greater than 90
  • Slim 33 mm panel profile
  • Designed for recessed installation in standard 600 x 600 mm ceiling grids
  • Suitable for office, education, showroom and healthcare environments
Professional Installation Requirements
  • Installation must be performed by a licensed or suitably qualified electrician in accordance with the manufacturer's instructions, local wiring requirements and applicable Australian standards. Ensure mains power is isolated before wiring or maintenance.
Applications
  • Office ceiling grids
  • Classrooms and education facilities
  • Showrooms and retail spaces
  • Boardrooms and meeting rooms
  • Commercial and institutional interiors
  • Medical and healthcare facilities
  • Function and storage areas
Standards & Compliance
  • AS/NZS 60598.1: Luminaires — General requirements and tests
  • AS/NZS 60598.2.1: Luminaires — Particular requirements for fixed general-purpose luminaires
Environmental Benefits
  • LED efficiency reduces electricity consumption compared with conventional fluorescent panels
  • Long projected service life can reduce replacement frequency and material waste
  • High-efficiency lighting can support Green Star building objectives
  • Aluminium and steel components are suitable for recycling at end of service life
  • Flicker-free, efficient operation supports lower operating energy demand
Warranty Information

Haneco Matrix G4 panels are covered by a 5-year product warranty against manufacturing defects, subject to Haneco warranty terms and correct installation.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
