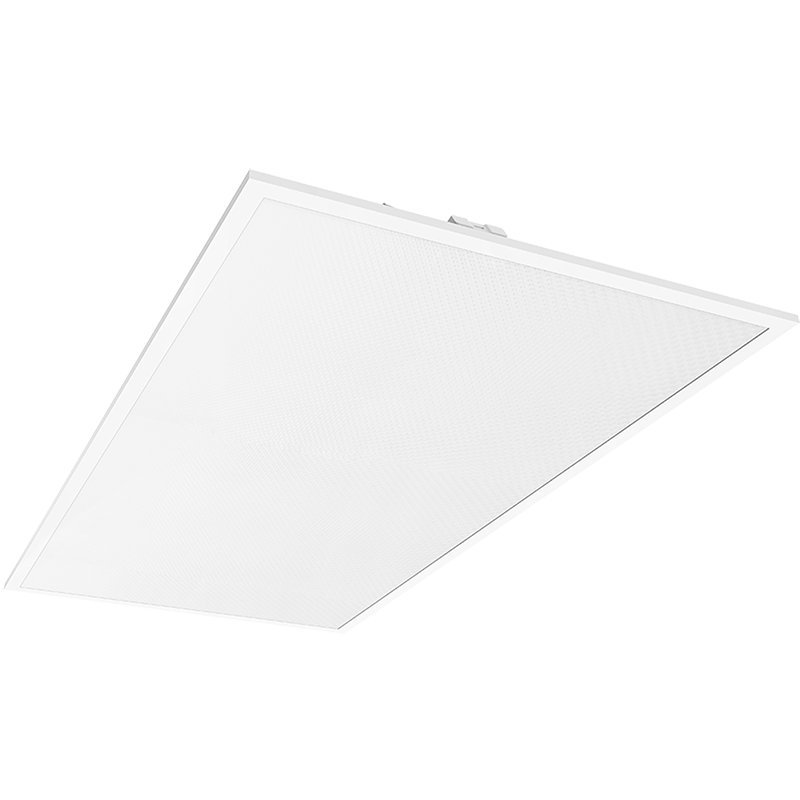

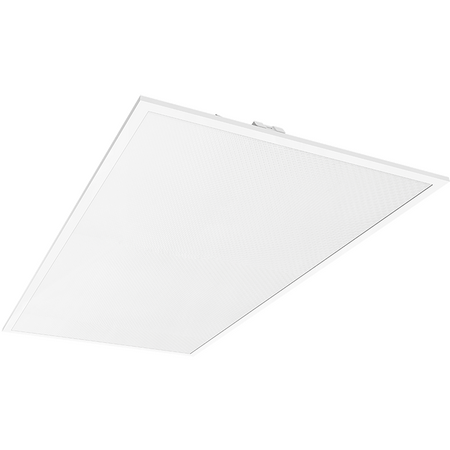

'Matrix G4 Panel Tri-Colour 45W 600x1200mm 1-10V White Haneco'

BRAND: Haneco
SKU: MATX0612-H10VD
$280.90 List price: $374.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 backlit panel features tri-colour CCT, 45W output and 600x1200mm size with 1-10V dimmable driver in white. Ideal for office ceiling grids.'

Alternatively Known As: Haneco MATX0612-G4-H10VD, MATRIX G4 1200mm LED Panel, Tri-CCT LED Ceiling Panel

Technical Specifications
  • Product Code: MATX0612-G4-H10VD
  • Rated Power: 45 W
  • Dimming Type: 1-10 V
  • Colour Temperature: Tri-colour selectable, 4000 K / 4500 K / 5000 K
  • Input Voltage: 220–240 V AC, 50/60 Hz
  • Beam Angle: 90°
  • Colour Rendering Index: CRI >90
  • Unified Glare Rating: UGR <19
  • Ingress Protection: IP40, front face
  • Insulation Class: Class II
  • Flicker: Flicker-free driver
  • Fascia Colour: White
  • Mounting Type: Metric T-bar ceiling grid
  • Light Source: Backlit LED
  • Driver: Remote driver
  • Dimensions (H x L x W): 33mm x 1195mm x 595mm
  • Weight: 4.76 kg
Key Features
  • Tri-colour CCT selection between 4000 K, 4500 K and 5000 K
  • 1-10 V dimmable driver for analogue lighting control systems
  • Low-glare performance with UGR below 19
  • High colour rendering with CRI greater than 90
  • Flicker-free operation
  • Backlit construction designed to improve heat dissipation and reduce yellowing
  • Cyanosis-compliant lighting suitable for selected healthcare applications
  • Suitable for office, education, showroom, meeting room and commercial ceiling-grid installations
Professional Installation Requirements
  • Installation must be performed by a licensed or suitably qualified electrician. Connect the 220–240 V supply and 1-10 V control wiring in accordance with the manufacturer's instructions and applicable Australian wiring requirements.
Applications
  • Office ceiling grids
  • Classrooms and education facilities
  • Showrooms and retail interiors
  • Boardrooms and meeting rooms
  • Commercial and institutional interiors
  • Medical facilities requiring suitable colour-rendering performance
Standards & Compliance
  • AS/NZS 60598.1:2017 – Luminaires, general requirements and tests
  • AS/NZS 60598.2.2:2016 – Particular requirements for recessed luminaires
  • AS/NZS 61347.1:2016 – Lamp controlgear, general and safety requirements
  • AS/NZS 61347.2.13:2018 – Particular requirements for DC or AC supplied electronic controlgear for LED modules
  • AS CISPR 15:2017 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting equipment
Environmental Benefits
  • 45 W LED technology provides energy-efficient illumination compared with conventional fluorescent panel systems
  • High-efficiency MATRIX G4 design can reduce lighting energy consumption and operating costs
  • Long projected service life helps reduce replacement frequency and waste
  • The MATRIX G4 range is promoted by Haneco as contributing to Green Star building sustainability requirements
Warranty Information

Haneco lists this MATRIX G4 model with a 5-year product warranty. Haneco's warranty provides replacement for manufacturing defects subject to its published terms, including installation by an authorised electrician and compliance with installation instructions. ([haneco.com.au](https://haneco.com.au/products/matrix-g4/))

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
