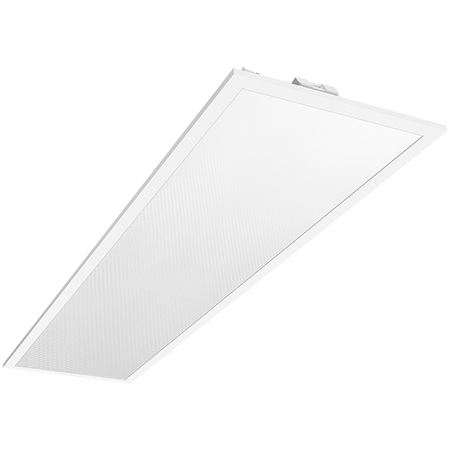

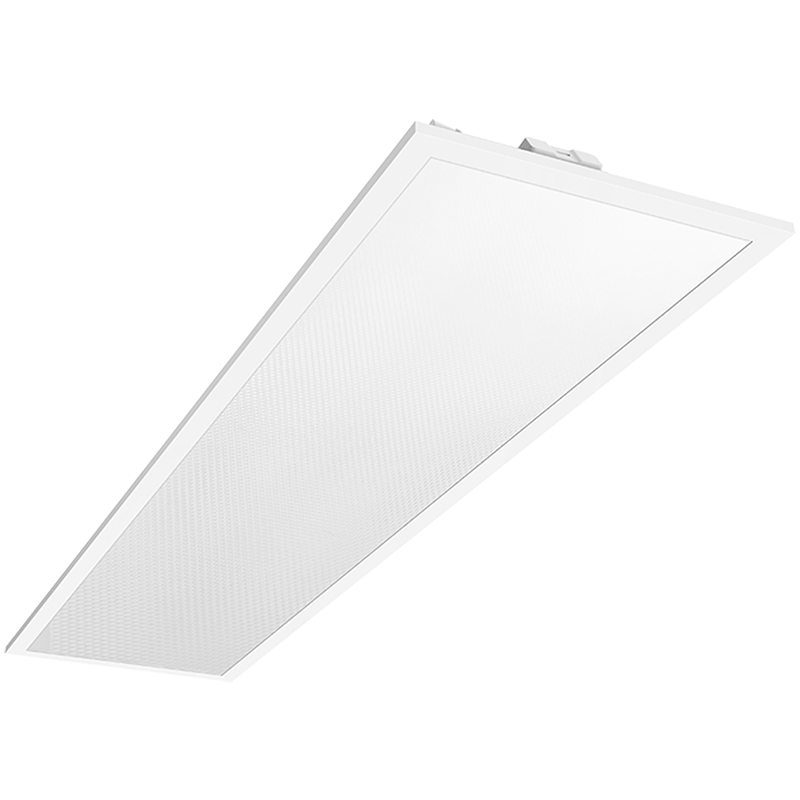

'Matrix G4 Tridonic DALI LED Panel 18W 300x600mm White Haneco'

BRAND: Haneco
SKU: MATX0306-TDALI
$217.90 List price: $290.60
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 LED backlit panel features 18W output, 300x600mm size and Tridonic DALI dimmable Tri-Colour CCT. Ideal for commercial fitouts.'

Alternatively Known As: Haneco Matrix G4 LED Backlit Panel, DALI LED Panel Light, 300 x 600mm LED Troffer

Technical Specifications
  • Power: 18W
  • Dimming: DALI
  • Colour Temperature: 4000K / 4500K / 5000K Tri-Colour CCT
  • Input Voltage: 220–240V AC, 50/60Hz
  • Beam Angle: 90°
  • Colour Rendering Index: CRI >90
  • Power Factor: >0.9
  • Ingress Protection: IP40
  • Electrical Classification: Class II
  • Body Material: Steel
  • Diffuser Material: PMMA
  • Body and Fascia Colour: White, RAL 9003
  • Mounting: Metric T-bar ceiling grid
  • Operating Temperature: -20°C to 45°C
  • Glare Rating: UGR <19
  • Lifespan: Up to 85,000 hours at Ta 40°C, L80B10
  • Connection: Remote driver with DC connector
  • Dimensions (H x L x W): 33mm x 595mm x 295mm
  • Weight: 1.1 kg
Key Features
  • DALI dimmable driver for commercial lighting control systems
  • Tri-Colour CCT selection between 4000K, 4500K and 5000K
  • Low-glare UGR <19 design suitable for workplaces and education areas
  • Backlit LED construction for even illumination
  • High colour rendering with CRI >90
  • Flicker-free operation
  • Slim 33mm panel profile
  • Suitable for metric T-bar ceiling grid installation
  • Remote driver design for accessible installation and maintenance
  • IP40-rated indoor luminaire
Professional Installation Requirements
  • Installation and connection to mains wiring must be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. DALI commissioning should be completed by a suitably qualified lighting controls technician where required.
Applications
  • Commercial office fitouts
  • Showrooms and retail spaces
  • Boardrooms and meeting rooms
  • Education facilities and classrooms
  • Medical and healthcare facilities
  • Storage and function areas
  • Indoor suspended ceiling grid installations
Standards & Compliance
  • AS/NZS 60598.1 for general requirements and tests for luminaires
Environmental Benefits
  • LED technology provides lower energy consumption than conventional fluorescent panel lighting
  • DALI dimming enables lighting levels to be reduced when full output is not required, supporting energy savings
  • Long operating life can reduce replacement frequency and associated material waste
  • Steel housing and PMMA diffuser support separation and recycling of material components at end of life
Warranty Information

Haneco provides a direct replacement warranty for lighting products, generally ranging from 3 to 5 years depending on the product and model. Warranty claims are subject to Haneco's current terms, proof of purchase and installation by an authorised electrician.

Available Now

Available through Haneco and authorised Australian electrical distributors.
