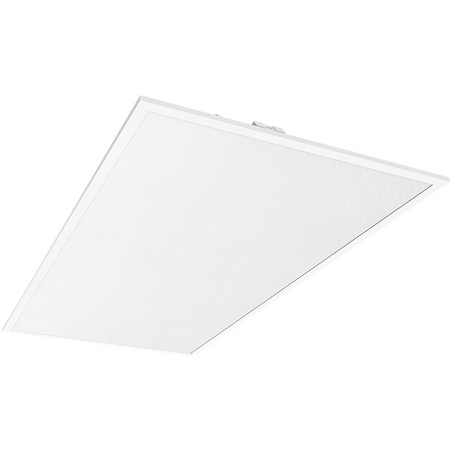

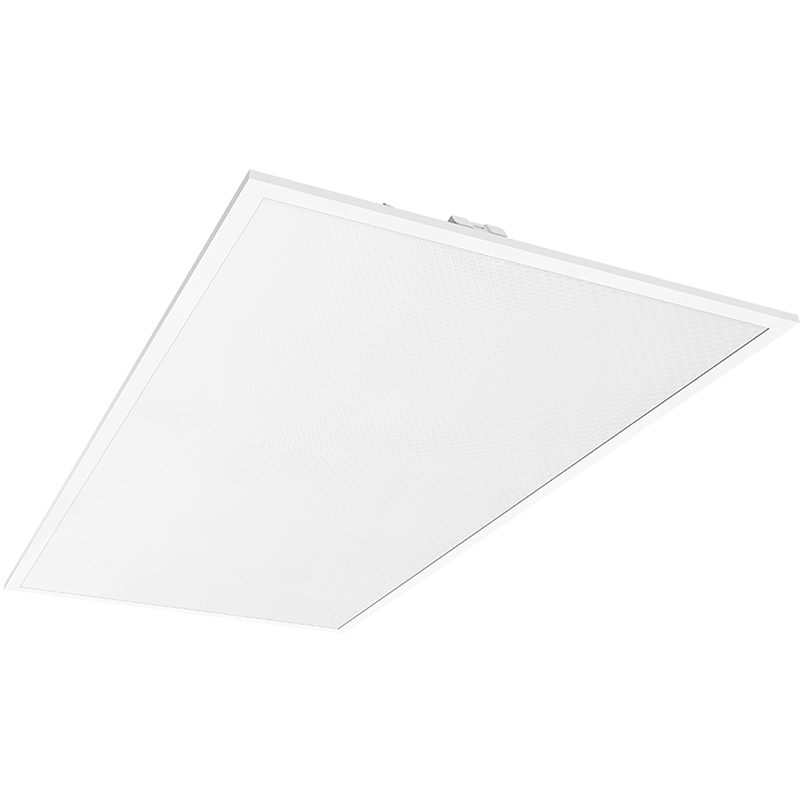

'Matrix G4 Tridonic DALI LED Panel 40W 600x1200mm White Haneco'

BRAND: Haneco
SKU: MATX0612-TDALI
$329.30 List price: $439.10
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
'Haneco Matrix G4 LED backlit panel features 40W output, 600x1200mm size and Tridonic DALI dimmable Tri-Colour CCT. Ideal for commercial fitouts.'

Alternatively Known As: Haneco Matrix G4 DALI LED Panel, 1200mm x 600mm LED Panel, Commercial LED Ceiling Panel, MATX0612-G4-TDALI

Technical Specifications
  • Product Code: MATX0612-G4-TDALI
  • Rated Power: 40 W
  • Dimming Type: Tridonic DALI
  • Colour Temperature: 4000 / 4500 / 5000 K tri-colour selectable
  • Input Voltage: 220-240 V AC, 50/60 Hz
  • Body Material: Steel
  • Diffuser Material: PMMA
  • Ingress Protection: IP40
  • Colour Rendering Index: >90
  • Unified Glare Rating: UGR<19
  • Beam Angle: 90°
  • Power Factor: >0.9
  • Electrical Classification: Class II
  • Driver: Remote DALI driver
  • Flicker-Free: Yes
  • Projected Lifespan: >85,000 hours at Ta 40°C, L80B10
  • Operating Ambient Temperature: -20°C to 40°C
  • Colour: White, RAL 9003
  • Mounting: Metric T-bar ceiling grid or compatible recessed, surface-mount and suspension accessories
  • Dimensions (H x L x W): 33mm x 1195mm x 595mm
  • Weight: 4.76 kg
Key Features
  • 40 W commercial LED panel designed for 600 x 1200mm ceiling grids
  • Tridonic DALI dimming for digitally controlled lighting installations
  • Tri-colour CCT selection for 4000 K, 4500 K or 5000 K operation
  • Low-glare UGR<19 optical performance
  • High colour rendering with CRI greater than 90
  • Cyanosis-compliant lighting suitable for medical and healthcare environments
  • Flicker-free operation to support visual comfort
  • Remote driver configuration for serviceable installation
  • Steel body with PMMA diffuser
  • Compatible with Haneco Matrix recessed frames, surface-mount frames and suspension kits
Professional Installation Requirements
  • Installation and mains electrical connection must be completed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian wiring requirements. DALI commissioning should be undertaken by a suitably qualified lighting controls installer where required.
Applications
  • Commercial offices and workspaces
  • Classrooms and education facilities
  • Medical and healthcare facilities
  • Showrooms and retail fitouts
  • Boardrooms and meeting rooms
  • Function areas and hospitality spaces
  • Storage rooms and manufacturing facilities
Standards & Compliance
  • AS/NZS 60598.1:2017 - Luminaires, general requirements and tests
  • AS/NZS 60598.2.1:2014 - Fixed general purpose luminaires
Environmental Benefits
  • LED technology provides high luminous efficacy compared with conventional fluorescent lighting, reducing energy consumption during operation
  • Projected service life exceeding 85,000 hours can reduce replacement frequency and associated material waste
  • Steel and PMMA components can be separated for appropriate recycling at end of service life
  • DALI dimming enables lighting levels to be adjusted to occupancy and task requirements, potentially reducing energy use
  • Flicker-free, low-glare optical performance supports efficient commercial lighting design without relying on over-lighting
Warranty Information

Haneco's Matrix G4 range is listed with a 5-year warranty. Haneco's standard product warranty provides replacement coverage for manufacturing defects, subject to its warranty terms and licensed installation requirements; labour, removal and reinstallation costs are generally excluded.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
